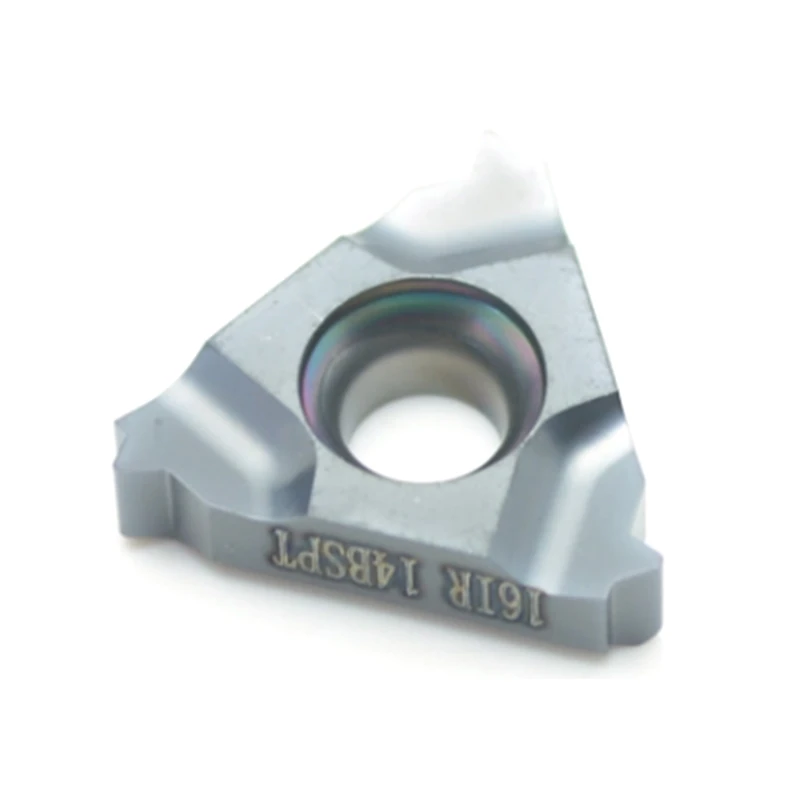

BSPT External Threading Inserts
Coating: TiAlN
Coating Type: Switzerland Balzers PVD Coating
Chip Breaker: without
Product Information:
01. Brand Name: CQ Cutool
02. Description: British Standard Pipe Thread Threading Carbide Inserts
03. ISO Symbol:
External Thread Inserts:16ER 11 BSPT
Internal Thread Inserts:16IR 11 BSPT
04. ANSI Symbol: Size:(I.C.=9.525mm)
05.Material: carbide inserts
06. Coating: TiAlN
07. Coating Type: Switzerland Balzers PVD Coating
08. Chip Breaker: without
09. Grade: CQ 5120
10. Features: Improved toughness and excellent wear resistance.
11.Hardness: 92HRA
12. Color: Blue
13. Application Range: For Semi-finishing/Roughing
14. Work Piece: For Steel, Alloy Steel Stainless Steel
15. Work Piece Hardness:<=HRC45
16. Available Tool Holder:
17. Place of Origin: China
18. Unit Type: Lot (10 Pieces/Lot)
19. Net Weight:0.07kg/Box
20. Gross Weight: 0.09kg/ Lot (10 Pieces)
21. Packing: 10 Pieces Packed In One Plastic Box /lot
22. Machining Types: Continuous Cutting
23. Min Order:1box/10pcs
Product Specification:

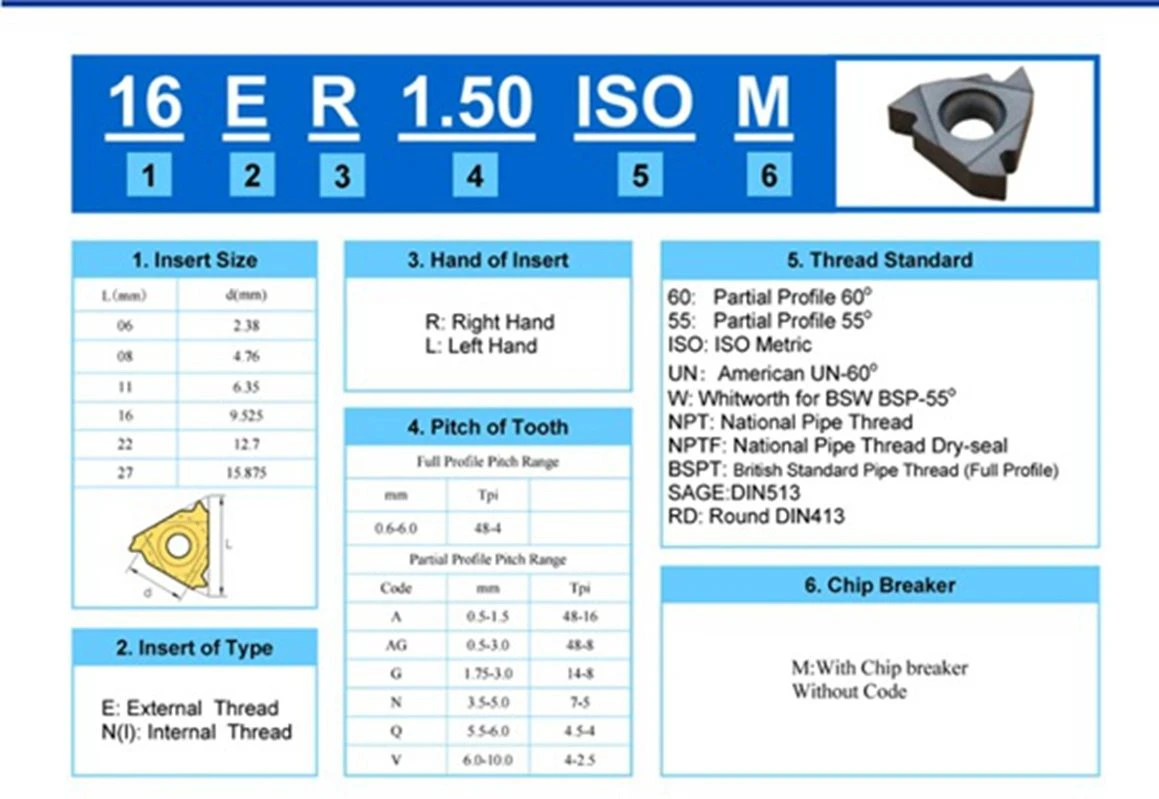

Threading Inserts Identification System

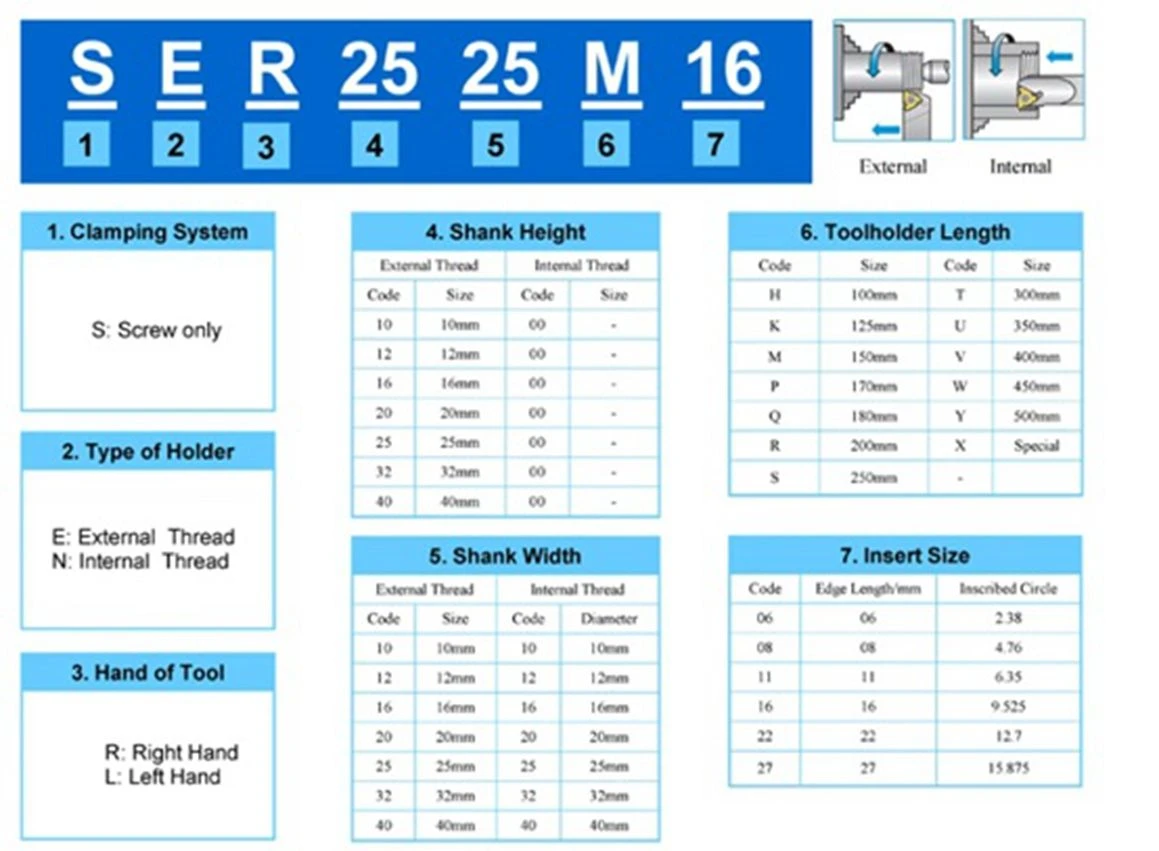

Threading Holder Identification System

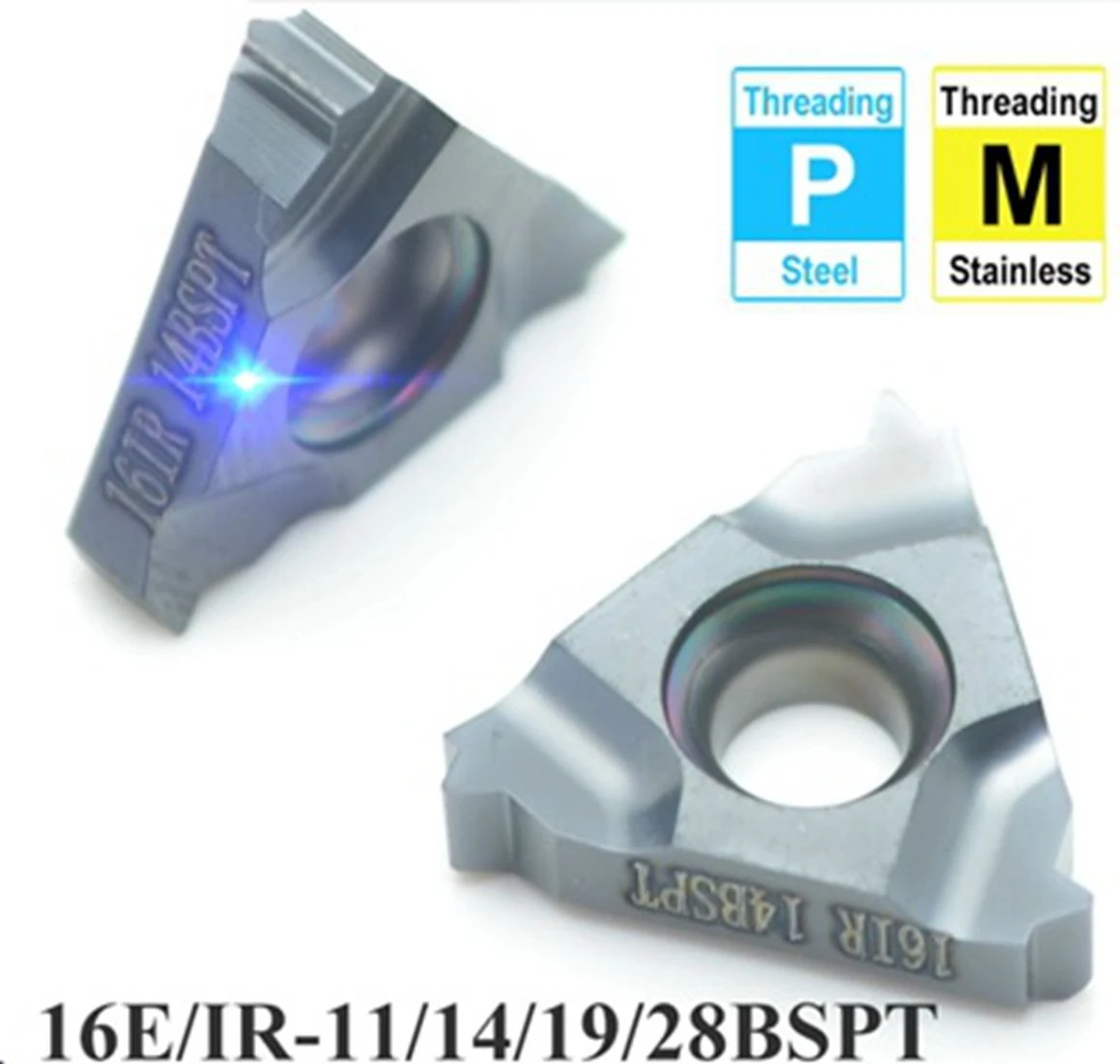

Products Show
Features & Benefits
CQ CUTOOL single point threading inserts for External Right Hand BSPT threads. CQ CUTOOL threading inserts are fully compatible with other manufacturers holders, CQ CUTOOL Size 2 = 11mm, Size 3 = 16mm, Size 4 = 22mm, Size 5 = 27mm.
● BSPT Threading Insert
● For External Right Hand Threads
● CQ CUTOOL(General Purpose) Grade
● An excellent choice for general purpose and steel
● CQ CUTOOL are the number 1 thread turning tool manufacturer
● CQ CUTOOL inserts are compatible with other manufacturers holders
Quality Control
There are many experts who have lots of experience in machining tools in CQ Cutools, meanwhile; high technology is also widely used in our company. In order to make sure that our products among the first level quality, we make good use of the world-famous equipment and the measuring facility. At the same time, our products are under the strict quality management system of ISO9001:2008. To ensure the stable quality of tools, we use the strict management for our supplier.
