Tool Holder

Your Professional Tool Holder Supplier

Our goal is to become your true partner in the field of center drill in China. Zhuzuan (Chongqing) CNC Tool Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of CNC cutting tools. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards.The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.

First 12 3 Last 1/3

Why Choose Us

Product application:

Our company mainly produces milling cutters, drills, reamers, boring cutters, cutting tools, etc. Our products are widely used in automobile, aviation, aerospace, mold, electronics, medical equipment and other industries.

Quality control:

Our company has passed the ISO9001 quality management system. From product design to delivery, each process is strictly carried out in accordance with the requirements of the quality management system to ensure product quality.

Our customization:

Our company can confirm drawings and communicate in advance about tool production design according to your special requirements or OEM & ODM tools, and can also provide a full set of tool processing solutions according to your various processing requirements.

Our services:

In the pre-sales stage, our team of experts will recommend the most suitable products according to the needs of customers and provide detailed technical consultation. During the sales period, we ensure timely delivery and provide installation guidance. For after-sales, we provide long-term technical support, warranty services and spare parts to help customers maximize the use of products and get reliable maintenance during use.

Advantages of Tool Holder

Increased accuracy:

Accuracy is crucial in many machining applications, such as aerospace and medical industries. Using tool holders can help you achieve higher levels of precision in your work.

Improved productivity:

In addition to increased accuracy, tool holders can also improve productivity. This is because they allow for faster tool changes, which means less time spent on setup and more time spent on actual machining. Compared to other tool-holding systems, tool holders have a higher clamping force, which allows for higher cutting speeds and feeds.

Reduced downtime:

Downtime is a major issue in any manufacturing operation. Using tool holders can help reduce downtime by minimizing tool breakage and wear. Tool holders absorb shock and vibration during machining, which helps prevent tool damage and extends tool life.

Versatility in machining:

Tool holders are compatible with a wide range of tools, including boring bars, drills, and end mills. This makes them a versatile option for machining operations that require multiple tool changes. Tool holders also come in various sizes, which allows for greater flexibility in choosing the right holder for your specific application.

Long-term cost savings:

While tool holders May have a higher upfront cost than other tool-holding systems, they can lead to long-term cost savings. This is because they reduce tool wear and breakage, which means less money is spent on replacing tools.

Specification of Tool Holder

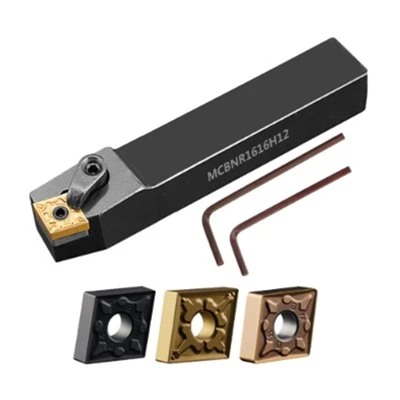

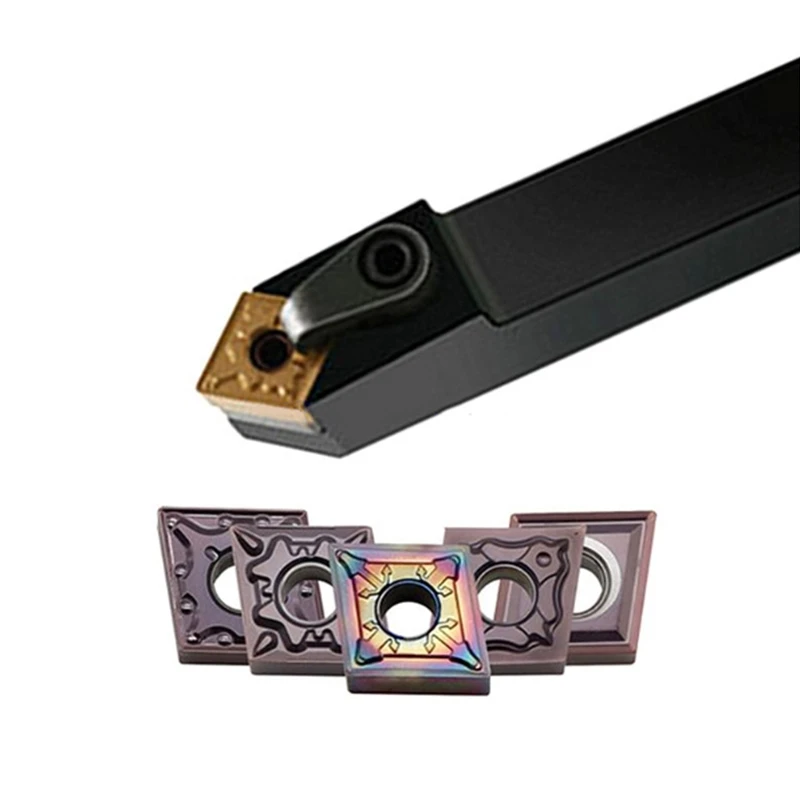

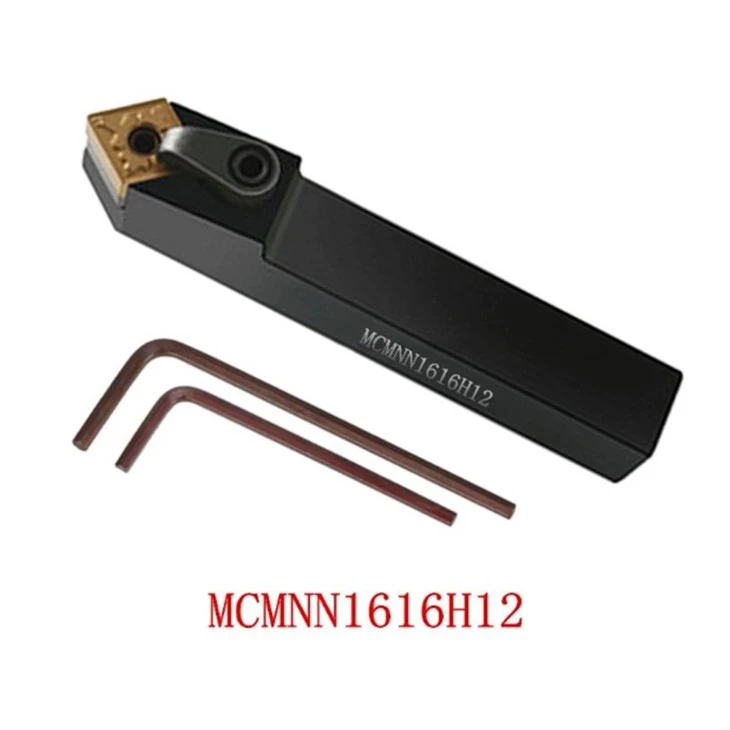

Usage	External Turning Tool
Use for	Steel, Stainless Steel, Cast Iron
Inserts	Turning Insert
Hardness	HRC42-45
Material	40-42CrMo

Types of Tool Holder

Side cutter holders: These toolholder’s purpose is to hold the cutting tools in place.

Saw blade holders: These holders keep saw-blades in place.

Boring heads: They hold boring bars in places as well as other types of tool holders.

Tapping chucks: These keep operations in threading running smooth and also keep tapping tools in place.

Blank adapters: Depending on tasks in machining these are customizable for various applications.

End mill holders: Essentially for milling, these holders keep milling tools in place.

Outer diameter (OD) and inner diameter (ID): These are universal holders that are interchangeable with many types of tools for cutting.

Collet chucks: The variety of collet chucks work to hold different machinery tooling in place.

Milling or drilling chucks: Specifically designed to hold the placement for tools associated with drilling and million operations.

Application of Tool Holder

Cnc machining:

Tool holders are widely used in cnc machining operations, where precision and stability are paramount. They allow for efficient tool changes, enhancing productivity.

Manufacturing:

In manufacturing environments, tool holders support various machines, including lathes, milling machines, and grinders, ensuring accurate machining processes.

Automotive industry:

The automotive industry relies on tool holders for precision machining of engine components, chassis parts, and transmission assemblies.

Aerospace industry:

In aerospace manufacturing, tool holders are crucial for producing lightweight and high-strength components that meet strict regulatory standards.

Construction and piling tools:

Tool holders are also essential in the production of piling tools, where they support various drilling and cutting tools used in foundation work.

Production Process of Tool Holder

Heat treatment:

Heat treatment processes, such as hardening and tempering, are often employed to enhance the strength and durability of tool holders. The material is heated to a specific temperature and then rapidly cooled. This process relieves stress and improves toughness.

Finishing:

After machining and heat treatment, tool holders undergo finishing processes to improve their surface quality and appearance. Ensures precision and smooth surfaces. Protective coatings (e.G., nitriding, anodizing) can enhance durability and corrosion resistance.

Design and engineering:

The first step in manufacturing tool holders involves designing the product using cad (computer-aided design) software. Ensuring the holder can accommodate specific tool sizes and types.

Material procurement:

Once the design is finalized, the next step is procuring the raw materials.

Machining:

The machining process involves various operations to shape and refine the tool holders. Used to create cylindrical shapes and features.

Quality Control of Tool Holder

Quality control is crucial in the manufacturing process. Each tool holder is subjected to rigorous testing to ensure it meets specifications. Ensures that the holder meets design specifications. Checks the holder’s performance with the intended tools.

Customizable Tool Holder

Tool holders are an integral part of the machining process, allowing for the efficient and precise execution of various operations. We specialize in customizing different types of tool holders to fit your machining needs. At our cnc machining services, we offer various custom options for tool holders, from the material used to the holder's size, shape, and design. Whether you are looking for a small batch order or production tool holders, our team is ready to help you find the perfect solution.

Packing and Shipping of Tool Holder

Packing	Plastic Box
Shipping	Shipped by road, sea, rail

FAQ

Q: What is the name of the tool holder?

A: Mechanical tool holders are used in a variety of machining operations, including milling, drilling, turning, and boring. They are available in different types, including collets, end mill holders, shell mill holders, and tapping holders.

Q: What is multiple tool holder?

A: Static and driven multiple toolholders to multiply the available tools on turning centers with Y axis. The enhancement of available cutting tools allows the production of more complex and a more comprehensive range of work pieces on a turning center without changing the machine set-up.

Q: What is a lathe tool holder?

A: The tool holder is an attachment system for the cutting tools used when machining on a lathe, or any other machine tool. That is, tool holders are used to attach a cutting tool during the machining process. They also facilitate torque transfer from the lathe spindle to the cutting tool.

Q: What is the anatomy of the tool holder?

A: Overall, the toolholder body is the main section of the tool holder and typically includes features such as the collet or chuck, the taper, and the flange. It may also include other features such as coolant channels, balancing cuts, or vibration-damping mechanisms.

Q: What is a live tool holder?

A: At its core, a live tool holder is a dynamic device that allows for rotational movement in CNC lathes, enhancing their capabilities beyond traditional operations.

Q: What is the material of tool holder?

A: Steel is a popular choice for manufacturing tool holders in CNC machines. Carbide is a composite material made of tungsten carbide particles bound together with a metal binder.

Q: How does a tool holder work?

A: A tool holder is a device used to securely hold a cutting tool or drill bit in place during machining operations. It is typically mounted on a machine tool, such as a lathe or milling machine, and is designed to provide precise positioning and stability for the tool.

Q: What steel is used for tool holder?

A: DIN 42CrMo4 or AISI 4140 steel plates are popular used for lather turning tool holder. The more troublesome problem is hard to find a reliable supplier of 4140 steel plate. Often, suppliers either lack sufficient inventory or provide materials with inconsistent performance.

Q: Which material is used to make a raw tool holder?

A: Tungsten carbide–cobalt and Fe–5Cr–Mo–V aircraft steel were found as the best materials for the tool holder production. The obtained results are found to be rather satisfactory and can be used in design stage of hard machining operations. Schematic image of the tool holder.

We're professional tool holder manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale tool holder made in China here and get quotation from our factory. Good service and low price are available.
