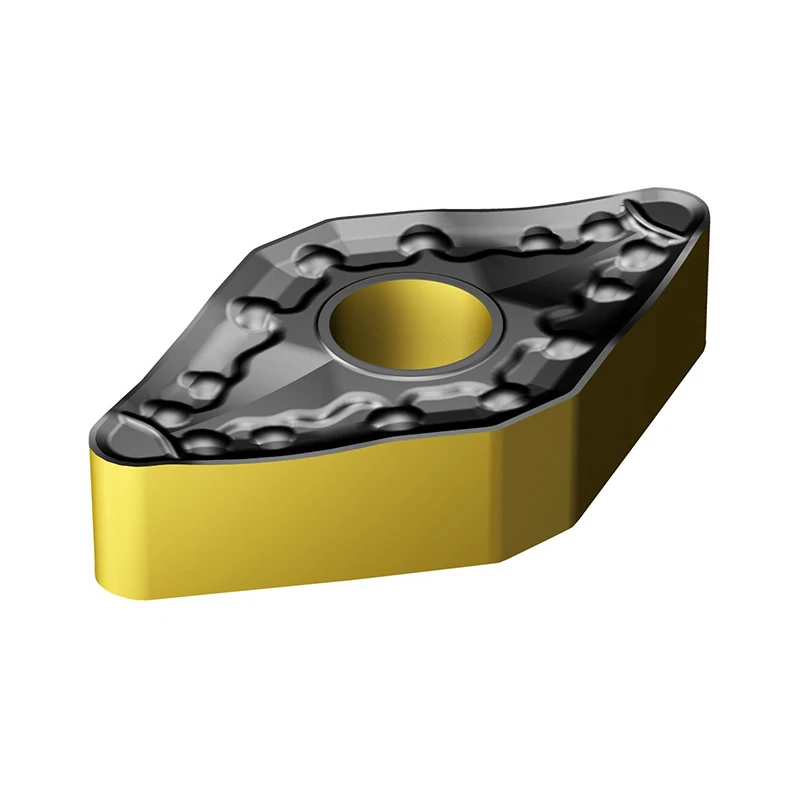

DNMM Carbide Inserts For Stainless Steel

DNMM Turning Inserts feature a hard carbide substrate with a hardy CVD TiCN+Al2O3+TiN coating for excellent heat and wear resistance in roughing applications.

Features and Benefits
• Hard carbide substrate for increased hardness
• CVD TiCN+Al2O3+TiN coating for excellent heat and wear resistance
• Suitable for roughing applications

Typical Applications
• Roughing
• Turning

Choosing the right DNMM (Diamond Negative-rake with Molded-in Chipbreaker, Medium to High Cutting Speed) carbide inserts for stainless steel involves considering various factors to ensure optimal performance and tool life. Here's a guide on how to choose DNMM carbide inserts for stainless steel machining:

1.Insert Grade:

● Select a carbide insert grade specifically designed for stainless steel. Look for grades with high wear resistance, toughness, and resistance to built-up edge (BUE) formation. Common grades for stainless steel include those with coatings like TiN, TiCN, and Al2O3.

2.Coating:

● Consider the coating on the carbide insert. Coatings enhance the tool's performance by improving wear resistance and reducing friction. ● For stainless steel, coatings like TiN, TiCN, or Al2O3 are commonly used.

3.Geometry:

● Pay attention to the insert geometry. The rake angle, clearance angle, and chipbreaker design play crucial roles in optimizing cutting forces, chip control, and surface finish. Choose geometries suitable for stainless steel machining.

4.Chipbreaker Design:

● Check the chipbreaker design, as it significantly influences chip control. A well-designed chipbreaker helps in breaking and evacuating chips effectively, preventing issues like chip nesting and improving overall machining efficiency.

5.Surface Finish Requirements:

● Consider the required surface finish for your stainless steel application. Some DNMM inserts may be designed for finishing operations, ensuring smooth surfaces without defects.

6.Cutting Parameters:

● Adjust cutting parameters based on the specific stainless steel grade being machined. Stainless steel has work-hardening characteristics, so optimizing cutting speed, feed rate, and depth of cut is crucial to avoid excessive tool wear.

7.Coolant Considerations:

● Evaluate whether the machining process requires wet or dry conditions. Some DNMM carbide inserts are designed for both wet and dry machining. Consider the cooling and lubrication needs of stainless steel machining.

8.Manufacturer's Recommendations:

● Always refer to the manufacturer's recommendations and guidelines for DNMM carbide inserts in stainless steel applications. Manufacturers provide detailed information on insert grades, coatings, and geometries optimized for specific materials and conditions.

9.Tool Life and Cost Considerations:

● Balance tool life and cost. While high-performance inserts may have longer tool life, they may come at a higher cost. Consider the cost-effectiveness of the inserts based on the expected tool life and machining requirements.

10.User Feedback and Application Experience:

● If available, consider feedback from other machinists who have used DNMM carbide inserts for stainless steel. Application-specific experiences can provide valuable insights into real-world performance.

11.Trial and Testing:

● Conduct trials and testing in your specific machining environment. This can help verify the performance of the chosen DNMM carbide inserts under your unique conditions.

● Remember that the choice of DNMM carbide inserts for stainless steel may vary based on the specific requirements of your machining application, the grade of stainless steel, and the machining conditions. Regularly monitor tool wear and performance, and be open to adjusting parameters based on feedback from the machining process.
