Turning Inserts for Cast Iron

Product Name: Turning Inserts for Cast Iron

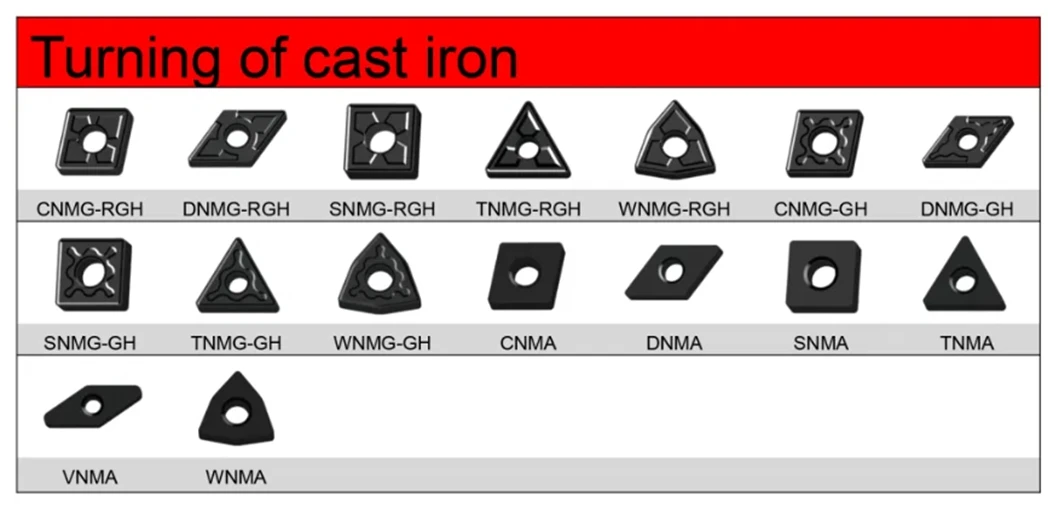

Model Number: CNMG-RGH DNMG-RGH SNMG-RGH TNMG-RGH WNMG-RGH CNMG-GH DNMG-GH SNMG-GH TNMG-GH WNMG-GH CNMA DNMA SNMA TNMA VAMA WNMA

1. Brand name: CQ CUTOOL

2. Place of origin: Chongqing of China

3. Raw material: Virgin carbide material

4. Hardness: for 45-55HRC

5. Type: Turning and boring holes

6. Coating: PVD coating

7 Minimum Order Quantity(MOQ): 10pcs/1 box

8. Controlling mode: Turning machine, CNC lathe

9. Work material: Cast iron, Pig iron, gray cast iron

1. 55° Rhombic insert

2. Single sided

3. Positive rake

4. 7° side clearance

5. 7mm or 11mm cutting edges

6. Available in a range of radius for finishing, general purpose and rough turning

1. Q: What type of inserts are best for turning cast iron?

A: Inserts made of materials like carbide with special coatings (such as TiN or TiAlN) are commonly used for turning cast iron. Cubic Boron Nitride (CBN) inserts are also excellent for high-speed, high-precision cast iron machining.

2. Q: What insert grade is suitable for cast iron machining?

A: Inserts with grades specifically designed for cast iron (often denoted by a C in the ISO classification, e.g., ISO C6) provide excellent performance. These grades are optimized for the abrasive nature of cast iron.

3. Q: How does insert geometry affect turning cast iron?

A: Positive rake angles and sharp edges are often preferred for cast iron turning. Positive rake angles reduce cutting forces, and sharp edges ensure efficient material removal. However, the choice of geometry can also depend on the specific type of cast iron and the machining operation.

4. Q: Can I use the same insert for roughing and finishing cast iron?

A: Depending on the insert's design and grade, some inserts can handle both roughing and finishing operations. However, for high-precision finishing, dedicated inserts with polished surfaces and sharp edges are often recommended.

Zhuzhuan (Chongqing) CNC Tool Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of CNC cutting tools. We cooperate with ZCC.CT and establish a long- term cooperation friendship. Our company was established in 2017 and is located in Shuangfu Industrial Park, Jiangjin District, Chongqing city. The environment is elegant and the transportation is convenient. Our company has advanced production equipment and an experienced technical team, committed to providing customers with high-quality CNC tool products and high-quality after-sales service.

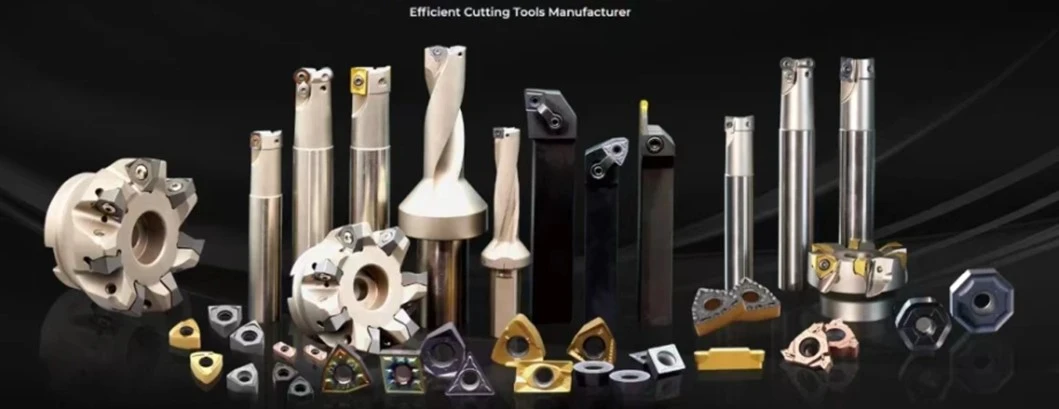

We mainly produce milling cutters, drill bits, reamers, boring cutters, cutting tools, etc. Our products are widely used in industries such as automobiles, aviation, aerospace, molds, electronics, and medical devices and the same time providing customers with efficient and stable processing solutions.

About more details about the turning inserts for cast iron, pls feel free to contact us.
