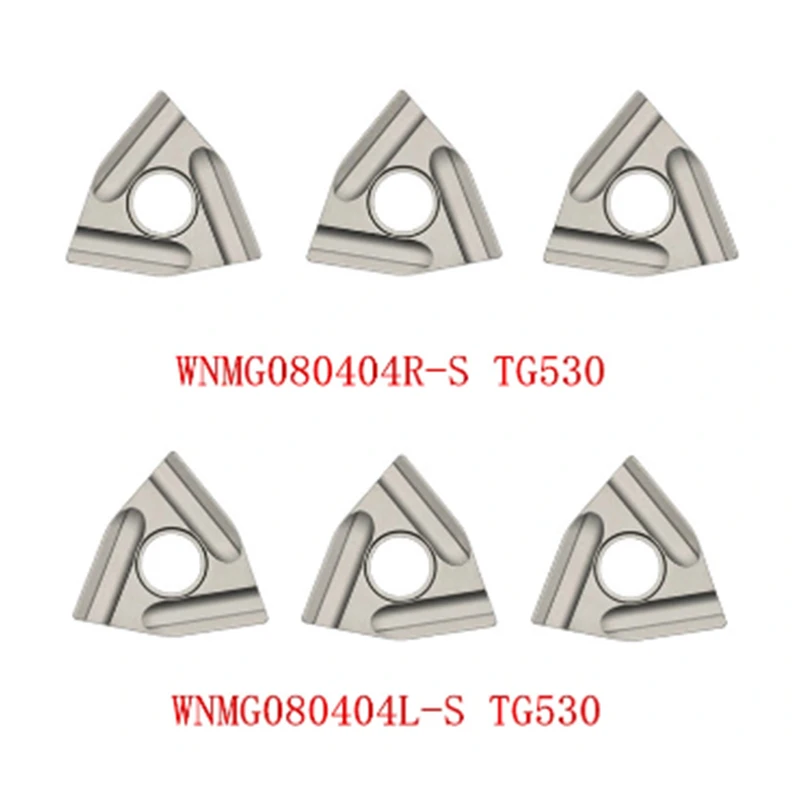

WNMG Carbide Inserts For Stainless Steel

For cutting and parting turning tool holders, our tool holders are strong, reduce chatter and vibration, increase machining
speed, and improve process safety. Significantly increase productivity for you to shorten overhang.

1, Product: Long tool life, favorable reduction of tool holder consumption and cost placement. Also avoid defects caused by
welding and grinding high temperature.
2,Value: high quality and low price; increase efficiency, greatly reduce downtime and tool change time.
3,Purpose: Customer first is our purpose, and we provide the best one-stop service
4,Convenience: we accept Western Union, T/T, PayPal
5,Cooperation: We reply to inquiries promptly with our professional technology and rich experience in production and export
6,Value-added service: after-sales service, on-time delivery

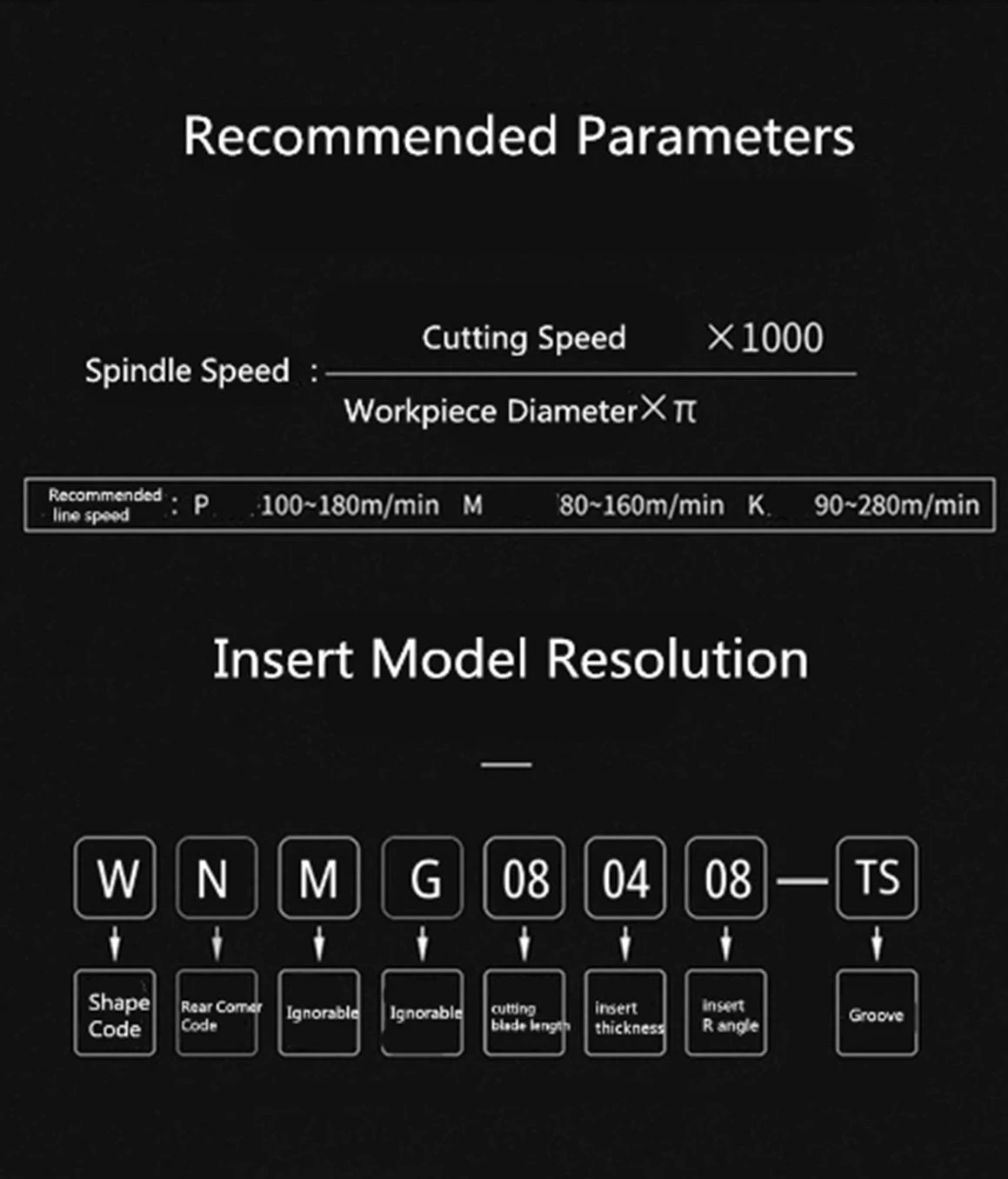

The WNMG (W designates rhombic shape, N signifies 55-degree diamond shape, M represents negative rake angle, and G is for ground periphery) insert is a type of carbide insert commonly used in turning operations. These inserts are widely employed in metalworking processes, particularly for machining applications on lathes and turning centers. Here are some key aspects of the application of WNMG inserts:

1.Turning Operations:

● WNMG inserts are primarily designed for external turning applications on lathes.

They are suitable for machining a variety of materials, including steels, stainless steels, cast irons, and non-ferrous metals.

2. Geometry:

● The rhombic shape of the WNMG insert allows for multiple cutting edges, providing increased tool life and efficiency.

● The 55-degree diamond shape contributes to versatility, enabling both roughing and finishing operations.

3.Negative Rake Angle:

● The negative rake angle of the WNMG insert improves tool strength and is well-suited for machining materials with high cutting forces.

4.Chip Control:

● The design of WNMG inserts is effective in controlling chips during the machining process, promoting better chip evacuation and reducing the risk of chip entanglement.

5.Materials:

● WNMG inserts are suitable for various materials, from softer materials like aluminum to harder materials like hardened steel.

● Different grades of carbide inserts can be chosen based on the material being machined.

6.Machining Conditions:

● WNMG inserts are versatile and can be used in both roughing and finishing operations.

● The insert can be applied at different cutting speeds, feed rates, and depths of cut based on the specific requirements of the machining process.

7. Coolant Usage:

● Depending on the material being machined and the specific application, the use of cutting fluids or coolants may be beneficial to enhance tool life and improve surface finish.

8.Machine Compatibility:

● WNMG inserts are commonly used in turning operations on CNC lathes and turning centers.

● The insert design is standardized, making it compatible with a wide range of toolholders.

● It's important to note that the specific application details may vary based on the material being machined, the machine tool's capabilities, and the desired outcome. Machinists and manufacturers often refer to cutting tool catalogs and guidelines provided by insert manufacturers for optimal tool selection and usage.
