ZTHS0504-MG Single Head Grooving Carbide Turning Inserts

Product name: ZTHS0504-MG Single Head Grooving Carbide Turning Inserts

Coating: Coating

Application: Turning Machine

Material: Cemented Carbide

Price Term: EXW, Fob

Workpiece: Steel / Stainless Steel / Iron

Customized Support: OEM, ODM

Certificate: ISO9001

Port of Loading: Shenzhen, Guangzhou, Shanghai

Trademark: CQ CUTOOL

Transport Package: 10PCS/Plastic Box, Carton Box Outside

Origin: Chongqing, China

Product Description

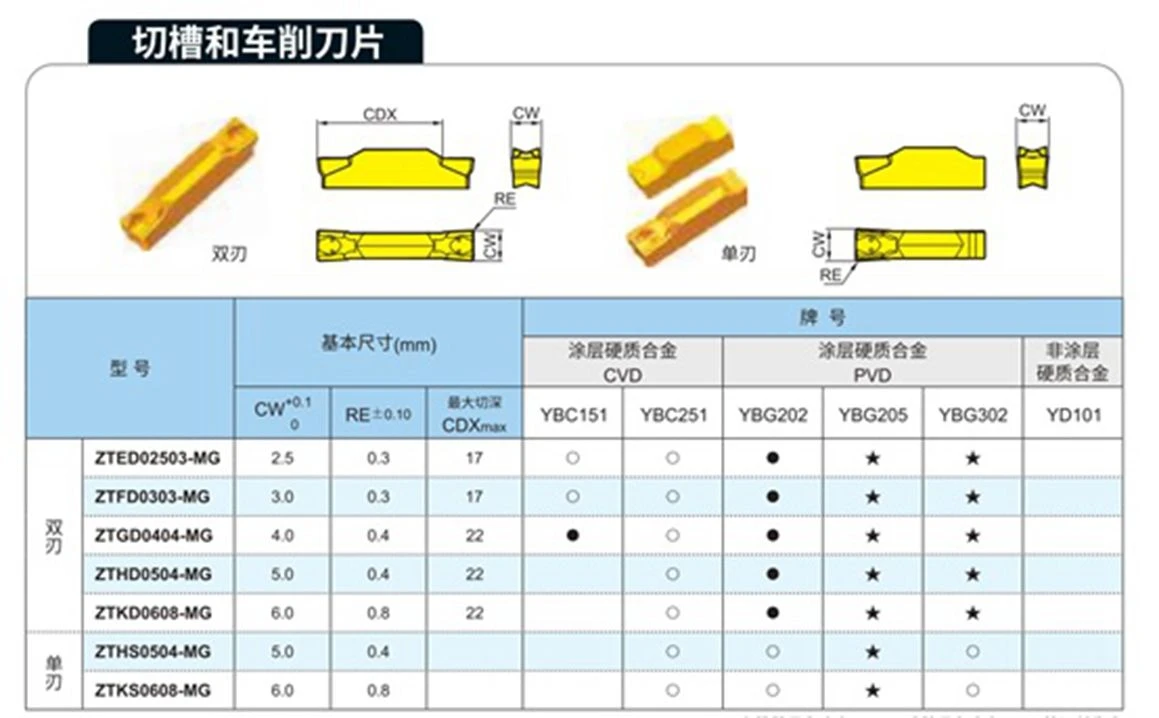

ISO Type: ZTHS0504
Chipbreaker: MG (round and curved edge for general-cutting purpose)
Grade: YBG202 (nc-TiAlN nano PVD coating on high strength and toughness ultrafine-grained carbide, a Nano Coating grade)

Workpiece Material (ISO): Steel (P10-P25), Stainless Steel (M15-M30)

The product does not stick to the knife, and the chip removal is smooth.

The cutter bar is made of high quality 40Cr material with high hardness, wear resistance and long service life.

The cutter bar is matched with our special blade to greatly improve the work efficiency.

Application: This single-edged insert with hard PVD coating has round and curved cutting edges, and is an excellent choice for grooving and turning of steels and stainless steels.

The "ZTHS0504-MG" single head grooving carbide turning inserts are cutting tools specifically designed for grooving operations in machining processes, particularly in turning operations. Here's a breakdown of the components of the code and their implications:

1.ZTHS0504: This alphanumeric code likely contains specific information about the insert's dimensions, geometry, and other technical specifications. While the exact meaning of each character may vary depending on the manufacturer, it typically includes details such as the insert's width, length, thickness, corner radius, and angle of the cutting edge.

2.-MG: The "-MG" designation could indicate the coating or surface treatment applied to the insert. Common coatings for carbide inserts include various types of coatings like TiN (Titanium Nitride), TiCN (Titanium Carbonitride), TiAlN (Titanium Aluminum Nitride), or other proprietary coatings designed to enhance wear resistance, reduce friction, and improve tool life.

In summary, the "ZTHS0504-MG" single head grooving carbide turning inserts are designed for grooving operations in turning processes. They are likely engineered to provide precise cuts, efficient chip evacuation, and extended tool life, thanks to their carbide construction and the specific characteristics denoted by the alphanumeric code and the "-MG" coating designation. These inserts are commonly used in manufacturing and metalworking industries for machining operations that require grooves to be cut into workpieces with high precision and reliability.

Can you produce according to the samples?

Yes, we can produce as your samples or technical drawings. We can make molds and fixtures for special models.

Are you a factory?

Yes, we are a CNC cutting tools company that integrates industry and trade, we are a leading manufacturer and supplier of high-quality cutting tools for CNC (Computer Numerical Control) machines. Our factory is equipped with state-of-the-art technology and a skilled workforce to deliver precision tools that meet the diverse needs of our customers.

Your products range?

We offer a wide range of cutting tools designed to cater to various machining applications. Our product portfolio includes:

1.End Mills: We manufacture a variety of end mills, including square end mills, ball nose end mills, corner radius end mills, and roughing end mills. These tools are essential for milling operations and provide excellent cutting performance and durability.

2.Drills: Our drill selection includes twist drills, center drills, spotting drills, and step drills. These tools are designed to create holes with precision and efficiency in different materials.

3.Inserts: We produce a comprehensive range of inserts, such as turning inserts, milling inserts, and threading inserts. These inserts are made from high-quality materials and are known for their excellent cutting performance and long tool life.

4.Reamers: Our reamers are used for enlarging and finishing existing holes to precise dimensions. We offer a variety of reamers, including hand reamers, machine reamers, and adjustable reamers.

5.Tool Holders: We provide a wide selection of tool holders, including collet chucks, end mill holders, and drill chucks. These holders ensure secure tool clamping and accurate machining results.
