Parting and Grooving Tool Holder

Product name: External Parting and Grooving Tools Holders

Model NO.: RL0001

Application: Grinding Machine, Milling Machine, Lathe Precision: High Precision

Feature: High Performance Cutting

Core Components: Carbide Insert

Advantage: Wear Resistance

Usage: External Turning Tool

Tool Height: 16-32mm

Type: Lathe Turning Tool

Material: Carbon Steel

Parting and grooving tool holder made for cutting narrow and deep slots. Our tool holder with good strength, it reduces chatter and vibration, increases the machining rate, and improves process security. You can also significantly increase productivity for shorter overhangs.

1. Long tool life, and the defects caused by high temperature of welding and grinding are avoided.
2. High production efficiency, can greatly reduce tht downtime and tool change time.
3. It is advantageous to reduce the cost of cutting tools, because of the long service life of the tool holder, which greatly reduced the consumption and cost of the tool holder.

External parting and grooving tools holders are specialized cutting tools used in machining processes to create external grooves, slots, and parting-off operations on a workpiece. These tools holders come with specific features designed to enhance efficiency, precision, and tool life. Here are the key features of external parting and grooving tools holders:

1.Tool Material: External parting and grooving tool holders are usually made from high-quality materials such as carbide, high-speed steel (HSS), or cermet, ensuring durability and resistance to wear.

2.Insert Compatibility: These holders are designed to accommodate specific inserts that are used for cutting operations. Inserts are available in various shapes and sizes for different cutting requirements.

3.Clamping Mechanism: They feature a clamping mechanism, often a screw or a clamp, to securely hold the cutting insert in place. This ensures stability during machining operations.

4.Coolant Channels: Many holders have built-in coolant channels to facilitate efficient chip evacuation and cooling during the cutting process. Proper cooling is essential to prevent tool wear and maintain dimensional accuracy.

5.Adjustability: Some holders allow for axial and radial adjustments, enabling precise setting of the cutting depth and width. This adjustability ensures accurate machining and the ability to achieve tight tolerances.

6.Rigidity: External parting and grooving tool holders are designed to be rigid and stable, reducing vibrations during cutting. Vibration can lead to poor surface finish and tool wear, so a stable holder is crucial for high-quality machining.

7.Modularity: Some holders come with modular designs, allowing users to replace or change components easily. This modularity enhances flexibility and cost-effectiveness, as users can replace inserts or other parts without replacing the entire holder.

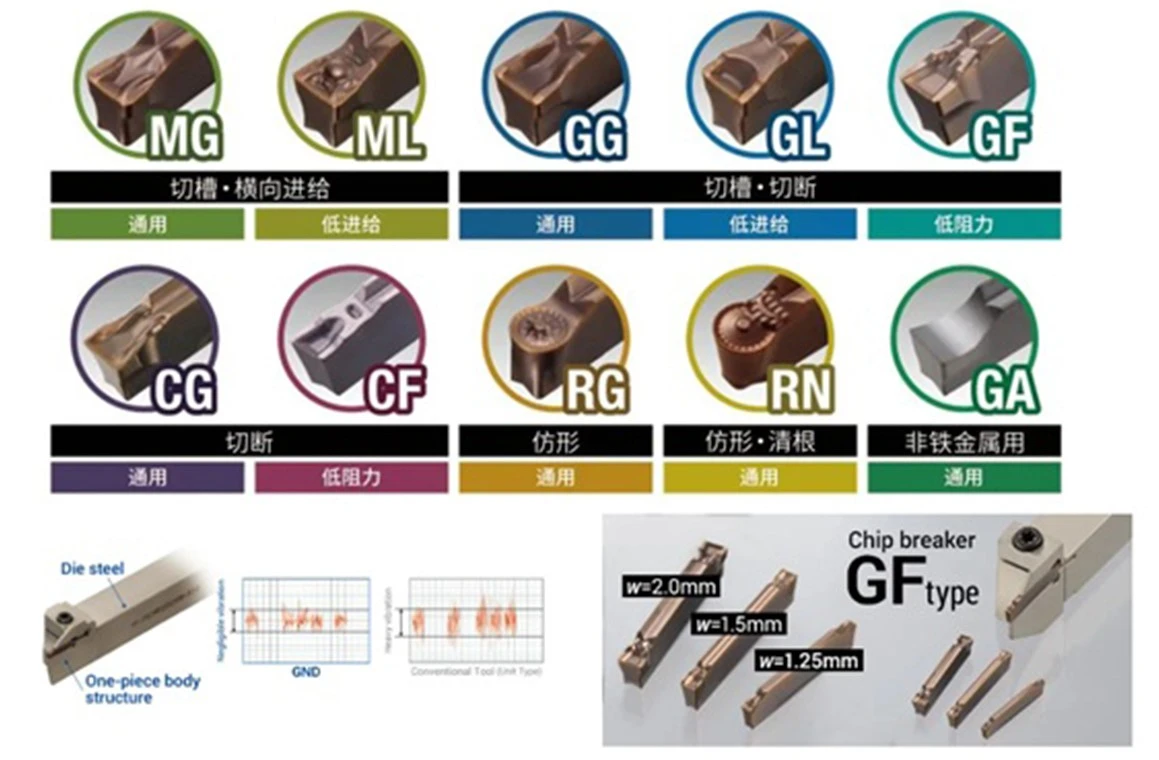

8.Chip Breakers: Certain inserts and holders have specialized chip breakers that help in breaking and evacuating chips effectively. Chip control is important for preventing chip jamming and ensuring smooth cutting operations.

9.Coating: Inserts used with these holders often have coatings such as TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) to increase wear resistance and tool life.

10Compatibility with Machines: External parting and grooving tool holders are manufactured in various sizes and configurations to be compatible with different types of CNC machines and turning centers.

11.Ease of Replacement: The holders are designed for easy replacement of inserts. This feature reduces downtime as operators can quickly change worn-out inserts without extensive adjustments.

12.Manufacturer-specific Designs: Different manufacturers may incorporate unique features or proprietary technologies into their tool holders, enhancing performance and tool life based on their design innovations.

When selecting external parting and grooving tool holders, it's important to consider the specific machining requirements, material being machined, and compatibility with existing equipment to ensure optimal performance and efficiency in the machining process.
