CNGA120408 Turning Inserts For PCBN And PCD

Model NO.：4T-CNGA120408 BNC700

Material：CBN PCD Ceramic

Hardness: Below HRC55-65

Type：Indexable Turning Tools

Application: Metal Cutting Machine, Metal Processing Machinery Parts

Machining：Turning, Milling

Production Capacity：20000pie/Week

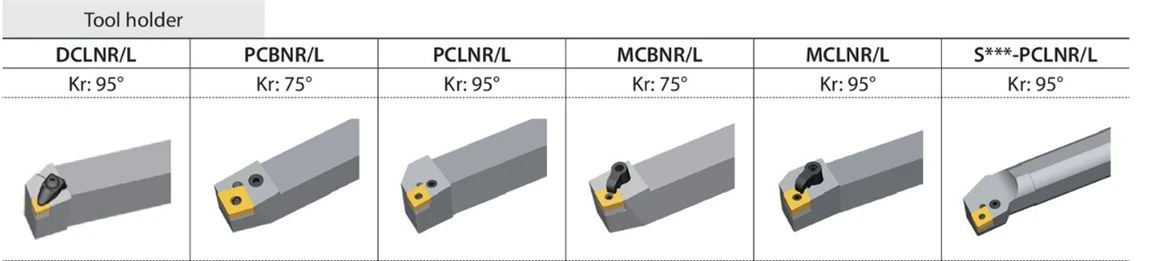

Tool Holders: DCLNR/L, PCBNR/L, PCLNR/L, MCBNR/L,MCLNR/L,S***-PCLNR/L

CNGA120408 Carbide indexable Inserts are one of our main products. We produce all ISO standard inserts and also non-standard inserts according to customer's sample and drawing. Our products include steel cutting inserts, cast iron cutting inserts, stainless steel cutting inserts, Aluminum cutting inserts, etc.

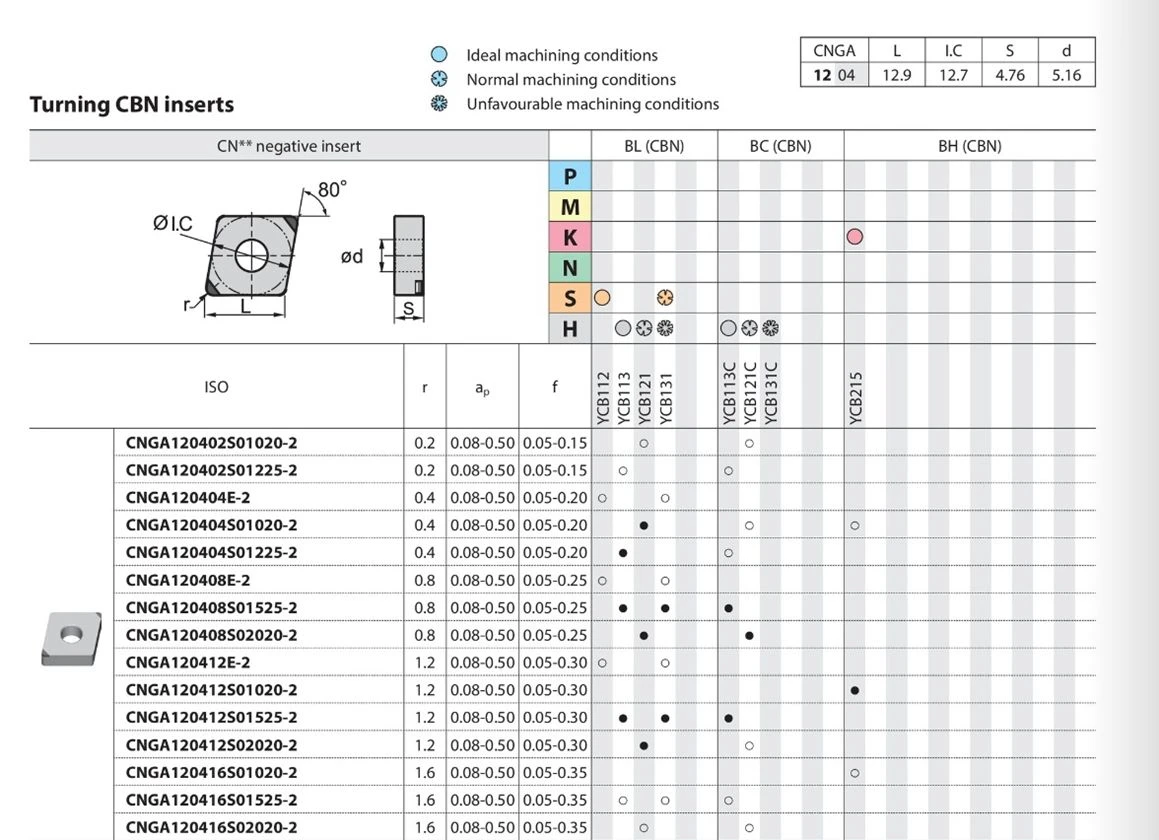

80° Rhombic Insert

Insert Grade 650
(K01)(S01)(H05) PVD TiN coated grade for use on Cast Iron, Heat Resistant Alloys and Hardened Materials

The designation "CNGA120408" refers to a specific type of turning insert used in machining operations. Let's break down the code:

● CNGA: This is a standard code indicating the shape and type of the insert. In this case, it is likely a diamond-shaped insert suitable for general turning applications.

● 12: This typically represents the size or dimensions of the insert. The exact measurements depend on the manufacturer's specifications.

● 04: This might denote the corner radius of the insert. Again, the specific dimensions would be provided by the manufacturer.

● 08: This could indicate the thickness or height of the insert.

When it comes to using CNGA120408 inserts for machining with PCBN (Polycrystalline Cubic Boron Nitride) and PCD (Polycrystalline Diamond), it's essential to consider the properties of these materials and their compatibility with the machining process.

1.PCBN Inserts: PCBN is known for its hardness and abrasion resistance, making it suitable for machining hardened materials like hardened steels, cast iron, and other tough alloys. CNGA120408 inserts with PCBN are likely to be used for high-speed machining and turning operations on these materials, providing excellent wear resistance.

2.PCD Inserts: PCD is highly suitable for machining non-ferrous materials and non-metallic materials like composites, plastics, and aluminum. CNGA120408 inserts with PCD are likely to excel in applications where high precision and excellent surface finish are required.

The strength of these inserts depends on various factors such as the material being machined, cutting conditions (speed, feed, depth of cut), and the specific geometry of the insert. It's crucial to follow the manufacturer's recommendations for cutting parameters and use the inserts within their specified limits to achieve optimal performance and tool life.

Additionally, advancements in cutting tool technology continually improve the performance of inserts, so it's advisable to check with the insert manufacturer for the latest information and recommendations regarding the use of CNGA120408 inserts with PCBN and PCD for specific machining applications.
