DNGN150408 Turning Inserts For PCBN And PCD

Model NO.：DNGN150408

Material：CBN PCD Ceramic

Hardness: Below HRC55-65

Type：Solid CBN Cutting Tools

Application: Metal Cutting Machine, Metal Processing Machinery Parts

Machining：Turning, Milling

Production Capacity：20000pie/Week

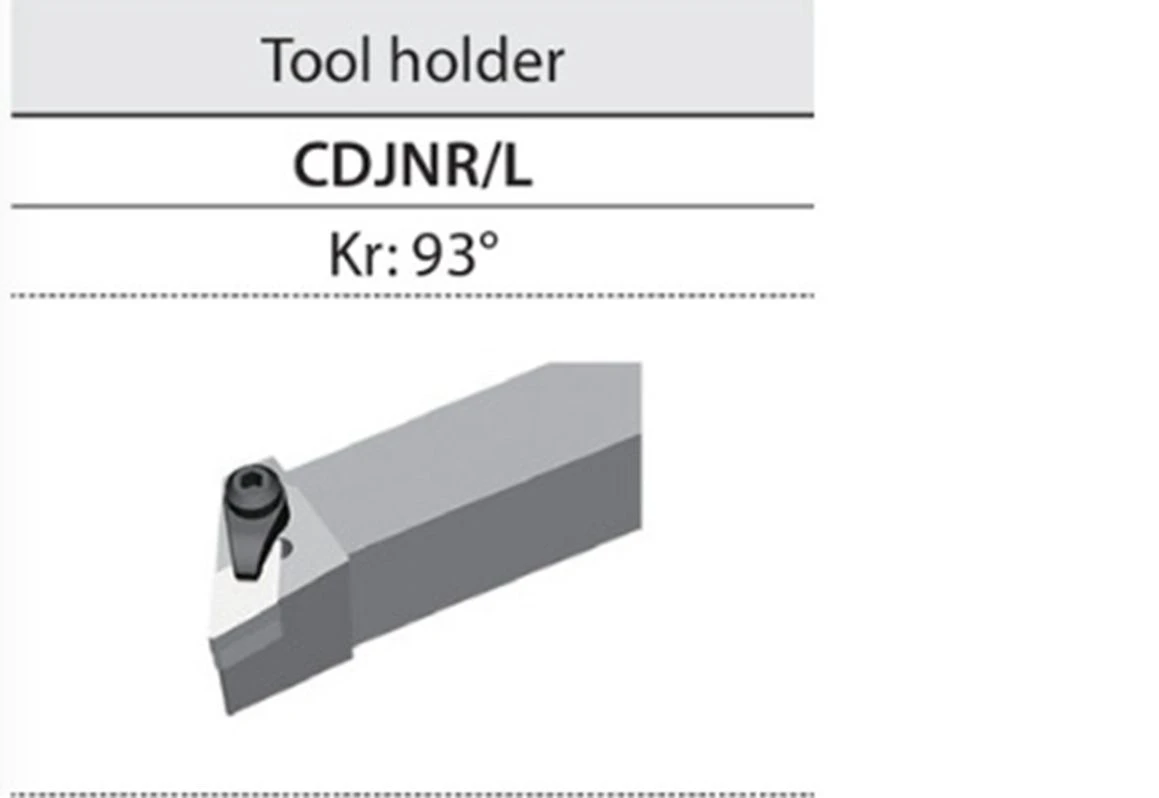

Tool Holders: CDJNR/L

1. Products Description:
DNGN150408 turning inserts are designed to deliver maximum productivity in specific applications. We are a manufacture that have a complete line of high quality polycrystalline CBN (PCBN) products for machining ferrous materials, with the best self-produced CBN micron powder, the most advanced foreign technology and the HTHP sintering process in cubic anvil press. Our compacts tool blanks and inserts are supplied in solid and WC-supported PCBN forms, Named as SBN and SCB series compacts.

Polycrystalline cubic boron nitride (PCBN) is a synthesized mass of randomly orientated cubic boron nitride (CBN) particles, bound by a ceramic binder phase.

PCBN inserts are suitable for the high-speed and super high-speed precision
machining of hardened steel of HRC>45, wear-resistant cast iron,
heat-resistant alloys of HRC>35, pearlite grey cast iron, nodular cast iron,
Fe-based P/M sintered materials and hardened cast iron.

1.DNGN150408 Code: This alphanumeric code typically indicates the specific design and characteristics of the turning insert. In this case, "DNGN" is likely a designation for the insert shape or geometry, and "150408" might refer to specific dimensions or features. To get precise details, it's recommended to refer to the manufacturer's documentation or catalog for the insert.

2.Turning Inserts: These are cutting tools used in machining processes, particularly in turning operations on lathes and turning centers. Turning inserts are replaceable cutting tips that can be mounted on the toolholder. They are designed for specific materials, cutting conditions, and machining applications.

3.PCBN and PCD: PCBN and PCD are advanced cutting tool materials known for their exceptional hardness and wear resistance.

● PCBN (Polycrystalline Cubic Boron Nitride): PCBN inserts are suitable for machining hardened steels, cast iron, and other hard materials. They offer high thermal stability and can withstand high cutting temperatures.

●  PCD (Polycrystalline Diamond): PCD inserts are used for machining non-ferrous materials, non-metallic composites, and abrasive non-ferrous alloys. PCD is extremely hard and wear-resistant, making it suitable for applications where high-speed machining and precision are required.

To obtain detailed information about the DNGN150408 inserts, you should contact the manufacturer directly or refer to their product catalog. The manufacturer's documentation will provide specific details about the insert's geometry, material compatibility, and recommended cutting conditions. Additionally, you may find information on recommended cutting speeds, feeds, and other parameters for optimal performance.
