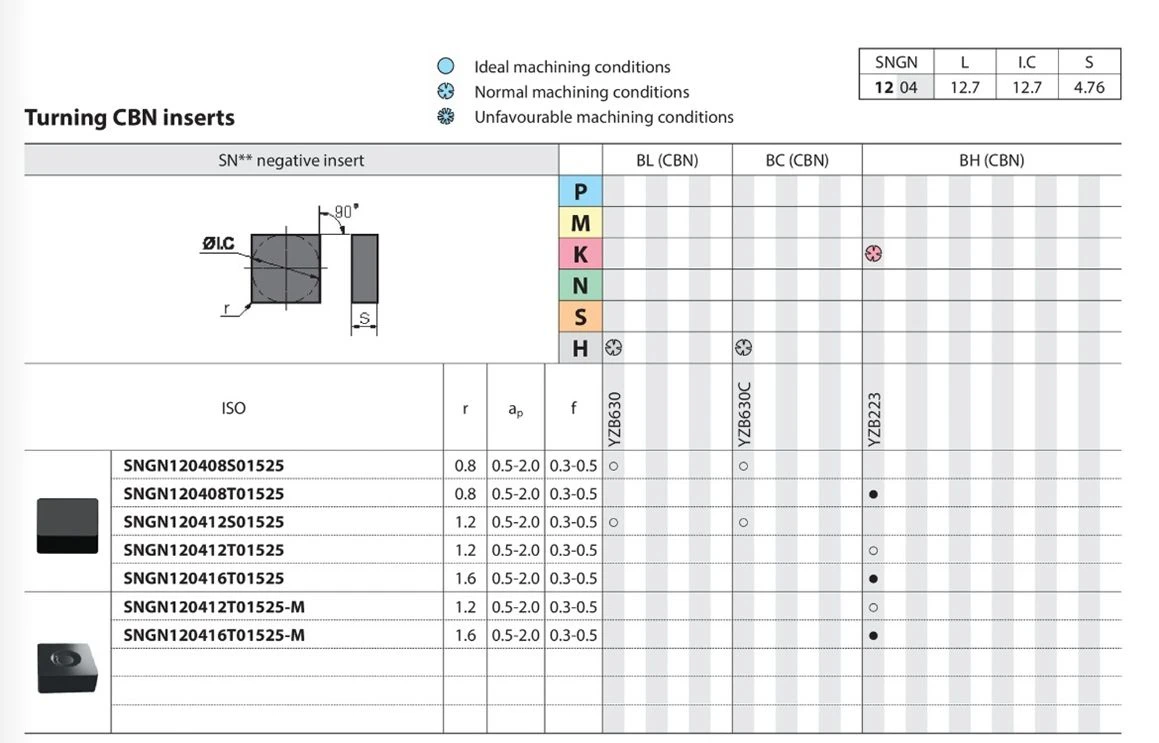

SNGN120408 Turning Inserts For PCBN And PCD

Model NO.：SNGN120408

Material：CBN PCD Ceramic

Hardness: Below HRC55-65

Type：Solid CBN Cutting Tools

Application: Metal Cutting Machine, Metal Processing Machinery Parts

Machining：Turning, Milling

Production Capacity：20000pie/Week

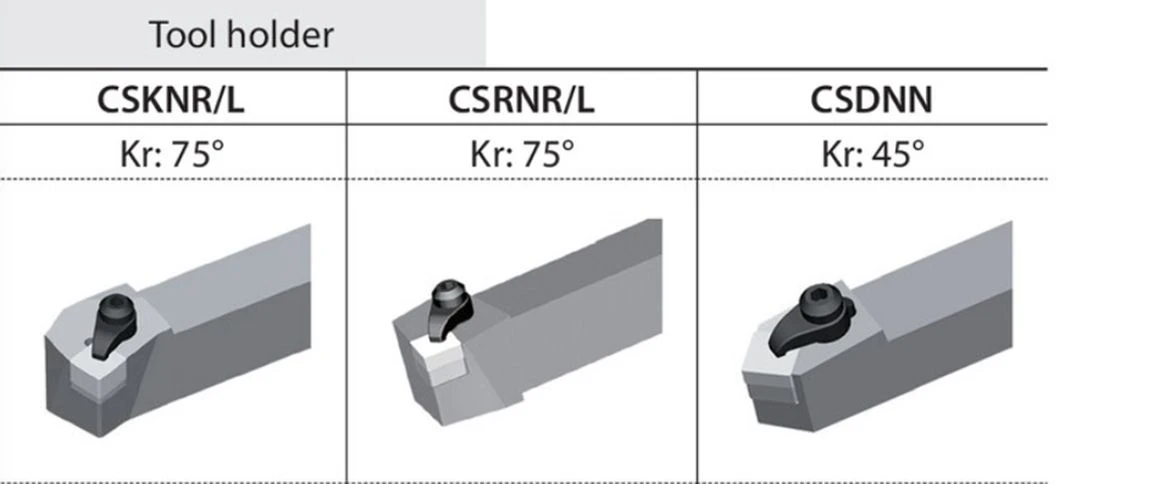

Tool Holders: CSKNR/L,CSRNR/L,CSDNN

Brand: "CQ CUTOOL" or OEM, Application:
TICN+AL2O3 ceramic insert has outstanding wear resistance and thermal shock resistance with high-speed cutting. Pure raw materials give stability and fine microstructure to the products. Through HIP process, shaped bodies are completely condensed so that the finished goods are strong and resistant against fracture and wear. It is suitable for general machining hardened steel and cast iron.
Advantage:
Improved work efficiency by increasing cutting speed on extremely higher than carbide inserts.
Longer tool life through excellent wear resistance.
Precise cutting and superior surface roghtness.
Physics Performace:
Density: 4.4g/cm3
Hardness: 20GPa
Bending strength: >=700MPa
Remark:
Customization is possible as per drawing, detail information or samples.
Delivery time: 10-50 days, depends on the stock and productions.
Payment: 100% before shipment
unit weight: 5g-60g/pc

The strength of these inserts can depend on various factors, including the material composition, design, and intended application.

To obtain information about the strength characteristics of SNGN120408 inserts, you should refer to the manufacturer's documentation, product catalog, or contact the manufacturer directly. The manufacturer typically provides details about the material properties, including strength, hardness, and other relevant specifications.

In general, when working with cutting inserts for machining applications, the properties of the material (PCBN or PCD) are crucial for assessing their performance. PCBN and PCD are known for their hardness, wear resistance, and thermal stability, which contribute to their effectiveness in cutting and machining operations.

If you have the product packaging or documentation that came with the inserts, it may contain information about the specific properties and strength characteristics of the SNGN120408 inserts. If not, reaching out to the manufacturer's customer support or checking their official website can provide the most accurate and up-to-date information.
