DNMX Carbide Inserts For Steel And Cast Iron
The DNMX Insert is widely applied in automobile, aerospace, 3C and other industries.
Grade: Various
Applications: Turning

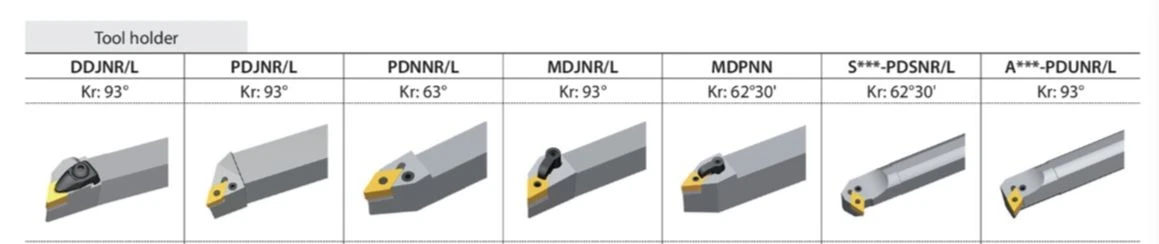

Corresponding Tools: DDJNR/L, PDJNR/L PDNNR/L, MDJNR/L, MDPNN, S***-PDSNR/L, A***-PDUNR/L
Available chip breakers: -WG
Applicable fields: Automobile, Aerospace, etc
Product Introduction:
Insert with wiper for light cutting of carbon steel, alloy steel, mild steel, and stainless steel DNMX○○○○○○-SW.
[Features]
- 55° diamond shape, negative insert, with hole.
● The high-efficiency insert that maintains surface roughness even when the feed rate is increased enables roughing and finishing in one shot.
● Sharpness is improved with a positive land suitable for inner diameter machining. Prevent chatter.
● Wide chip pocket prevents chip clogging.
[Use]
● For light cutting.

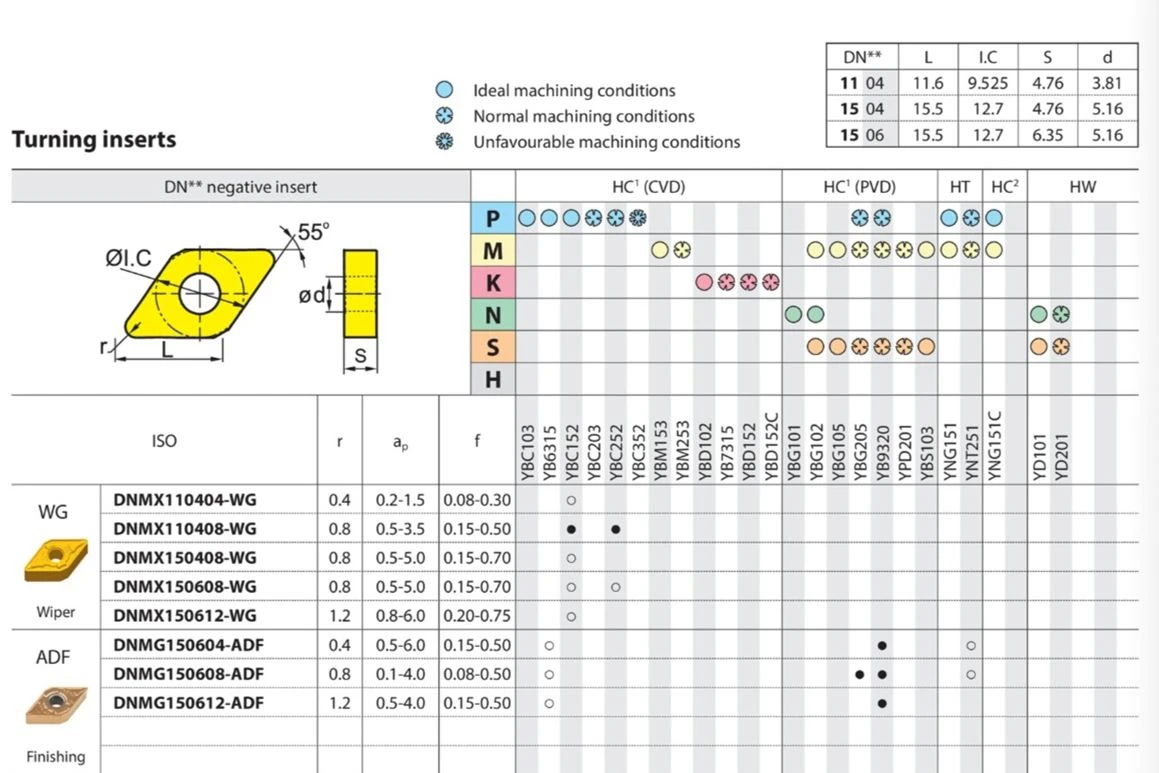

Product Specifications:
The Strength of DNMX Carbide Inserts
Carbide inserts are commonly made from cemented carbide, which is a composite material consisting of hard carbide particles (typically tungsten carbide) bonded together with a metallic binder (usually cobalt). Tungsten carbide is known for its high hardness, wear resistance, and strength.
To determine the strength of DNMX carbide inserts or any carbide insert, you may need to consider the following factors:
1.Material Composition: The specific composition of the carbide material used in the inserts plays a crucial role in determining their strength. Tungsten carbide with a high percentage of tungsten is generally stronger.
2.Coating: Many carbide inserts are coated with various materials to enhance their performance. Common coatings include titanium nitride (TiN), titanium carbonitride (TiCN), and aluminum oxide. These coatings can improve wear resistance and overall tool life.
3.Design: The geometry and design of the carbide insert also impact its strength. Different designs are optimized for specific applications, and factors like chip control, cutting forces, and heat dissipation are considered in the design process.
4.Manufacturer Specifications: Each manufacturer may have its own proprietary formulations and processes for producing carbide inserts. It's essential to refer to the manufacturer's specifications and recommendations for information on the strength and performance of specific carbide inserts, including DNMX inserts.
