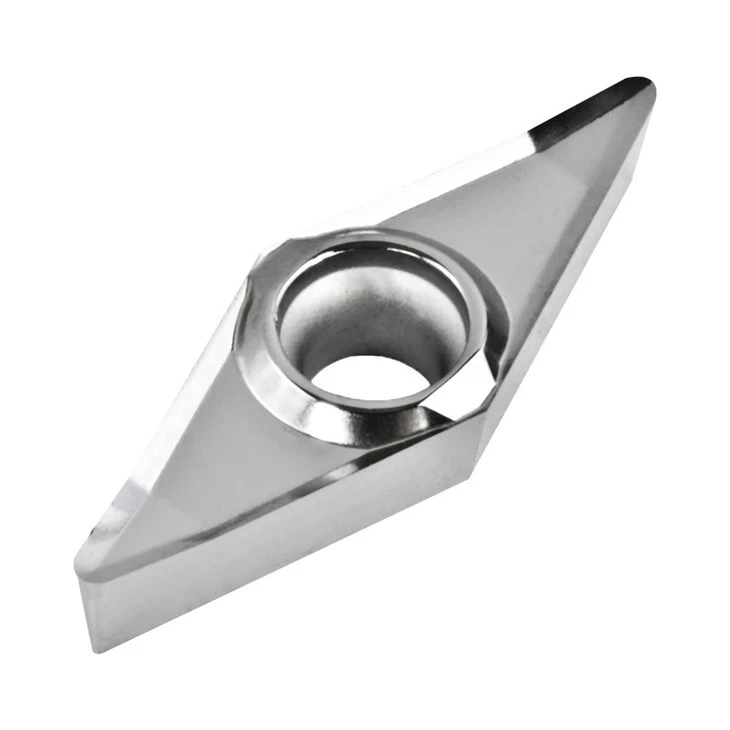

VCGT Carbide Inserts For Steel And Cast Iron

VCGT Turning Inserts. V -quadrilateral shape of turning insert - rhombic (35°)

C - Insert with clearance under main cutting edge (7°)

G - Tolerances and dimensions of carbide turning insert

T- Hole through insert and single sided chip breaker

VCGT turning insert with very positive flank, positive rake angle and sharp cutting edge for optimum cutting performance. Sharp cutting edge for optimum cutting performance. Carbide construction for strength and rigidity. Heat and wear resistant properties for prolonged tool life. Cutting edges reliability, precision with a smooth surface. Corrosion resistance high brightness

The Application for VCGT Turning Inserts

The type of carbide grade and the coating on inserts is originally intended for turning aluminum, nonferrous (aluminum alloy, copper, wood, glass fiber, carbon fiber reinforced plastic and other nonferrous metals and alloys)

Where is tungsten carbide manufactured?

There are many companies manufacture tungsten carbide. But approximately 85% of the world's tungsten comes from China. Zhuzhou city is the largest tungsten carbide products manufacturing center in Asia.

What are inserts made of?

Almost all the inserts consist of cemented carbide, which results from a combination of tungsten carbide (WC) and cobalt (Co). The hard particles within the insert are WC, while Co can be thought of as the glue that holds the insert together.

What are your main products?

We do cutting tools company's main products are turning insert. milling insert. drilling insert. threading inserts. grooving inserts and aluminum machining inserts.
