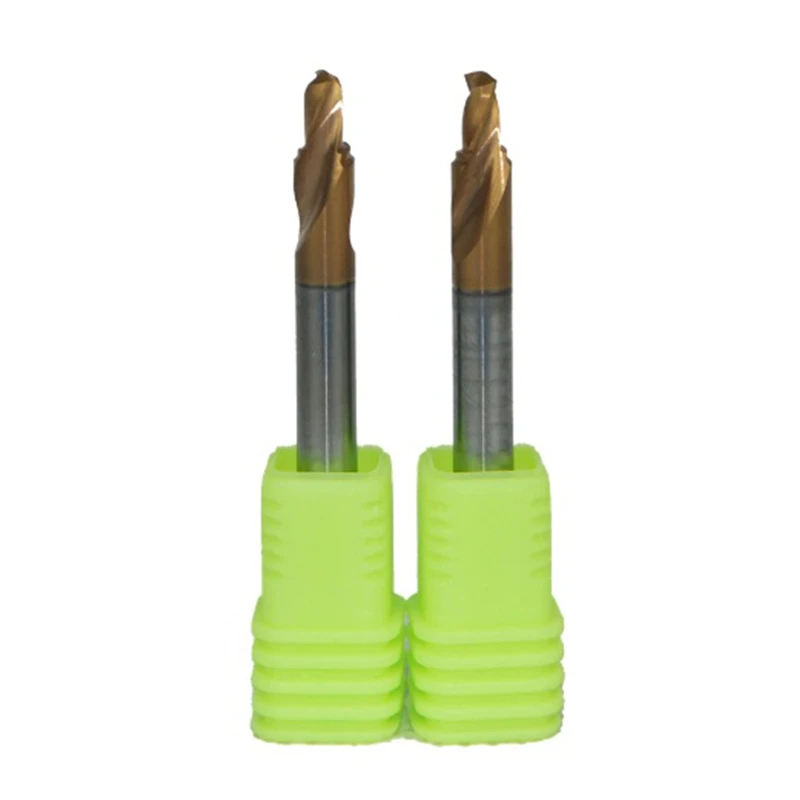

Custom Solid Carbide Stepped Drill
Helix Angle：Customized Angle
Processed Materil：Customize Material
Quality：High Precision
Basic Info.
Product name: Tungsten Carbide Alloy Stepped Drill
Model NO.： CQ10023
Type：Drilling Hole
Material：Carbide/HSS
Usage：Wood Drilling, Well Drilling, PCB Drilling, Metal Drilling, Masonry Drilling, Customized Material
Helix Angle：Customized Angle
Processed Materil：Customize Material
Quality：High Precision
Surface：Customized Coating
Specification：Step Drill
Product Description

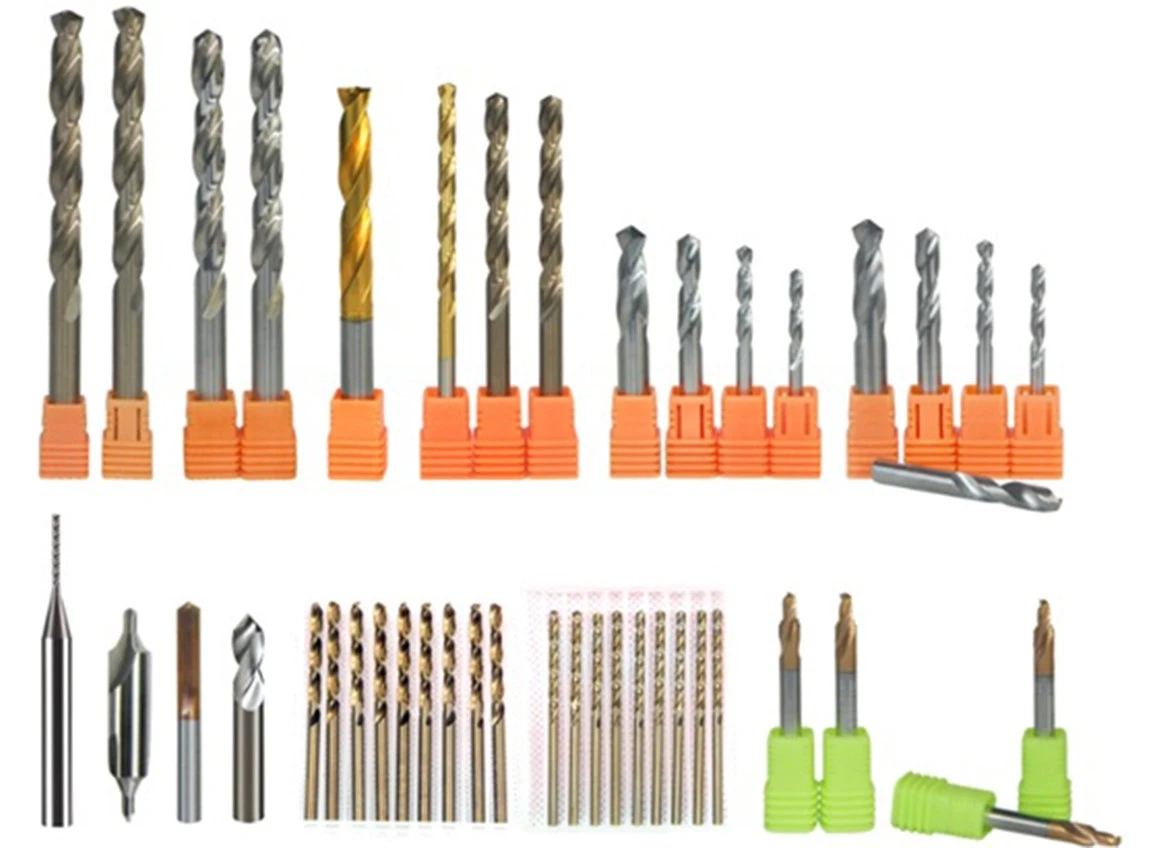

Our main products are high precision end mill, ball nose mill, ultra-micro end mill, high precision CNC mill (corn mill), high precision multi flutes fine milling tools and high precision internal cooling drill-reamer. Also, we produce different kinds of carbide drills, HSSE twist drills and so on. These products are widely used in aerospace, shipbuilding, rail transportation, automotive automation, moulding, medical equipment, IT electronic parts industries.
|
Serial No. |
34 |
43 |
50 |
68 |
86 |
103 |
123 |
143 |
|
Diameter d1 |
Φ3.4 |
Φ4.3 |
Φ5.0 |
Φ6.8 |
Φ8.6 |
Φ10.3 |
Φ12.3 |
Φ14.3 |
|
Flute Length L1 |
11.5 |
13.5 |
16.5 |
21 |
25 |
30 |
34 |
38 |
|
Diameter d2 |
6 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
|
Flute Length L2 |
28 |
28 |
41 |
47 |
55 |
60 |
65 |
73 |
|
Shank Dia D |
6 |
6 |
8 |
10 |
12 |
14 |
16 |
18 |
|
Total Length L |
65 |
65 |
80 |
89 |
102 |
107 |
115 |
123 |
|

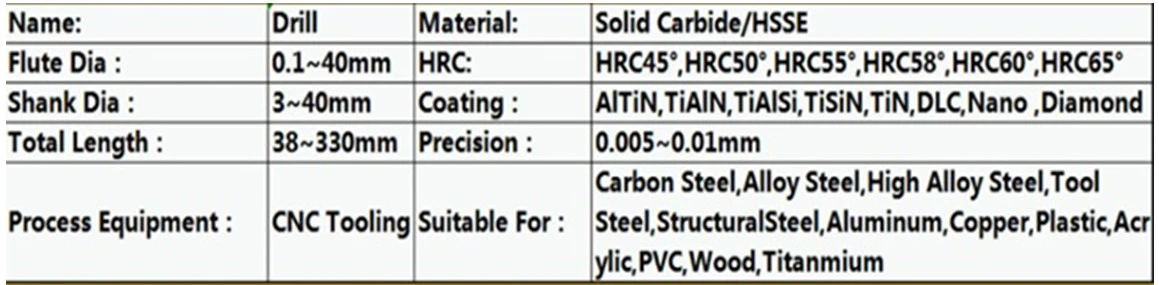

Name: |
Drill |
Material: |
Solid Carbide/HSSE |
|
Flute Dia: |
0.1~40mm |
HRC: |
45°,50°,55°,58°,60°,65° |
|
Shank Dia: |
3~40mm |
Coating: |
AlTiN, TiAlN, TiAlSi, TiSiN, TiN,DLC,Nano,Diamond |
|
Total Length: |
38~330mm |
Precision: |
0.005~0.01mm |
|
Process Equipment: |
CNC Tooling |
Suitable For: |
Carbon Steel,Alloy Steel,High Alloy Steel,Tool Steel,Aluminum, |
FAQ
Do you print my logo& design?
Yes, we can mark your logo on tools' body and make stickers on box, please send us your logo picture& artwork, and have all texts outlined.
What's the MOQ?
At the first cooperation time,10 pcs is available.
How many ways of shipping? By sea (cheapest, but slow); by express (DHL FedEx….); by air
How much for shipping cost?
When we know your specific dimensions will quote for shipping cost.
How to get a sample?
Some sample can provide for free you only pay for freight. For customized sample, please contact us for sample cost.
What's the sample time and production time?
Sample (in stock):7~10days, Customized sample:10~15 days.
Production time:15~20 days.
