High Performance Metal Drill Bits for Steel
Specification: all sizes are available
Standard: AISI
Length: Normal
Basic Info.
Product Name: High Performance Metal Drill Bits for Steel
Model NO.: GMD 003
Specification: all sizes are available
Standard: AISI
Length: Normal
Type: Twist Drill Bit
Material: High Speed Steel
Usage: Wood Drilling, Well Drilling, PCB Drilling, Metal Drilling
Product Introduction:

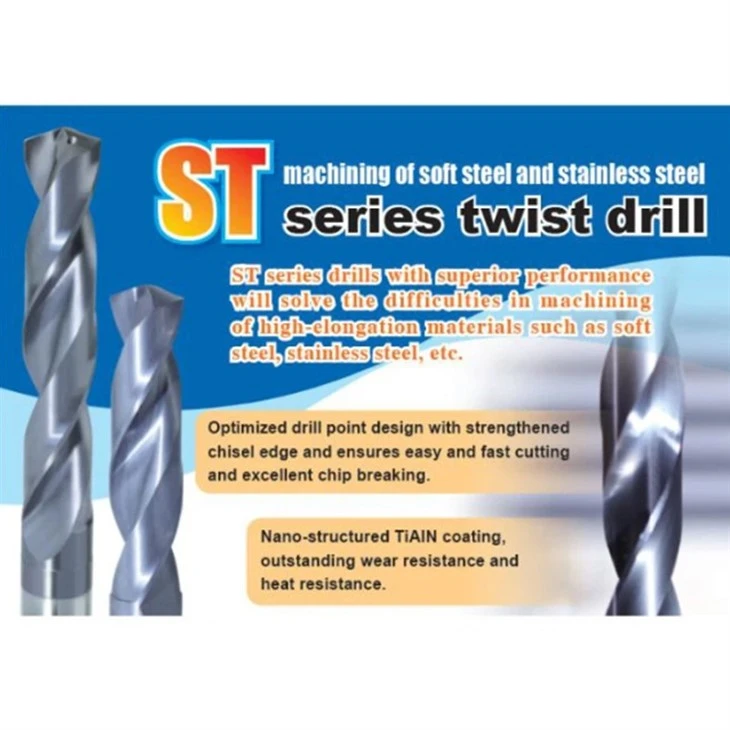

The Metal Drill Bit for Steel is one of the best sellers for machining of soft steel and stainless steel. It has superior performance, can solve the difficulties in machining of high-elongation materials such as soft steel, stainless steel, etc. The optimized drill point design with strengthened chisel edge and ensures easy and fast cutting, and excellent chip breaking. In addition, our Metal Drill Bit for Steel has outstanding wear resistance and heat resistance. This product can be supplied in different specification to meet different requirements. Please check the details carefully and let us know your requirements before purchasing!
Advantages
The Metal Drill Bit for Steel is economical and can be universally applied. This product can give a long service with very low maintenance cost. All details reflect our exquisite workmanship. We can provide you with this product in a large quantity at wholesale price. And if you buy our products, we will give you our best after-sales service!
Recommend ST series Metal Drill Bits for Steel
Cutting Parameters:
|
Work Piece Material |
Silicon Aluminum Alloy |
|||
|
Cutting Speed |
100 - 180m/Min |
80 - 140m/Mim |
||
|
Diameter |
Rotating Speed |
Feed Rate |
Rotating Speed |
Feed Rate |
|
2 |
20000 |
0.07-0.16 |
18000 |
0.07-0.16 |
|
3 |
15000 |
0.09-0.18 |
12700 |
0.09-0.18 |
|
4 |
11000 |
0.10-0.22 |
9600 |
0.10-0.22 |
|
5 |
9000 |
0.12-0.25 |
7600 |
0.12-0.25 |
|
6 |
7400 |
0.14-0.28 |
6400 |
0.14-0.28 |
|
8 |
5600 |
0.18-0.32 |
4800 |
0.18-0.32 |
|
10 |
4500 |
0.22-0.36 |
3800 |
0.22-0.36 |
|
12 |
3700 |
0.25-0.40 |
3200 |
0.25-0.40 |
|
14 |
3200 |
0.27-0.44 |
2700 |
0.27-0.44 |
|
16 |
2800 |
0.32-0.48 |
2400 |
0.32-0.48 |
About more types of the product, pls feel free to contact us!
