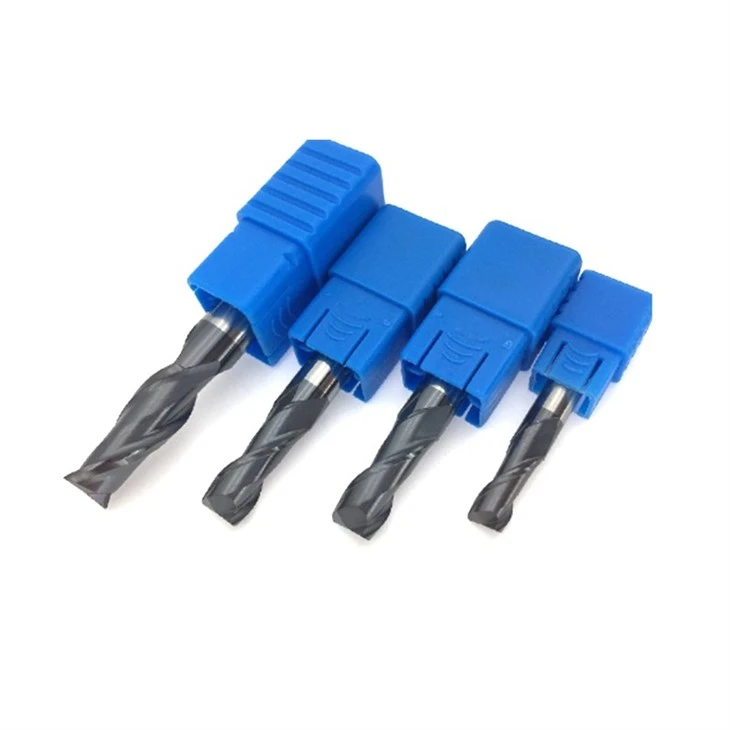

Solid End Mill Cutter

Product name: HRC45 Customized Solid Carbide Flat Standard Square End Mill Cutter for Fresa PARA Chapadora 2 Flutes Cutting Tools CNC Router Machine

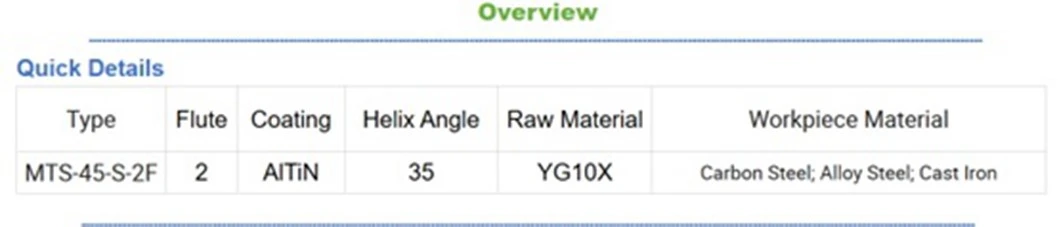

Model NO.MTS-45-S-2F

Coated：Altin

Standard Size:0.2-20mm

Specification: D0.2mm-D20mm

Flutes：2f

Over Length:50-150mm

Transport Package：Plastic Box, out Pack: Carton

Trademark：CQ CUTOOL

Tooth Form: Spiral Tooth

Tooth Space: Sparse Tooth

Structure: Indexable Type

Material: Tungsten Steel

Type: Side Milling Cutter

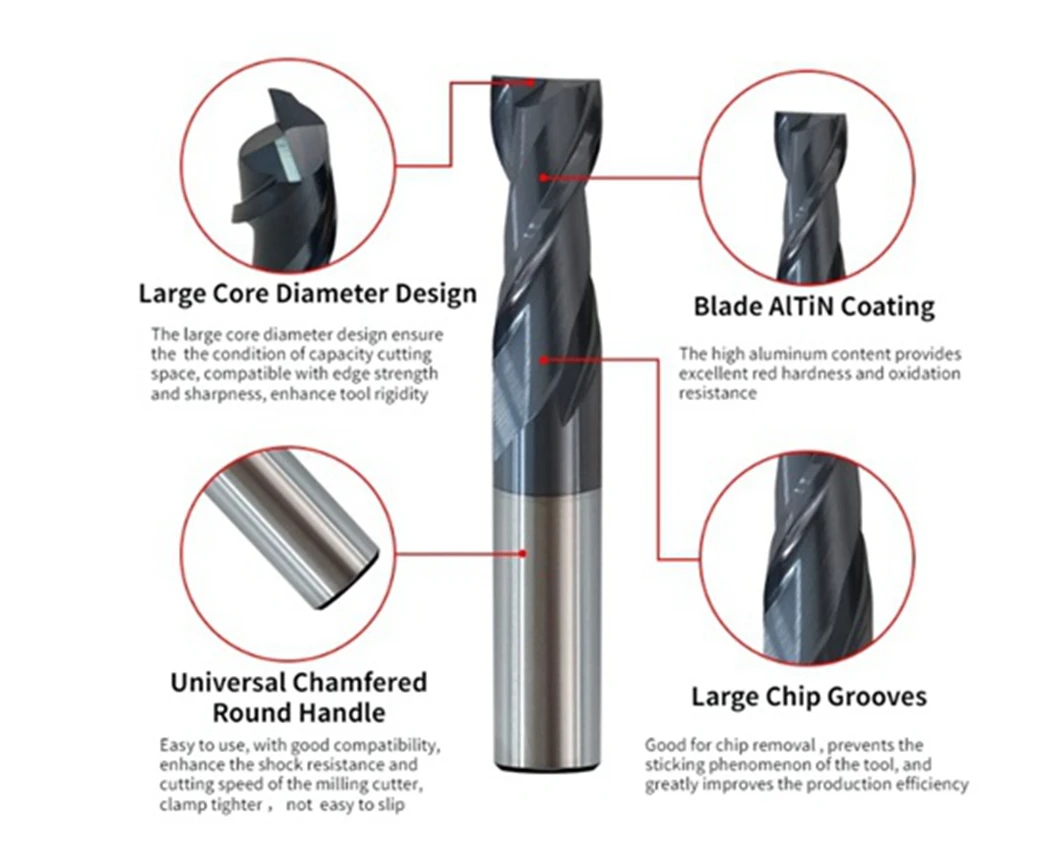

High quality TiAlN , AltiCrSiN coating

Special edge preparation provides a smooth cut and prolonged edge life.

Submicron / Ultrafine substrate provides high toughness and wear resistance.

Variable Helix and variable pitch geometry for reduced machine power and increased metal removal rates.

Unique geometries for ISO P M K S H N Semi-standard/special endmills supplied upon request

The Features of Solid Carbide End Mills:

Solid carbide endmill products are produced from a high-quality carbide grade with optimized grinding process and top PVD coating. The high quality places the company incisively in the global market, die & mold, aerospace, medical, power generation and general machining industries.it is comprised of high-tech solid carbide cutting tools based on the newest Submicron / Ultrafine substrate carbide technology and tool coatings. These tools are well-suited for high-speed machining, the machining of hardened material up to 60 Rockwell C range and even dry machining.

Diameters Range Ø1-20 mm in 1-6 L/D ratios

Tool Types: 90° endmills, Ball-nose cutters, tools for high-speed milling, chamfering, and deburring

4 Flute Endmill for General Use

5 Flute Endmill for Machining Stainless Steel

7 Flute Endmill for High-Speed Machining
