Flat End Mill Cutter
Model name: PM-4E series
Diameter range: 2.0 – 20.0 mm
Machining type: Universal
Basic Info.
Product Name: Flat end mill cutter
Model name: PM-4E series
Diameter range: 2.0 – 20.0 mm
Machining type: Universal
Recommendation for steel material: 30 HRC to 55 HRC
Ports: China ports
Product Introduction:
In the field of milling, our company has developed a plenty number of industry solutions in the past years. The major focus factor has been tools adapted to the related customer needs. With years of experiences, our company has accumulated high level of understanding in the area of milling. We can provide a suitable cutting tool for every milling task and all types of machining. Moreover, the end mills can easily handle all types of material which include steel, cast iron, aluminum, super alloys, and etc. In order to meet customers' special requirements, the R&D center helps us to offers custom milling tools individually tailored to the requirements of the customer. For instance, complex geometry and contours can be realized using specifically designed milling cutters, or machining times and tools changes reduced using combination tools.

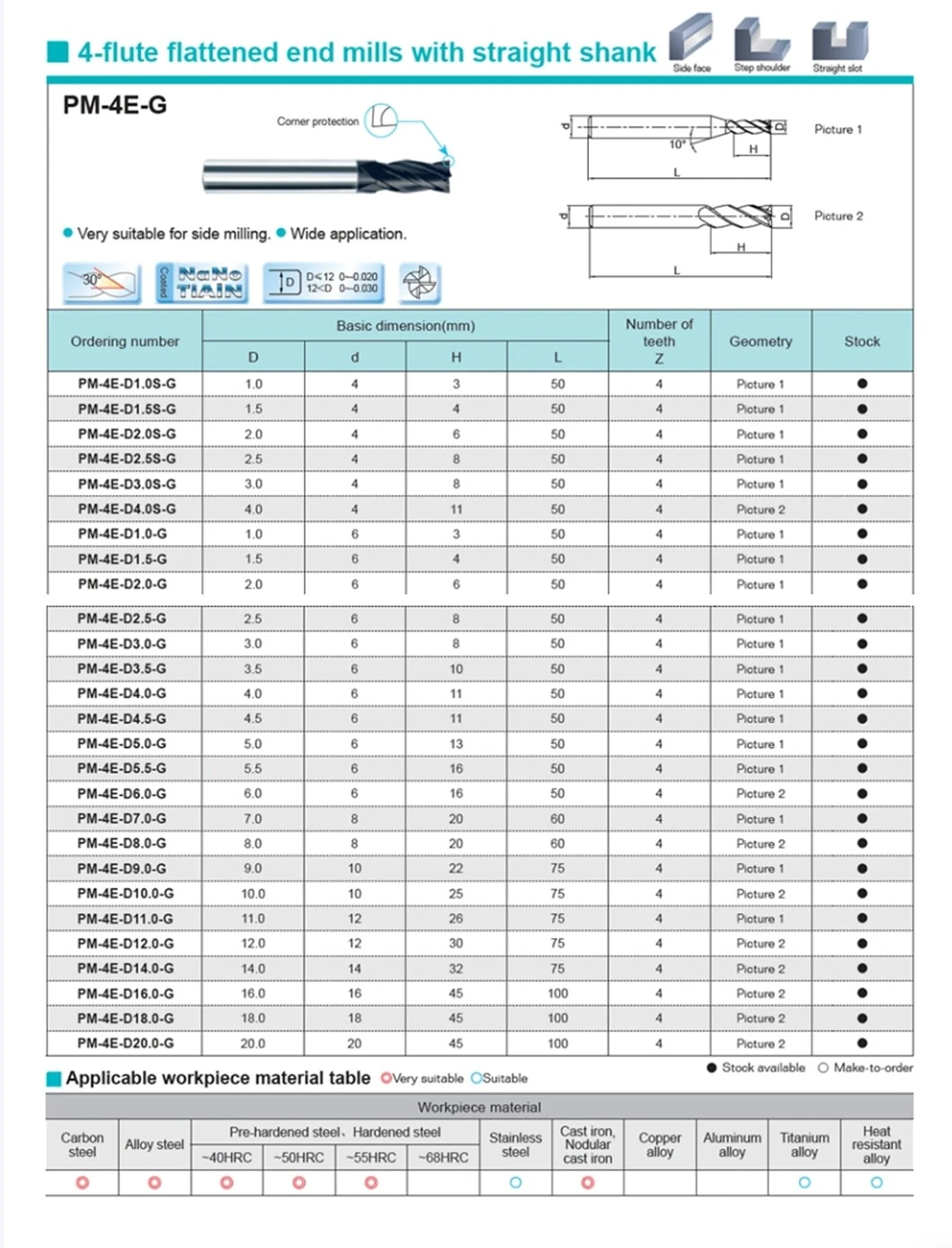

Product Specifications:

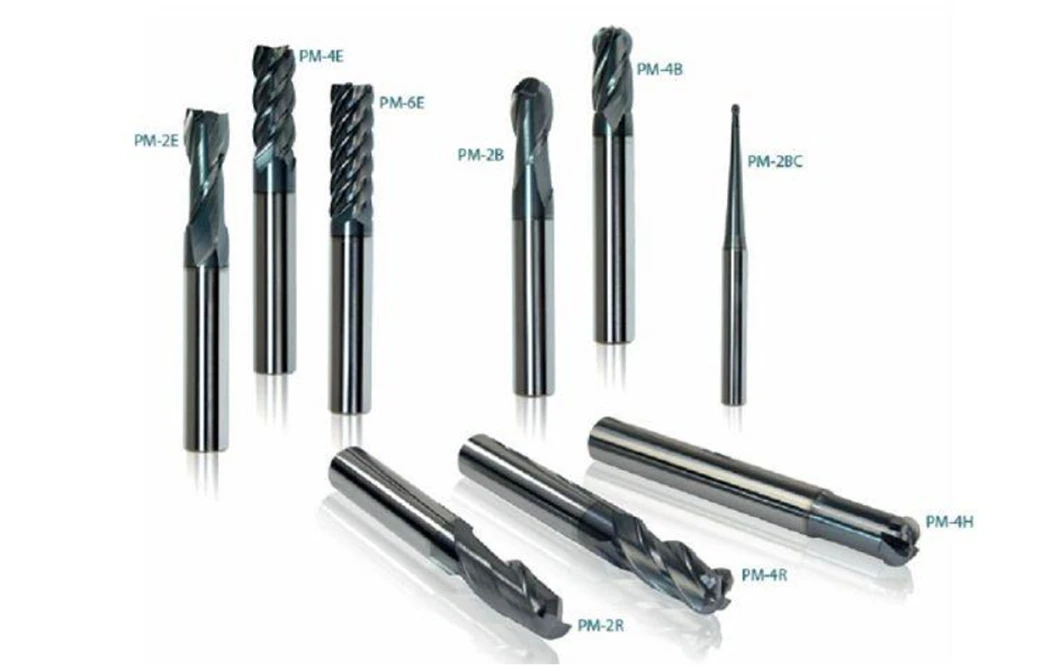

PM-4E-G Series Solid Carbide End mill
Brand: CQ CUTOOL
Commodity: PM series Solid Carbide Endmill
Substrate: 0.4~0.6µ micro grain WC
Coating: nano-TIALN coating (PVD), grey black color.
Application: It is universal grade for milling of carbon steel, alloy steel (HRC≤55). cast iron and stainless steel. It can be for machining of Ni based high-temperature alloys at normal cutting speed.
Flute: 4 flutes are for semi-finishing or finishing cutting, 2 flute is for rough machining.
Cutting corner: "4F" has sharp cutting corner, suitable for 90°right angle groove, "4E" has cutting edge strength. Cutting edge to all endmill treated by special honing process.
Helix angle: has 30°,38°,45°and others, suitable for side milling, step milling, grooving milling, profile milling and so on, but 30°is special for side milling.
Product Feature for Flat End Mill Cutters:
1. Optimized geometry, improves chip removal and chip forming with reduced cutting force.
2. Higher feed rates and improved metal removal rate for efficient machining, due to high stability of cutting edge and rigid tool structure.
3. With excellent wear resistance and toughness, high wear resistance and breakage resistance is achieved even during high performance milling.
4. For machining of steel to max. 55 HRC and cast iron to heat-resistant alloys.
Machining Tips:
|
Danger |
Protective Measure |
|
Milling Cutters Have Sharp Cutting Edges and Direct Contact with Them May Cause Injuries. |
For Your Safety, Please Wear Protective Gloves If You Need to Touch Inserts. |
|
During Rotary Cutting, Clothes, Gloves, Etc. Are Easily to Get Wringed in The Machine at High Speed, Thus Cause Casualties. |
The Operator Should Not Wear Gloves During Rotary Cutting. Please Pay Attention That the Clothes Should Not Contact the Operational Parts of Machine. |
Company Profile:
Zhuzhuan (Chongqing) CNC Tool Co., Ltd. is a professional enterprise engaged in the research and development, production, and sales of CNC cutting tools. We cooperate with ZCC.CT and establish a long- term cooperation friendship. Our company was established in 2017 and is located in Shuangfu Industrial Park, Jiangjin District, Chongqing city. The environment is elegant and the transportation is convenient. Our company has advanced production equipment and an experienced technical team, committed to providing customers with high-quality CNC tool products and high-quality after-sales service.
Convenient Transportation(From Chongqing Port to Shanghai Port)
Quality Certificates
