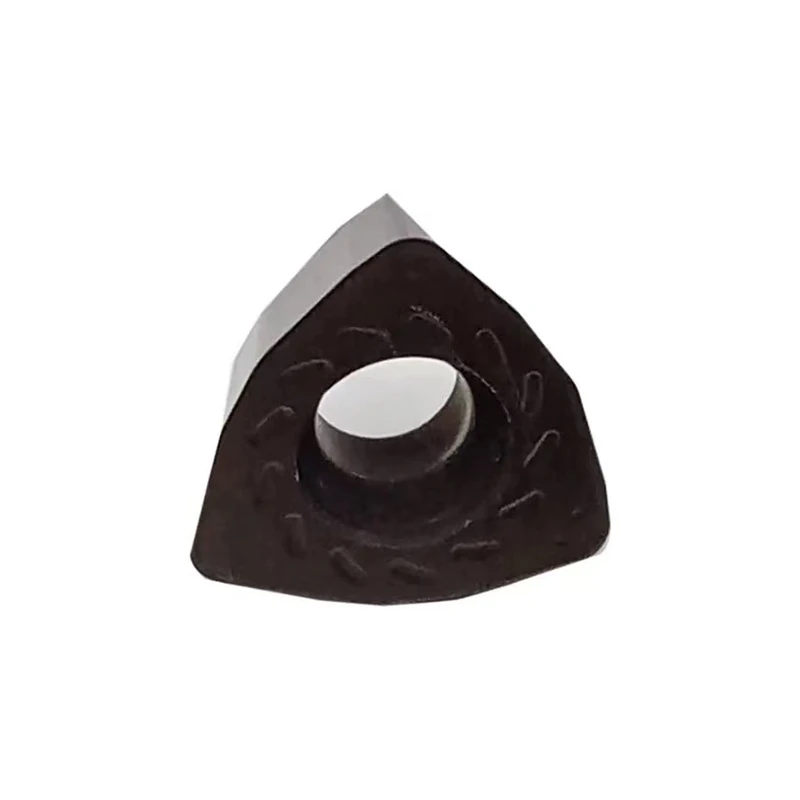

WPGT High Speed Mill Insert

Model NO.: WPGT High Speed Mill Insert

Coating: TIALN COATED

Application: Milling Machine

Material: Cemented Carbide

Price Term: EXW, Fob

Workpiece: Steel / Stainless Steel / Aluminum

Customized Support: OEM, ODM

Certificate: ISO9001

Port of Loading: Shenzhen, Guangzhou, Shanghai

Trademark: CQ CUTOOL

Transport Package: 10PCS/Plastic Box, Carton Box Outside

Origin: Chongqing, China

Minor cutting edge

● Improving surface quality.

● Designed for decreasing thrust cutting force (load on the cutting tool).

Major cutting edge 1

● Optimal chip flow.

● Minimize cutting load.

Major cutting edge 2

● Supporting major cutting edge 1.

● High rigidity of cutting edge.

● The embodiment of high feed cutting.

● The "un-cut" part is smaller than the round type button insert.

More Information About WPGT High Speed Mill Insert

The major benefit of high-feed milling cutters is extremely high productivity, focusing on removing as much material as possible in the shortest amount of time. High-feed milling application requires small entering angles. The Accusize high-feed end mills with trigon WPGT carbide inserts is the powerful and economic milling tool with double clamping, shortening machining cycle time, and enabling much longer tool life by cutting resistant chip breaker. It also decreases cutting resistance and realization of high feed cutting.

Minor cutting-edge improving surface quality, designed for decreasing thrust cutting force (load on the cutting tool)

Major cutting edge 1, optimal chip flow, minimize cutting load

Major cutting edge 2, supporting major cutting edge 1, with high rigidity of cutting edge, the embodiment of high feed cutting, and smaller "un-cut" part than round type button inserts

Nose-R has reinforced rigidity for side-face machining, the round (nose-R) edge line suitable for high feed

Nowadays, many businesses and machinists apply the machining strategy of light cutting depths and very high-feed rates. Using a very small lead angle such as 10°~20° can be your first choice for high-feed machining with low depths of cut.

Application: With the ultra-fine substrate + Nano coating and strong general chipbreaker, this insert is suitable for general high-feed milling (HFM) of adhesive materials such as stainless steel

High-speed milling inserts are typically designed for machining at elevated cutting speeds. Here are common applications for high-speed milling inserts:

1.High-Speed Machining (HSM): High-speed milling inserts are used in applications where the cutting speed is significantly higher than conventional machining speeds. This is often employed to achieve faster material removal rates.

2.Hard Materials: High-speed milling inserts are suitable for machining hard materials, such as hardened steels, heat-resistant alloys, and exotic materials, where the cutting speed needs to be optimized for efficiency and tool life.

3.Finishing Operations: The sharp cutting edges and precise geometry of high-speed inserts make them well-suited for finishing operations where a smooth surface finish is critical.

4.Light Milling: High-speed milling inserts are effective in light milling operations, especially when dealing with intricate details or thin-walled workpieces.

5.High Feed Milling: These inserts are often used in high feed milling applications where the tool engages with the workpiece at a high feed rate. This can result in increased material removal rates and reduced cycle times.

To get specific information on the application of the WPGT high-speed milling insert, it's recommended to refer to the documentation provided by the manufacturer. The manufacturer's catalog or technical data sheets should contain details about the insert's geometry, material composition, coatings, and recommended cutting parameters. Additionally, contacting the manufacturer or distributor directly will provide you with the most accurate and up-to-date information on the product and its applications.

Can you produce according to the samples?

Yes, we can produce as your samples or technical drawings. We can make molds and fixtures for special models.

Are you a factory?

Yes, we are a CNC cutting tools company that integrates industry and trade, we are a leading manufacturer and supplier of high-quality cutting tools for CNC (Computer Numerical Control) machines. Our factory is equipped with state-of-the-art technology and a skilled workforce to deliver precision tools that meet the diverse needs of our customers.

Your products range?

We offer a wide range of cutting tools designed to cater to various machining applications. Our product portfolio includes:

1.End Mills: We manufacture a variety of end mills, including square end mills, ball nose end mills, corner radius end mills, and roughing end mills. These tools are essential for milling operations and provide excellent cutting performance and durability.

2.Drills: Our drill selection includes twist drills, center drills, spotting drills, and step drills. These tools are designed to create holes with precision and efficiency in different materials.

3.Inserts: We produce a comprehensive range of inserts, such as turning inserts, milling inserts, and threading inserts. These inserts are made from high-quality materials and are known for their excellent cutting performance and long tool life.

4.Reamers: Our reamers are used for enlarging and finishing existing holes to precise dimensions. We offer a variety of reamers, including hand reamers, machine reamers, and adjustable reamers.

5.Tool Holders: We provide a wide selection of tool holders, including collet chucks, end mill holders, and drill chucks. These holders ensure secure tool clamping and accurate machining results.
