Indexable End Mill

The Indexable End Mill can be used for general face milling of steel and cast iron.

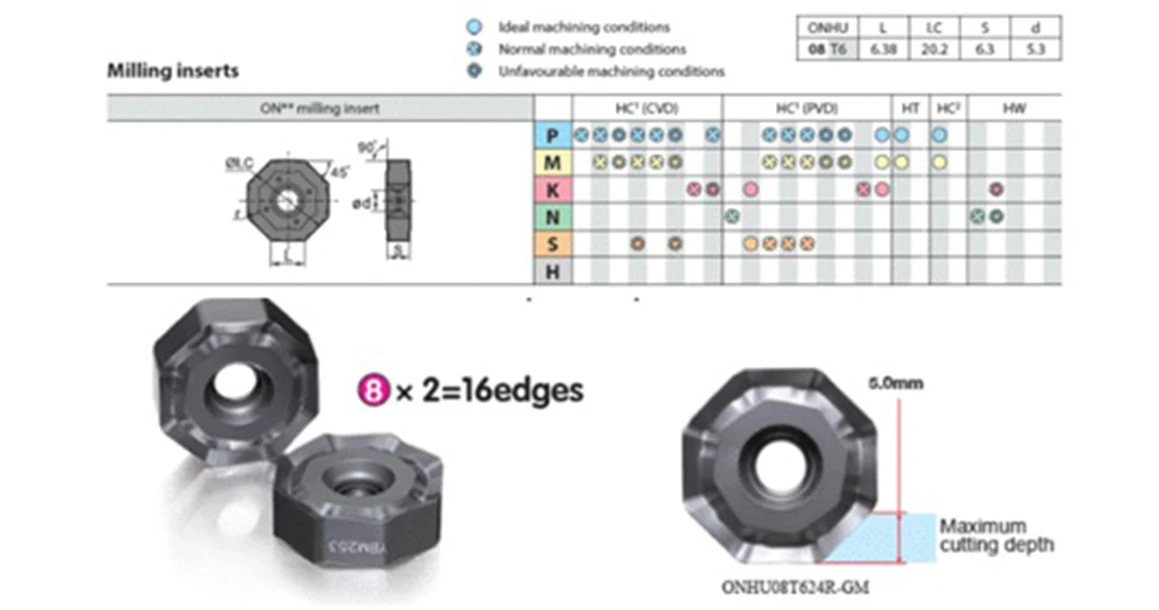

Category: ONHU

Common sizes: ONHU08

Applicable tool: FMA12

Chip-breaker: -GM

Entering angle: 45°

This kind of Indexable End Mill has a diameter range from 80mm to 315mm. It can give high performance face mill with 16 edges for outstanding economy. The double negative rake angle in combination with helical insert structure will help to achieves double positive axial angle. It will also help reduce cutting resistance and improve chip evacuation. In addition, the Indexable End Mill has cutting tools on both the cylindrical surface and the end face, they can be cut at the same time or cut separately. What’s more, it also has the advantages of high accuracy, high hardness, wear resistance, corrosion resistance, delicate design, long service life as well as high cost effective. The Indexable End Mill can be used for general face milling of steel and cast iron. It is very popular with our customers around the world.

1. Face Mills:

● Application: Face mills are used for facing and surfacing operations. They are ideal for producing flat surfaces on the workpiece.

● Inserts: They typically use square or octagonal inserts mounted on the tool's face. These inserts have multiple cutting edges.

2. End Mills:

● Application: End mills are versatile and can be used for various milling operations, such as profiling, slotting, and contouring.

● Inserts: End mills use inserts with cutting edges on the end and/or the periphery. Inserts can vary in shape and size based on the intended application.

3. Shell Mills:

● Application: Shell mills are used for heavy-duty face milling and slotting applications.

● Inserts: They use round inserts mounted on the periphery. Shell mills can remove a significant amount of material in each pass.

4. Ball Nose End Mills:

● Application: Ball nose end mills are used for contouring and milling 3D shapes with rounded contours.

● Inserts: These end mills have spherical inserts on the end, allowing for smooth and accurate machining of curved surfaces.

5. Roughing End Mills:

● Application: Roughing end mills are designed for removing large amounts of material quickly, usually in the initial stages of the machining process.

● Inserts: They use inserts with sturdy and deep cutting edges, allowing for aggressive material removal.

6. T-Slot Cutters:

● Application: T-slot cutters are specialized tools for milling T-shaped slots in workpieces, often used in fixture and jigs.

● Inserts: T-slot cutters may use triangular inserts to create the necessary T-shaped slot.

7. Thread Mills:

● Application: Thread mills are used for milling threads in a workpiece. They can produce both internal and external threads.

● Inserts: Thread mills use inserts with thread profiles that match the desired thread pitch and form.

8. Chamfer Mills:

● Application: Chamfer mills are used for chamfering or beveling the edges of a workpiece.

● Inserts: Chamfer mills use inserts with angled cutting edges to create precise chamfers.

9. Modular End Mills:

● Application: Modular end mills allow for customization by combining different modular components, providing flexibility for various milling tasks.

● Inserts: Inserts are selected based on the specific machining requirements and are mounted on modular tool bodies.

Our company operates a variety of CNC lathe turning tools, such as carbide inserts, U drills, milling cutters, tool holders, drill bits, Milling cutter Products such as disks, shim pads, screws, etc., in China we have the advantage of supply in the market. I also many brands, such as: Sandvik SECO, ISCAR, Walter, Kennametal, Sumitomo, Taikoo Tefu, Mitsubishi, DESKAR, ZCC. CT, Hadstone, etc.

We are factory direct sales, it only takes a short time to get the goods, saving a lot of procurement time and avoiding unnecessary procurement costs.

High-quality processing of stainless steel, hard materials, ordinary steel parts, we conduct experiments in the physical factory to ensure the best quality of each product. Here, you can purchase any desired product, CNC lathe machine parts, tools, measuring tools, one-stop purchase to solve your products selection issues.
