DCGW070202 PCD Turning Inserts
Type:PCD Cutting Tools
Application: Metal Cutting Machine, Metal Processing Machinery Parts
Machining:Turning
Product Information:
Model NO.：DCGW070202
Type：PCD Cutting Tools
Application: Metal Cutting Machine, Metal Processing Machinery Parts
Machining：Turning
Production Capacity：20000pie/Week

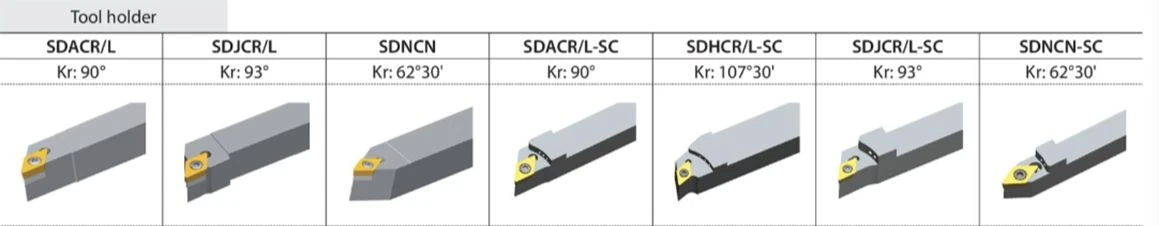

Tool Holders: SDACR/L SDJCR/L,SDNCN, SDACR/L-SC,SDHCR/L-SC,SDJCRR/L-SC, SDNCN-SC
Products Description:
|
Quality Control: ISO 1832:2004 system |
|
Workpieces Material: hardened steel, cast iron, powder metallurgy and thermal spray coated workpiece, Carbide HRA=80-88 ( Co>15%wt ) |
|
PCBN Grade: Diamond Innovations, Element Six, Sumitomo, ILJIN brand, Made-in-China |
|
Vacuum Brazing process |
|
The life: 50 - 150 times as long as that of carbide tool |
|
Work Efficiency: turning improved by 5-10 times comparing to grinding |

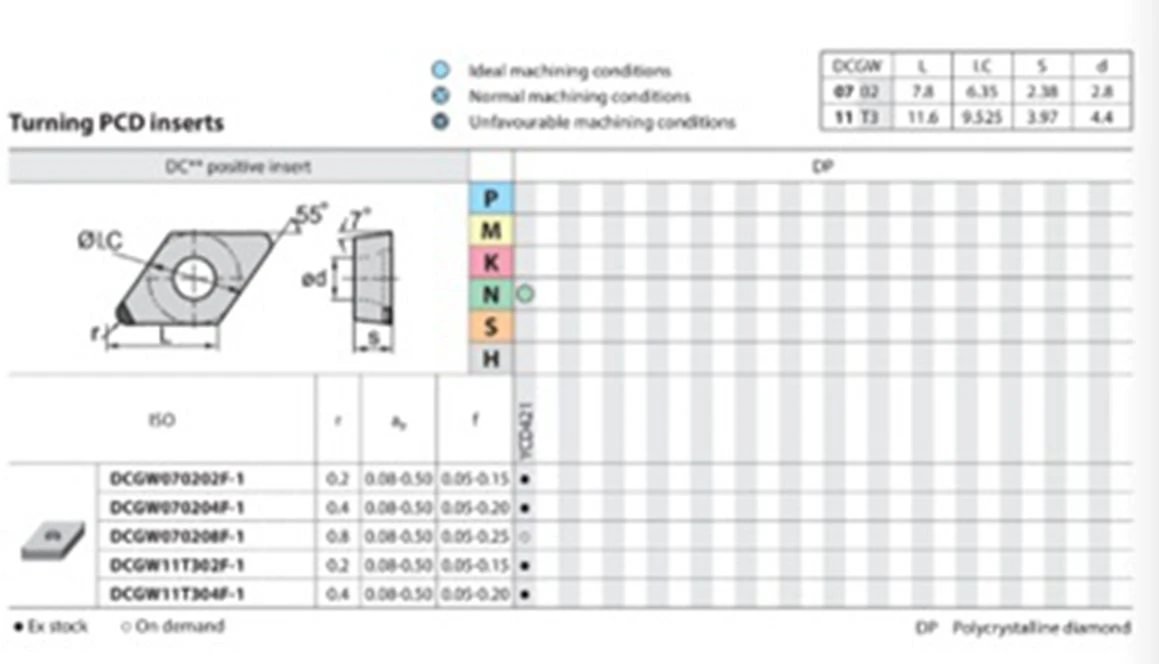

Product Specification:
The Strength of DCGW070202 PCD Turning Inserts
The strength of DCGW070202 PCD (Polycrystalline Diamond) turning inserts lies in their exceptional hardness, wear resistance, and thermal conductivity. Here's a breakdown of what each part of the code typically represents and how it relates to the strength and characteristics of the inserts:
1.DCGW: This part of the code likely denotes the shape or type of the insert. Different combinations of letters often represent different insert shapes or types in the manufacturer's coding system. In this case, "DCGW" specifies a particular shape or geometry of the cutting edge.
2.07: This part of the code could represent the size or dimension of the insert. It might specify certain measurements or dimensions of the insert, such as length, width, or thickness. In this case, "07" likely indicates specific dimensions.
3.0202: This part of the code may indicate additional features or characteristics of the insert, such as the angle of the cutting edge, the radius, or other geometric properties. Without specific knowledge of the manufacturer's coding system, it's difficult to precisely interpret this part of the code.
PCD turning inserts are renowned for their exceptional strength when machining highly abrasive and hard materials such as non-ferrous metals, wood composites, and various advanced materials used in aerospace and automotive industries. The polycrystalline diamond material offers extreme hardness and wear resistance, allowing for extended tool life and high-performance machining.
The specific dimensions and geometry of the insert, denoted by the code, are designed to optimize cutting performance, chip evacuation, and surface finish in various turning applications. However, the overall strength of PCD inserts lies in their ability to maintain cutting edge integrity and withstand the harsh conditions encountered during machining operations on challenging materials.
