Spiral Flute Reamer
Overall Length: 50-100mm
Coating/Coverage: AlTiN, TiAlN coated
Tolerance: H6
Product Details
Product Name: High Efficiency Carbide Spiral Flute Machine Reamers
Model Number: SFR-450/550
Product Parameters:
1. Brand name: CQ CUTOOL
2. Place of origin: Guangdong of China
3. Grade: CQ450 CQ550
4. Raw material: Original tungsten carbide
5. Grain Size: Micro grain 0.6μ
6. Type: Carbide reamers, Spiral flute reamers
7. Flute: 4/6 Flute
8. Machine or Hand: Machine reamer
9. Diameter: 1.0-12.0mm
10. Overall Length: 50-100mm
11. Coating/Coverage: AlTiN, TiAlN coated
12. Tolerance: H6
13. HRC: for 45HRC-55HRC work material
14. Controlling mode: CNC, High speed lathe
15. Work material: Cast iron, Steel, Alloy, Stainless steel
Main Features:
Made of high hardness raw carbide material, high durable and strength, very high cost-performance. Suitable for different metals reaming such as steel, cast iron, alloy steel, stainless steel, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
SFR010-019-450/550 |
1.0-1.9 |
1.0-1.9 |
15 |
50 |
4/6 |
|
SFR020-025-450/550 |
2.0-2.5 |
2.0-2.5 |
15 |
50 |
4/6 |
|
SFR026-030-450/550 |
2.6-3.0 |
2.6-3.0 |
20 |
60 |
4/6 |
|
SFR035-040-450/550 |
3.1-3.5 |
3.1-3.5 |
20 |
60 |
4/6 |
|
SFR041-045-450/550 |
3.6-4.0 |
3.6-4.0 |
20 |
60 |
4/6 |
|
SFR046-050-450/550 |
4.1-4.5 |
4.1-4.5 |
25 |
75 |
4/6 |
|
SFR051-055-450/550 |
4.6-5.0 |
4.6-5.0 |
25 |
75 |
4/6 |
|
SFR056-060-450/550 |
5.1-5.5 |
5.1-5.5 |
25 |
75 |
4/6 |
|
SFR061-065-450/550 |
5.6-6.0 |
5.6-6.0 |
25 |
75 |
4/6 |
|
SFR066-070-450/550 |
6.6-7.0 |
6.6-7.0 |
30 |
100 |
4/6 |
|
SFR071-075-450/550 |
7.1-7.5 |
7.1-7.5 |
30 |
100 |
4/6 |
|
SFR076-080-450/550 |
7.6-8.0 |
7.6-8.0 |
30 |
100 |
4/6 |
|
SFR081-085-450/550 |
8.1-8.5 |
8.1-8.5 |
30 |
100 |
4/6 |
|
SFR086-090-450/550 |
8.6-9.0 |
8.6-9.0 |
30 |
100 |
4/6 |
|
SFR091-095-450/550 |
9.1-9.5 |
9.1-9.5 |
30 |
100 |
4/6 |
|
SFR096-100-450/550 |
9.3-10.0 |
9.3-10.0 |
30 |
100 |
4/6 |
|
SFR101-105-450/550 |
10.1-10.5 |
10.1-10.5 |
30 |
100 |
4/6 |
|
SFR106-110-450/550 |
10.6-11.0 |
10.6-11.0 |
30 |
100 |
4/6 |
|
SFR111-115-450/550 |
11.1-11.5 |
11.1-11.5 |
30 |
100 |
4/6 |
|
SFR116-120-450/550 |
11.6-12.0 |
11.6-12.0 |
30 |
100 |
4/6 |

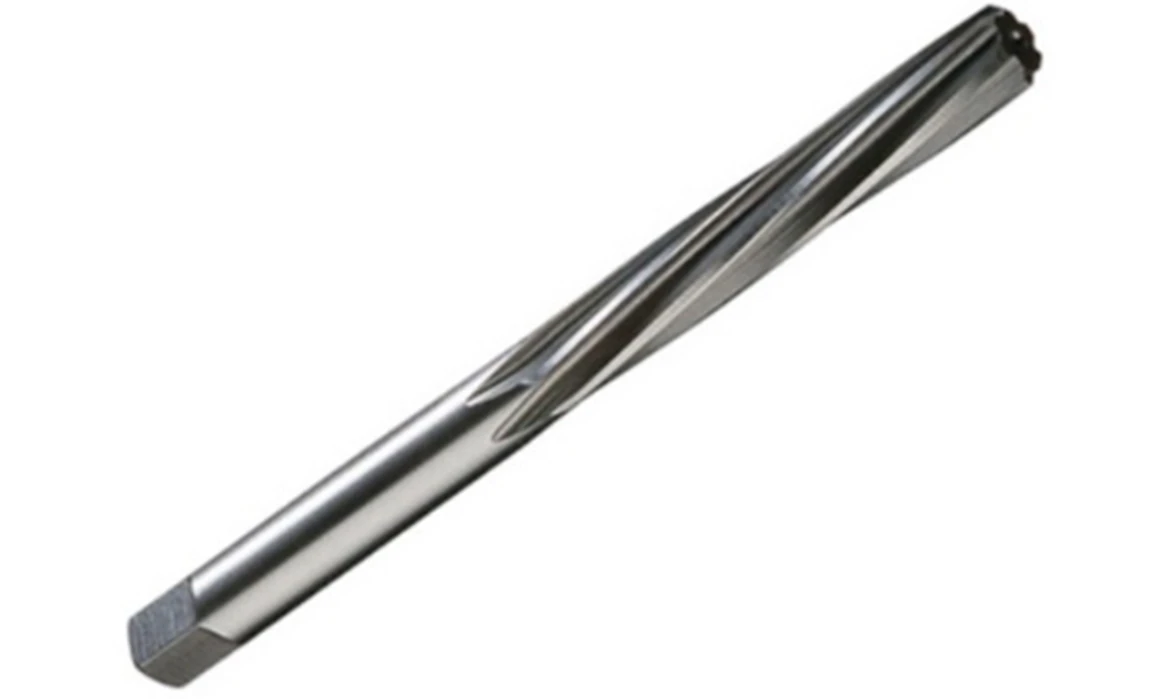

100% Real Shot Photos:
Applications:
1.Chip Evacuation: The helical flutes of spiral flute reamers allow for efficient removal of chips from the hole being reamed. This is particularly useful in deep-hole reaming applications where chip evacuation can be challenging.
2.High-Speed Machining: Spiral flute reamers are designed to handle high-speed machining operations. The helical flutes help in preventing chip buildup and reducing the risk of tool breakage, allowing for faster and more efficient machining.
3.Improved Surface Finish: The helical flute design helps in achieving a smoother surface finish inside the hole. This is important in applications where a high-quality surface finish is required, such as in the aerospace and medical industries.
4.Accuracy and Precision: Spiral flute reamers are capable of providing accurate and precise hole dimensions. The helical flutes help in guiding the reamer through the hole uniformly, ensuring consistent sizing and tolerances.
5.Versatility: Spiral flute reamers can be used in a wide range of materials, including metals, plastics, and composites. Their versatility makes them suitable for various industries and applications.
6.Deep-Hole Reaming: Due to their efficient chip evacuation capabilities, spiral flute reamers are commonly used in deep-hole reaming applications where chips need to be removed from deep recesses.
7.Long Tool Life: The helical flute design reduces friction and heat generation during the cutting process, leading to a longer tool life. This can result in cost savings for manufacturing operations.
8.Automated Machining: Spiral flute reamers can be used in automated machining processes where consistent and reliable performance is essential. The efficient chip evacuation helps in preventing clogs and interruptions during automated operations.
In summary, spiral flute reamers are specialized cutting tools designed for efficient chip evacuation, high-speed machining, improved surface finish, and precision hole sizing. Their applications range from general machining to specific industries like aerospace, automotive, and medical, where high-quality, accurate holes are critical for the performance of components.
