Straight Flute Reamer
Grade: CQ450 CQ550
Raw material: Original tungsten carbide
Grain Size: Micro grain 0.6μ
Product Details
Product Name: Solid Carbide Straight Flute Reamers
Model Number: SCR-450/550
Product Parameters:
1. Brand name: CQ CUTOOL
2. Place of origin: Guangdong of China
3. Grade: CQ450 CQ550
4. Raw material: Original tungsten carbide
5. Grain Size: Micro grain 0.6μ
6. Type: Carbide reamers, Straight flute reamers
7. Flute: 4/6 Flute
8. Machine or Hand: Machine reamer
9. Diameter: 1.0-12.0mm
10. Overall Length: 50-100mm
11. Coating/Coverage: AlTiN, TiAlN coated
12. Tolerance: H6
13. HRC: for 45HRC-55HRC work material
14. Controlling mode: CNC, High speed lathe
15. Work material: Cast iron, Steel, Alloy, Stainless steel
Main Features:
Made of high hardness raw carbide material, high durable and strength, very high cost-performance. Suitable for different metals reaming such as steel, cast iron, alloy steel, stainless steel, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.
Specifications:
|
Part Number |
Dia/mm |
Shank/mm |
Flute Length/mm |
Overall Length/mm |
Flute |
|
SCR010-019-450/550 |
1.0-1.9 |
1.0-1.9 |
15 |
50 |
4/6 |
|
SCR020-025-450/550 |
2.0-2.5 |
2.0-2.5 |
15 |
50 |
4/6 |
|
SCR026-030-450/550 |
2.6-3.0 |
2.6-3.0 |
20 |
60 |
4/6 |
|
SCR035-040-450/550 |
3.1-3.5 |
3.1-3.5 |
20 |
60 |
4/6 |
|
SCR041-045-450/550 |
3.6-4.0 |
3.6-4.0 |
20 |
60 |
4/6 |
|
SCR046-050-450/550 |
4.1-4.5 |
4.1-4.5 |
25 |
75 |
4/6 |
|
SCR051-055-450/550 |
4.6-5.0 |
4.6-5.0 |
25 |
75 |
4/6 |
|
SCR056-060-450/550 |
5.1-5.5 |
5.1-5.5 |
25 |
75 |
4/6 |
|
SCR061-065-450/550 |
5.6-6.0 |
5.6-6.0 |
25 |
75 |
4/6 |
|
SCR066-070-450/550 |
6.6-7.0 |
6.6-7.0 |
30 |
100 |
4/6 |
|
SCR071-075-450/550 |
7.1-7.5 |
7.1-7.5 |
30 |
100 |
4/6 |
|
SCR076-080-450/550 |
7.6-8.0 |
7.6-8.0 |
30 |
100 |
4/6 |
|
SCR081-085-450/550 |
8.1-8.5 |
8.1-8.5 |
30 |
100 |
4/6 |
|
SCR086-090-450/550 |
8.6-9.0 |
8.6-9.0 |
30 |
100 |
4/6 |
|
SCR091-095-450/550 |
9.1-9.5 |
9.1-9.5 |
30 |
100 |
4/6 |
|
SCR096-100-450/550 |
9.3-10.0 |
9.3-10.0 |
30 |
100 |
4/6 |
|
SCR101-105-450/550 |
10.1-10.5 |
10.1-10.5 |
30 |
100 |
4/6 |
|
SCR106-110-450/550 |
10.6-11.0 |
10.6-11.0 |
30 |
100 |
4/6 |
|
SCR111-115-450/550 |
11.1-11.5 |
11.1-11.5 |
30 |
100 |
4/6 |
|
SCR116-120-450/550 |
11.6-12.0 |
11.6-12.0 |
30 |
100 |
4/6 |

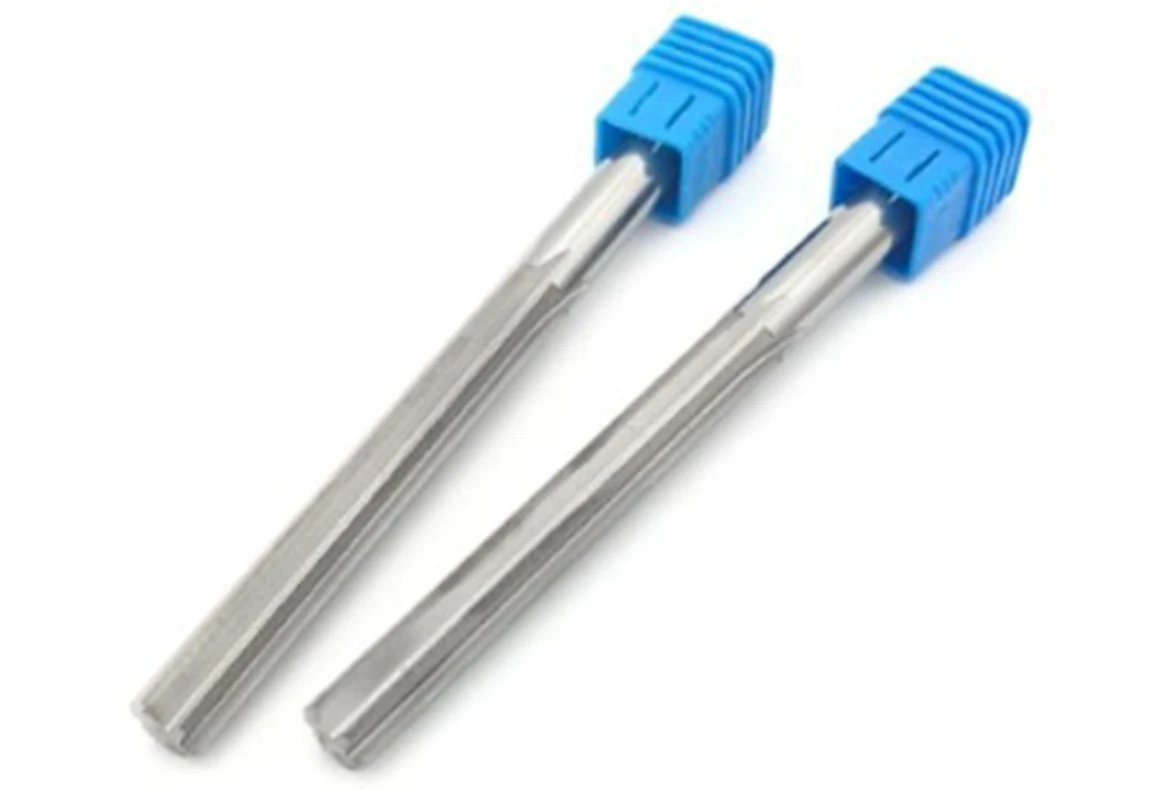

100% Real Shot Photos:
Applications:
Solid carbide straight flute reamers are cutting tools used in machining processes to improve the accuracy and surface finish of holes in various materials, including metal, plastic, and composites. These reamers have straight flutes without helical edges and are made from solid carbide, a durable and hard material that allows for high-speed machining operations. Here are some common applications of solid carbide straight flute reamers:
1.Hole Sizing and Finishing: Reamers are often used to achieve precise hole dimensions and smooth finishes. After drilling a hole, a reamer can be used to remove a small amount of material to ensure the hole meets the required size and tolerance specifications.
2.High Precision Machining: Solid carbide reamers are capable of high precision, making them ideal for applications where accuracy is crucial, such as in aerospace and automotive industries.
3.Batch Production: In mass production scenarios, reamers are valuable tools for maintaining consistency across a large number of parts. They ensure that each part has the same accurately sized and finished hole.
4.Metalworking: Reamers are extensively used in metalworking operations where precision holes are necessary, such as in the production of engine components, gears, and bearings.
5.Composite Materials: Solid carbide reamers are also suitable for machining composite materials like carbon fiber-reinforced plastics. These materials are commonly used in aerospace and automotive industries for their lightweight and high-strength properties.
6.Tool and Die Making: Reamers are used in the production of molds, dies, and other tooling components where high precision and surface finish are required for producing intricate shapes.
7.Maintenance and Repair: Reamers are utilized in maintenance and repair tasks to refurbish worn-out or damaged holes. By using a reamer, the hole can be restored to its original specifications without the need for extensive material removal.
8.Woodworking: While less common in woodworking compared to metalworking, reamers can also be used to ensure accurate hole sizing and finishing in wood applications.
In summary, solid carbide straight flute reamers are versatile tools used in various industries for achieving precise, high-quality holes in different materials. Their applications range from manufacturing to maintenance, where accuracy and surface finish are paramount.
