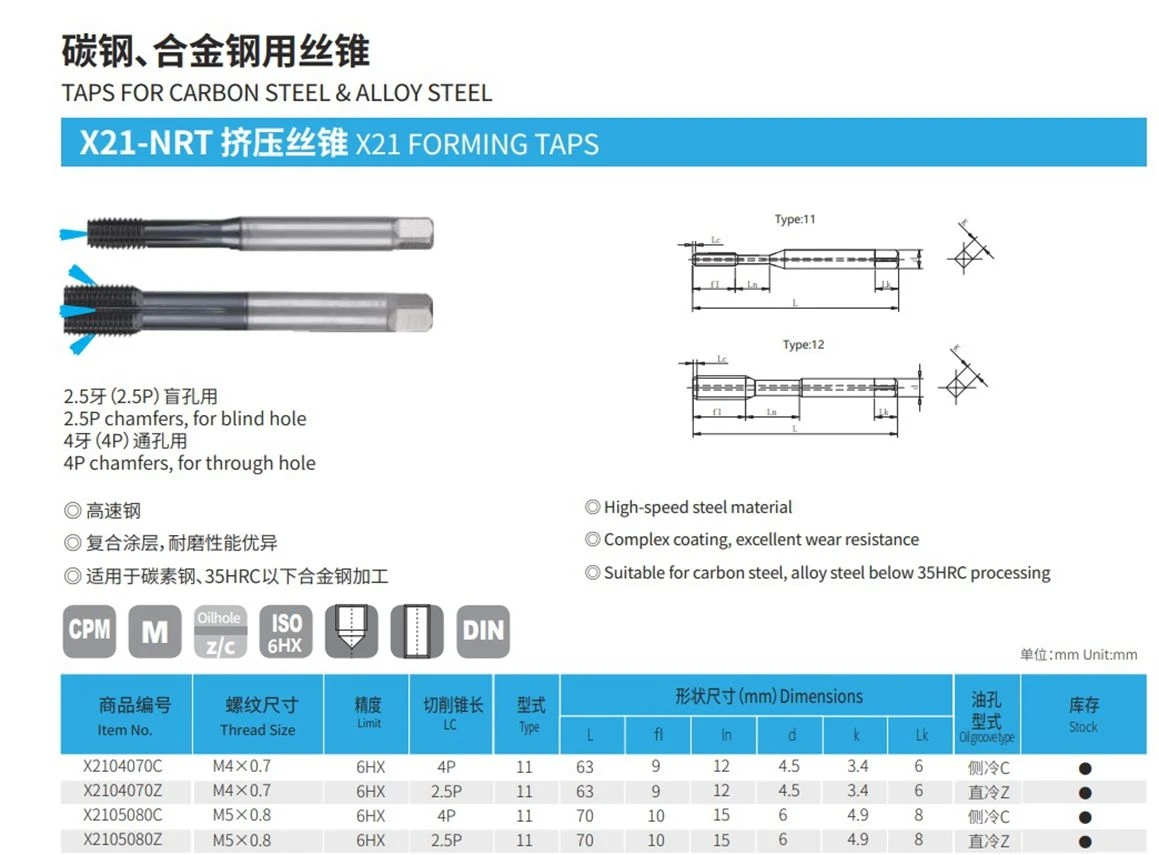

X21 Forming Taps

Product Name: Forming Taps

Model name: X21 FORMING TAPS

Application: 2.5P chamfer for blind holes with 2.5P teeth (2.5p), for blind holes with 4p teeth (4p), for through-hole with 4p chamfers, for through hole

Workpiece: High-speed steel material; Complex coating, excellent wear resistance; Suitable for carbon steel, alloy steel below 35HRC processing

Brand name: CQ CUTOOL

1.Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer

2. Smooth and Wide Flute: Smooth and wide flute will remove the cuttings more easily

3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing

4. Bronze Coating: Under bronze coating, any abrasion is easy to be recognized

5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten

6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved

Note:
Forming Tap / Roll Tap wiretapping is a plastic forming method in which the grinding material is embossed in the lower hole to form a thread. Therefore, no chipping occurs, and there is no chip flute, so it is also called a ditchless (chip) wiretap. This tapping does not damage the thread or the tapping due to problems such as chipping. Extrusion tapping is best suited for plastic materials such as aluminum, copper, zinc, brass and mild steel. When using the extrusion tapping, the size of the lower hole must be selected according to the precision requirements, so that the high-precision, high-quality thread can be molded. For the material characteristics and coating conditions, we have a variety of different precision grades.

Can you produce according to the samples?

Yes, we can produce as your samples or technical drawings. We can make molds and fixtures for special models.

Are you a factory?

Yes, we are a CNC cutting tools company that integrates industry and trade, we are a leading manufacturer and supplier of high-quality cutting tools for CNC (Computer Numerical Control) machines. Our factory is equipped with state-of-the-art technology and a skilled workforce to deliver precision tools that meet the diverse needs of our customers.

Your products range?

We offer a wide range of cutting tools designed to cater to various machining applications. Our product portfolio includes:

1.End Mills: We manufacture a variety of end mills, including square end mills, ball nose end mills, corner radius end mills, and roughing end mills. These tools are essential for milling operations and provide excellent cutting performance and durability.

2.Drills: Our drill selection includes twist drills, center drills, spotting drills, and step drills. These tools are designed to create holes with precision and efficiency in different materials.

3.Inserts: We produce a comprehensive range of inserts, such as turning inserts, milling inserts, and threading inserts. These inserts are made from high-quality materials and are known for their excellent cutting performance and long tool life.

4.Reamers: Our reamers are used for enlarging and finishing existing holes to precise dimensions. We offer a variety of reamers, including hand reamers, machine reamers, and adjustable reamers.

5.Tool Holders: We provide a wide selection of tool holders, including collet chucks, end mill holders, and drill chucks. These holders ensure secure tool clamping and accurate machining results.
