DVJNR/L External Turning Tools

Product name: DVJNR/L External Turning Tools

Brand：CQ CUTOOL

Model NO.：DVJNR1616H16 2020K16 2525M16 3232P16

Material：Hard Alloy

Certification：ISO 9001:2008

Usage：External Turning Tool

Approach Angle：95 Degree

Clearance Angle of Inserts：0 Degree

Size of Shank：20mm/25mm/32mm

Length：125mm/150mm/170mm

Transport Package：Strengthen Package for Overseas

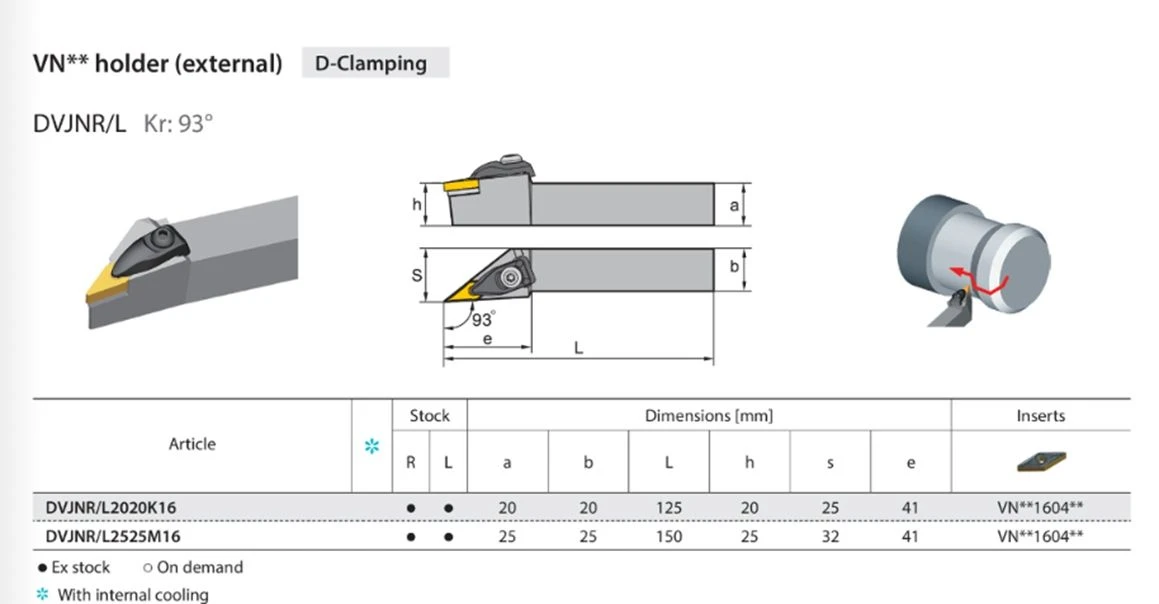

External Tool Holder Code System (ISO Standard)

01. Application: External Turning Tools Holder

02. ISO Designation:

DVJNR/L1616H16 Suitable for VN_ _1604_ _(Size:W16mm*H16mm*L100mm)

DVJNR/L2020K16 Suitable for VN_ _1604_ _(Size:W20mm*H20mm*L125mm)

DVJNR/L2525M16 Suitable for VN_ _1604_ _(Size:W25mm*H25mm*L155mm)

DVJNR/L3232P16 Suitable for VN_ _1604_ _(Size:W32mm*H32mm*L170mm)

03. Clamping Method: Top and hole clamping

04. Please click the following link if you wanna to buy Carbide Inserts.

For Steel VNMG160404/08/12 EC8030

For Cast Iron VNMG160404/08/12 EC9020
For Stainless Steel VNMG160404/08/12 EP6350

05. Approach Angle: 95 Degree

06. Clearance Angle of Inserts: 0 Degree

07. Package: Germany Rose Brand Package

08. Material: 42CrMo (Alloy Spring Steel)

09. Hardness: HRC45-50

10. Color: Grey

11.Grooss Weight:350g~1500g

11.Package Included:

1 piece of tool holder

1 piece of wrench

DVJNR/L external turning tools are specific types of turning tools designed for external turning operations on lathes or turning machines. Here's some additional information about these tools:

1.Tool Type: DVJNR/L tools are primarily external turning tools, meaning they are used to remove material from the outer surface of a workpiece.

2.Material: Like many turning tools, DVJNR/L tools are often made from high-quality materials such as carbide, high-speed steel (HSS), or various grades of tool steel. The specific material chosen depends on factors such as the type of material being machined, cutting conditions, and desired tool life.

3.Geometry: The geometry of DVJNR/L turning tools is optimized for external turning operations. This includes factors such as rake angle, clearance angle, and chip breaker design, which influence cutting performance and chip control.

4.Handedness: The "L" in DVJNR/L indicates that these tools are left-handed, meaning they cut when moving from left to right. Right-handed tools would be designated with an "R" instead.

5.Inserts: DVJNR/L tools typically use indexable inserts that can be replaced when worn or damaged. These inserts come in various shapes, sizes, and cutting materials to suit different machining applications and workpiece materials.

6.Applications: DVJNR/L external turning tools are suitable for a wide range of external turning applications, including roughing, finishing, and profiling operations on materials such as steel, stainless steel, cast iron, and non-ferrous metals.

7.Compatibility: These tools are designed to be compatible with standard tool holders and tooling systems commonly used in lathe or turning machine setups. This allows for easy integration into existing machining processes.

8.Performance: DVJNR/L turning tools are known for their performance in terms of cutting efficiency, surface finish quality, and tool life. Proper selection of cutting parameters, tooling setup, and insert choice can further enhance performance in specific machining scenarios.

Can you produce according to the samples?

Yes, we can produce as your samples or technical drawings. We can make molds and fixtures for special models.

Are you a factory?

Yes, we are a CNC cutting tools company that integrates industry and trade, we are a leading manufacturer and supplier of high-quality cutting tools for CNC (Computer Numerical Control) machines. Our factory is equipped with state-of-the-art technology and a skilled workforce to deliver precision tools that meet the diverse needs of our customers.

Your products range?

We offer a wide range of cutting tools designed to cater to various machining applications. Our product portfolio includes:

1.End Mills: We manufacture a variety of end mills, including square end mills, ball nose end mills, corner radius end mills, and roughing end mills. These tools are essential for milling operations and provide excellent cutting performance and durability.

2.Drills: Our drill selection includes twist drills, center drills, spotting drills, and step drills. These tools are designed to create holes with precision and efficiency in different materials.

3.Inserts: We produce a comprehensive range of inserts, such as turning inserts, milling inserts, and threading inserts. These inserts are made from high-quality materials and are known for their excellent cutting performance and long tool life.

4.Reamers: Our reamers are used for enlarging and finishing existing holes to precise dimensions. We offer a variety of reamers, including hand reamers, machine reamers, and adjustable reamers.

5.Tool Holders: We provide a wide selection of tool holders, including collet chucks, end mill holders, and drill chucks. These holders ensure secure tool clamping and accurate machining results.

Hot Tags: dvjnr/l external turning tools, China dvjnr/l external turning tools manufacturers, suppliers, factory
