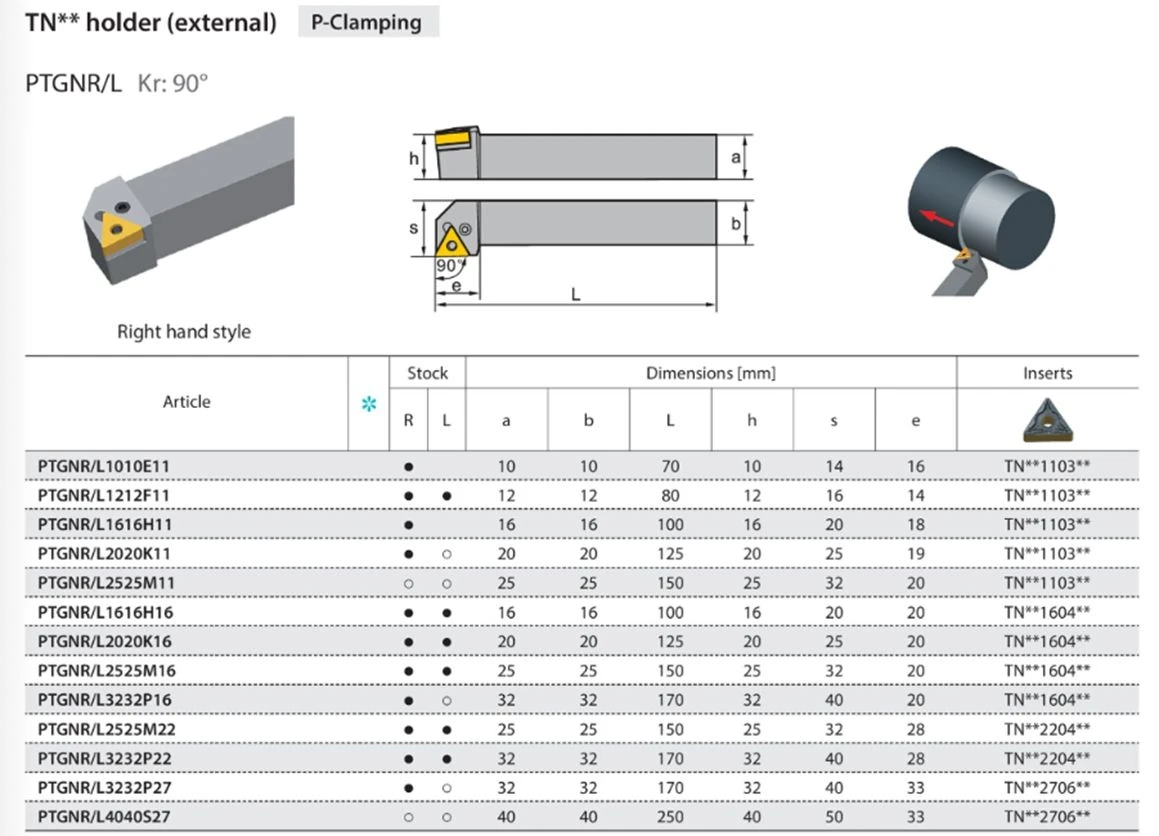

PTGNR/L External Turning Tools

Product name: PTGNR/L External Turning Tools

Brand：CQ CUTOOL

Model NO.：PTGNL

Approach Angle:95 Degree

Usage: External Turning Tool

Clearance Angle of Inserts:0 Degree

Length: 100mm/125mm/150mm/170mm

Materials: Hard Alloy

Hardness: 42CrMo (HRC45-50) Grey

PTGNR/L external turning tools are tools used in lathe operations for external turning processes. Let's break down the term:

1.PTGNR/L: This is a designation often used to specify a particular type of turning tool. Each letter in the designation has a specific meaning:

● P: This likely denotes the shape or type of the tool. In this case, it could indicate a turning tool.

● T: This may indicate the type of tool holder or mounting system.

● GN: These letters may indicate specific features or variations of the tool. Without additional context or a specific catalog reference, it's hard to determine the exact meaning.

● R/L: This could denote the hand of the tool. 'R' could stand for right-handed tool, and 'L' could stand for left-handed tool.

2.External Turning: This refers to the process of machining the outer surface of a workpiece on a lathe. External turning tools are used to remove material from the outer diameter of a rotating workpiece to achieve desired dimensions, surface finish, and shape.

PTGNR/L external turning tools are a type of cutting tool primarily used in metalworking and machining processes for turning operations on external surfaces of a workpiece. Here's some more detailed information about these tools:

1.Tool Geometry: PTGNR/L external turning tools typically have a triangular or rhombic shaped insert, made of hard material like carbide or cermet, which is mounted onto the tool holder. The cutting edge of the insert is carefully designed to efficiently remove material during the turning process.

2.Tool Holder: The tool holder for PTGNR/L turning tools is usually designed to provide stability and rigidity during cutting operations. It also allows for precise positioning of the cutting edge relative to the workpiece.

3.Insert Design: The inserts used in PTGNR/L turning tools come in various grades and geometries suited for different machining applications and workpiece materials. These inserts are replaceable, allowing for easy maintenance and versatility in machining operations.

4.Coolant Delivery: Many PTGNR/L turning tools come with provisions for coolant delivery to aid in chip evacuation and cooling of the cutting edge during machining. Proper coolant delivery can significantly improve tool life and machining efficiency.

5.Applications: PTGNR/L external turning tools are commonly used for roughing and finishing operations on external cylindrical surfaces, such as shafts, pins, and flanges. They are suitable for use on a wide range of materials including steel, stainless steel, aluminum, and various alloys.

6.Performance: These tools are known for their high cutting speeds and feed rates, which contribute to increased productivity in machining operations. The choice of insert grade and geometry can further enhance performance in terms of tool life and surface finish.

7.Versatility: PTGNR/L turning tools are versatile and can be used on both CNC (Computer Numerical Control) and manual lathes. They can also be employed in a variety of turning operations including facing, profiling, and contouring.

8.Manufacturer Variations: Various manufacturers produce PTGNR/L turning tools, each offering their own proprietary designs, materials, and coatings. It's essential to consider factors like tool material, coating, and geometry when selecting the appropriate tool for a specific machining task.

Can you produce according to the samples?

Yes, we can produce as your samples or technical drawings. We can make molds and fixtures for special models.

Are you a factory?

Yes, we are a CNC cutting tools company that integrates industry and trade, we are a leading manufacturer and supplier of high-quality cutting tools for CNC (Computer Numerical Control) machines. Our factory is equipped with state-of-the-art technology and a skilled workforce to deliver precision tools that meet the diverse needs of our customers.

Your products range?

We offer a wide range of cutting tools designed to cater to various machining applications. Our product portfolio includes:

1.End Mills: We manufacture a variety of end mills, including square end mills, ball nose end mills, corner radius end mills, and roughing end mills. These tools are essential for milling operations and provide excellent cutting performance and durability.

2.Drills: Our drill selection includes twist drills, center drills, spotting drills, and step drills. These tools are designed to create holes with precision and efficiency in different materials.

3.Inserts: We produce a comprehensive range of inserts, such as turning inserts, milling inserts, and threading inserts. These inserts are made from high-quality materials and are known for their excellent cutting performance and long tool life.

4.Reamers: Our reamers are used for enlarging and finishing existing holes to precise dimensions. We offer a variety of reamers, including hand reamers, machine reamers, and adjustable reamers.

5.Tool Holders: We provide a wide selection of tool holders, including collet chucks, end mill holders, and drill chucks. These holders ensure secure tool clamping and accurate machining results.
