Carbide Mill Insert

Product Name: Carbide Mill Insert

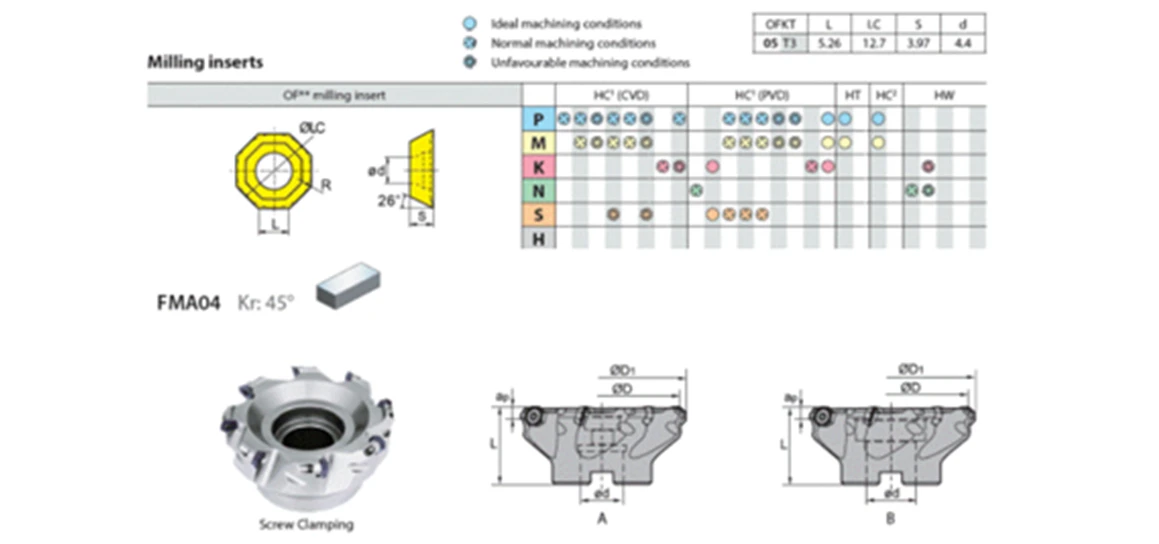

Category: OFKT
Common sizes: OFKT05

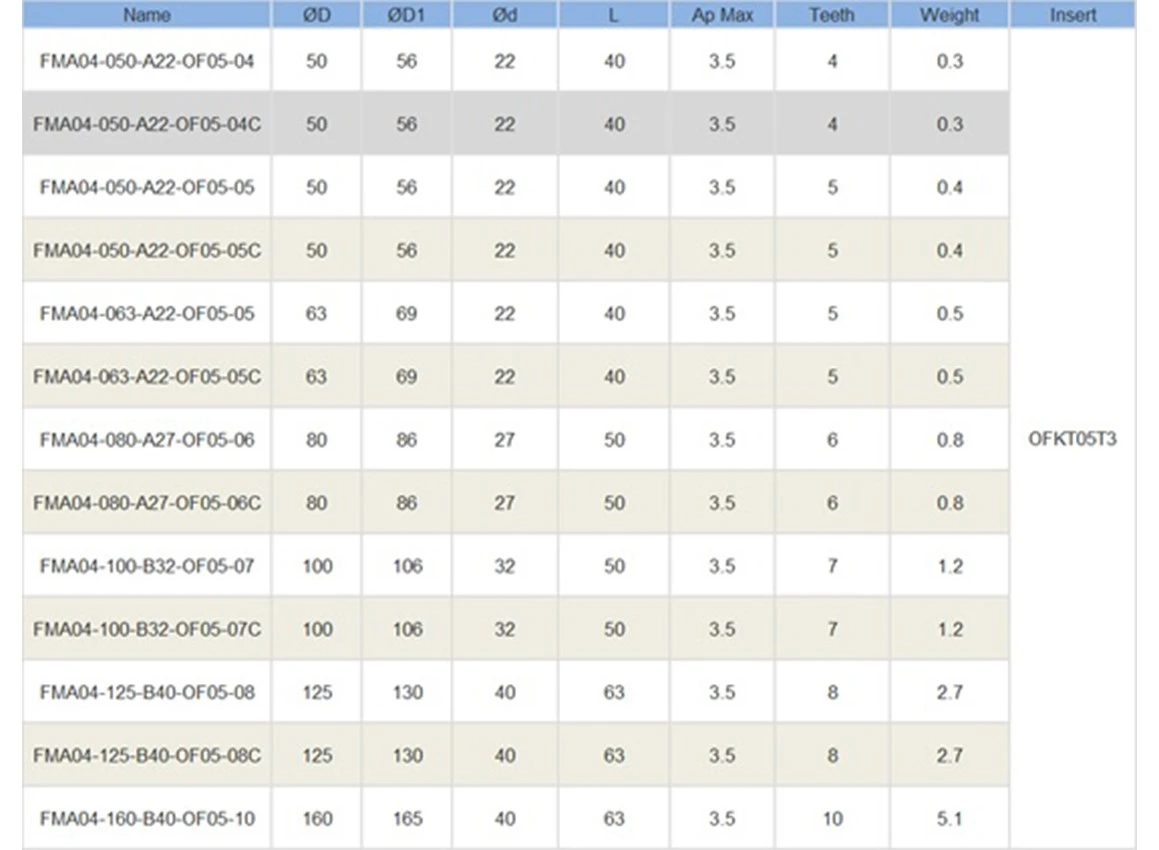

Applicable tool: FMA04
Chip-breakers: -DF, -DM, -LH
Brand: CQ CUTOOL

Generally, milling is best suited as a secondary or finishing process for an already machined workpiece, providing definition to or producing the part’s features, such as holes, slots, and threads. However, the process is also used to shape a stock piece of material from start to finish. In both cases, the milling process gradually removes material to form the desired shape and form of the part. First, the tool cuts chips off the workpiece to form the approximate shape and form. Then, the workpiece undergoes the milling process at much higher accuracy and with greater precision to finish the part with its exact features and specifications. Typically, a completed part requires several machining passes to achieve the desired precision and tolerances. For more geometrically complex parts, multiple machine setups may be required to complete the fabrication process. Once the milling operation is completed, and the part is produced to the custom-designed specifications, the milled part passes to the finishing and post-processing stages of production.

1. Face Milling:

● Carbide mill inserts are used in face milling operations to produce flat surfaces on the workpiece. They are ideal for high-speed face milling of various materials, including steel, stainless steel, and cast iron.

2. Shoulder Milling:

● Carbide inserts are employed in shoulder milling to create shoulders or steps on the workpiece. This application is common in industries where parts require precise shoulder features.

3. Peripheral Milling:

● Carbide inserts are used for peripheral milling to create complex profiles, slots, and contours around the periphery of the workpiece. This process is essential in the production of components with intricate shapes.

4. Slot Milling:

● Carbide inserts are suitable for slot milling operations where slots or grooves are machined into the workpiece. These inserts can handle various slot widths and depths.

5. High-Speed Machining (HSM):

● Carbide mill inserts are often used in high-speed machining applications where high material removal rates and precision are required. They can withstand the cutting forces and heat generated during high-speed milling operations.

6. Roughing Operations:

● Carbide inserts are employed in roughing operations to remove a large volume of material quickly. They are designed to handle aggressive cutting and are suitable for rough milling of various materials.

7. Finishing Operations:

● Carbide mill inserts with sharp cutting edges and high precision are used for finishing operations to achieve tight tolerances and smooth surface finishes on the workpiece.

8. Thread Milling (with Specialized Inserts):

● Specialized carbide inserts with threading profiles are used for thread milling operations. They can produce both internal and external threads with high accuracy.

9. Helical Interpolation:

● Carbide inserts are utilized in helical interpolation, a process where the tool follows a helical path to create features like holes or threads. This technique is common in aerospace and automotive industries.

10. Milling Hardened Materials:

● Carbide inserts, especially those with specific coatings and geometries, are used for milling hardened materials like hardened steel or cast iron. They offer excellent wear resistance in such demanding applications.
