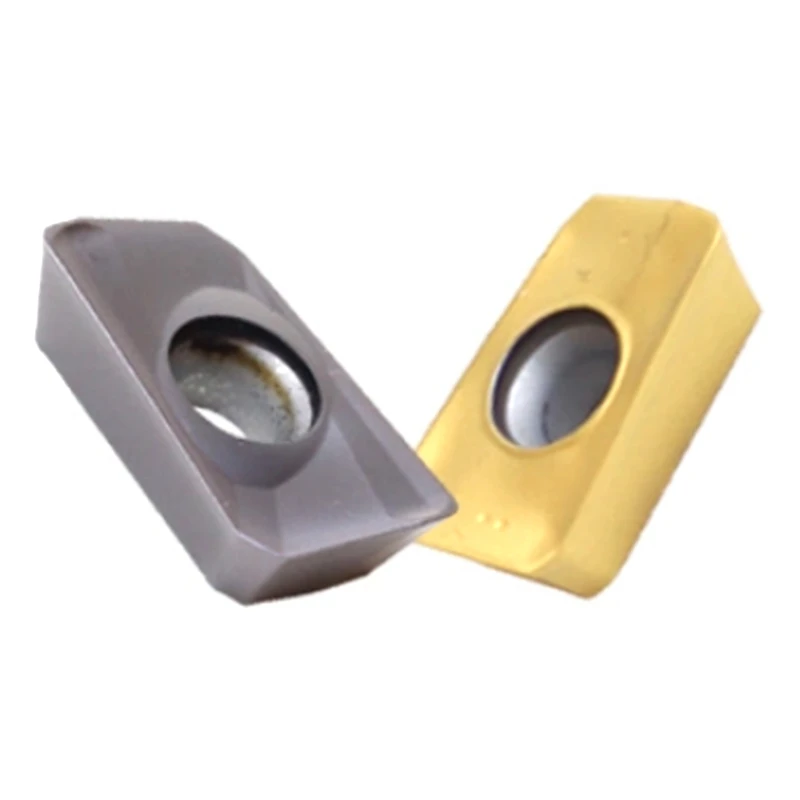

Shoulder Mill Insert
Category: APKT
Common sizes: APKT11, APKT16
Applicable tool: EMP01
Basic Information:
Product Name: Shoulder milling
Category: APKT
Common sizes: APKT11, APKT16
Applicable tool: EMP01

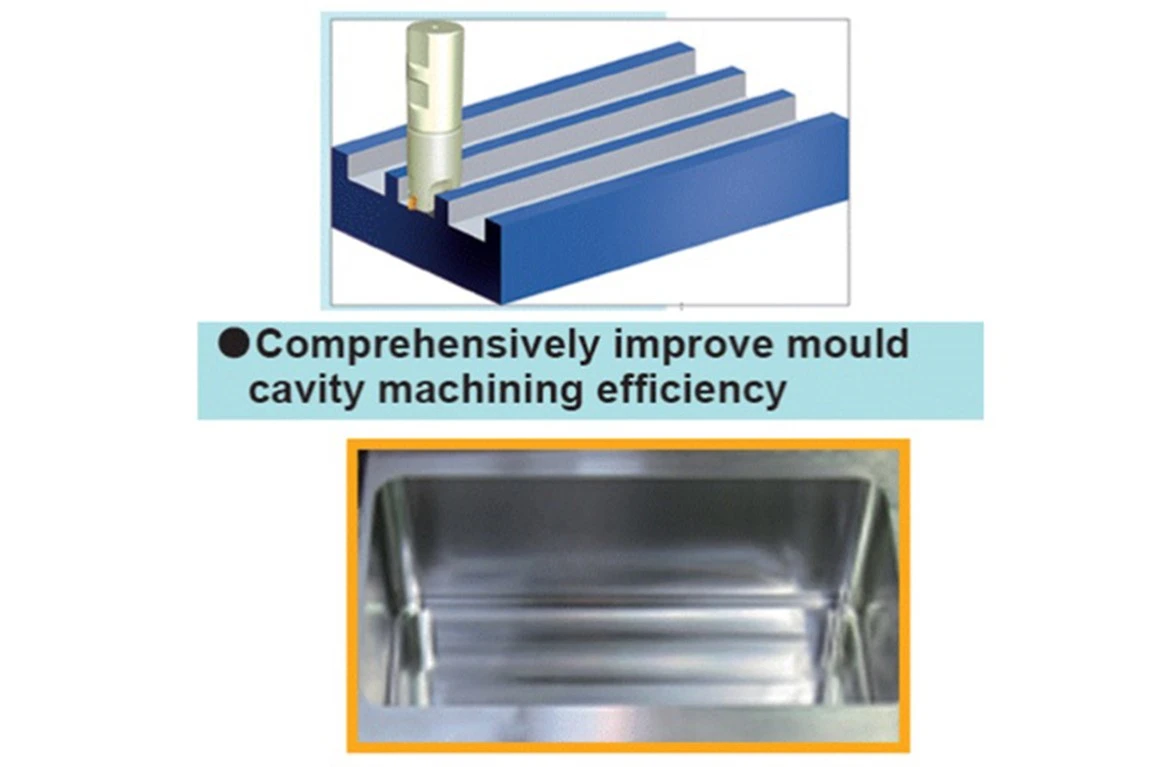

Application: Step shoulder, slot milling, ramp milling, helical machining
Chip-breaker: -APF, -APM, -ALH
Product Introduction:

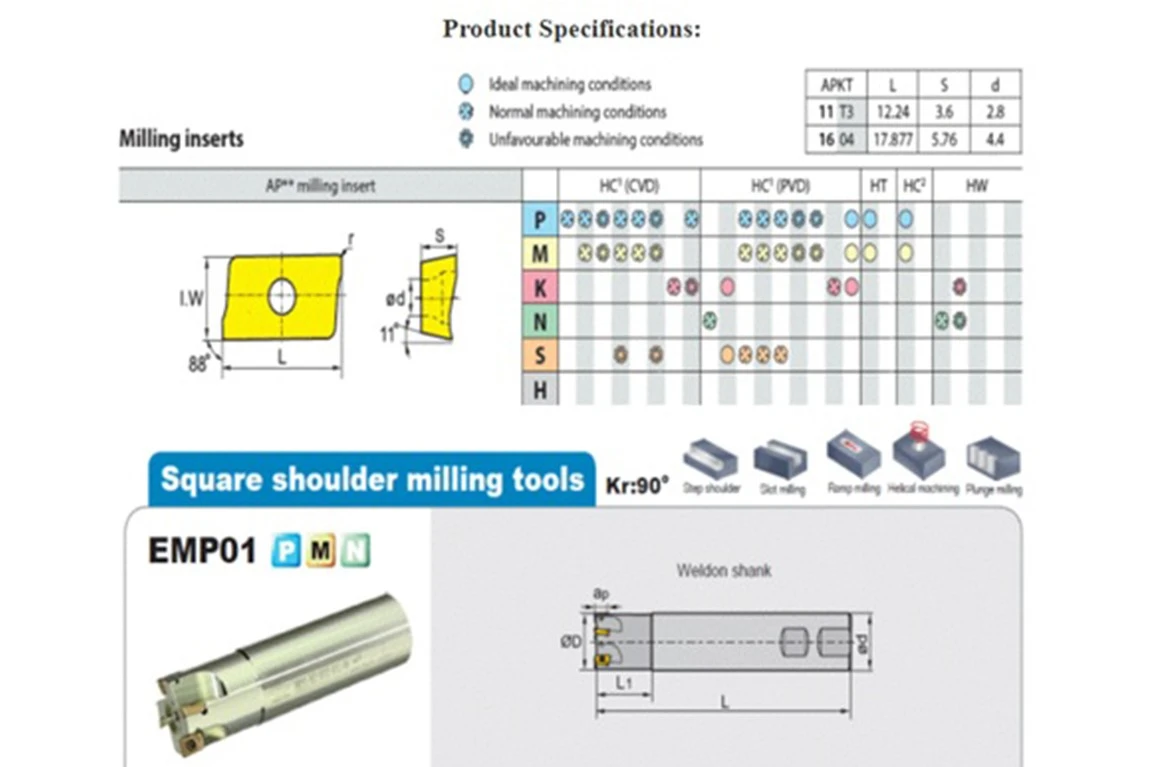

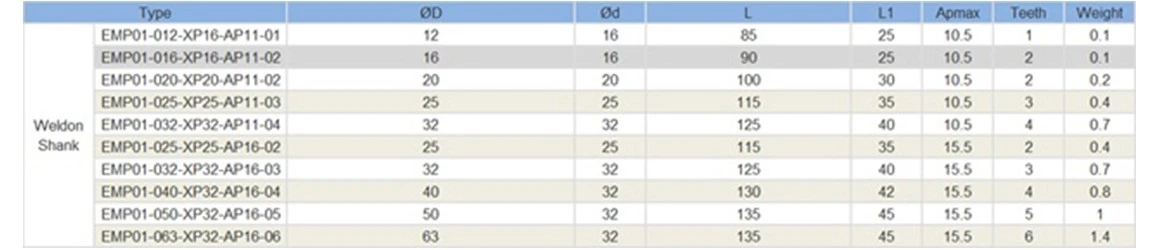

The EMP01 series has two mounting styles of straight shank and Weldon shank with a diameter range from 12mm to 63mm. It is perfectly designed for 90°square shoulder milling, slot milling, ramp milling, etc. The inserts designed with wipers which are suitable for face milling. And the 3D helical cutting edge can deal with less cutting force. In the past, blade type brazed tools were widely used, but recently there has been more f a focus on reducing tool costs and improving machining accuracy. And as such most face milling, shoulder milling cutters are using indexable inserts with wedge type clamping or screw-on type clamping to achieve high-quality machining. Our APKT inserts will be your premium choice for shoulder milling.
Case for EMP01:
Machine: Vertical machining center
Diameter: Ø40mm
Operation: Interpolation milling
Insert: APKT160408-APM/YB9320
Workpiece material: P20(HRC 33-36)
Cutting data：
Vc=150m/min
F= 0.2mm/z

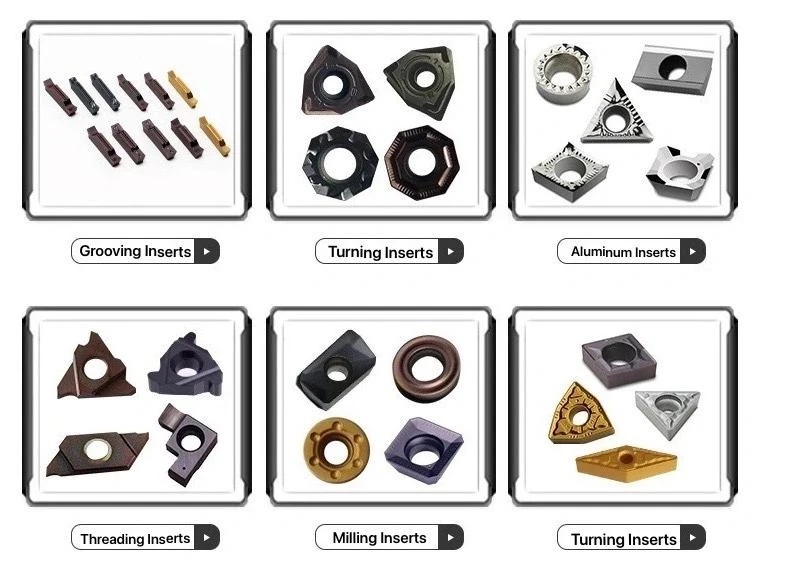

Our Other Major Products:
Milling Inserts: APMT APKT RDMT RPMT LNMU BLMP SEKT SDMT SOMT SEKN SEEN SPKN TPKN TPKR TPMR 3PKT WNMU SNMU ONMU AOMT JDMT R390 BDMT
Turning Inserts: CNMG CCMT SNMG SCMT WNMG TNMG TCMT DCMT DNMG
VNMG VBMT KNUX
Grooving Inserts: MGMN MRMN N151 N123 ZTFD TDC2 TDC3 TDC4
Inserts for Aluminum: APGT APKT CCGT DCGT VCGT RCGT SCGT SEHT TCGT ZTED
Threading Inserts: 11IR 11ER 16ER 16IR 22ER 22IR
U drill Inserts: SPMT WCMX WCMT
Cast iron Inserts: CNMA DNMA SNMA TNMA VNMA WNMA
If the above products are exactly what you need, pls feel free to contact us!
