High Speed Mill Insert

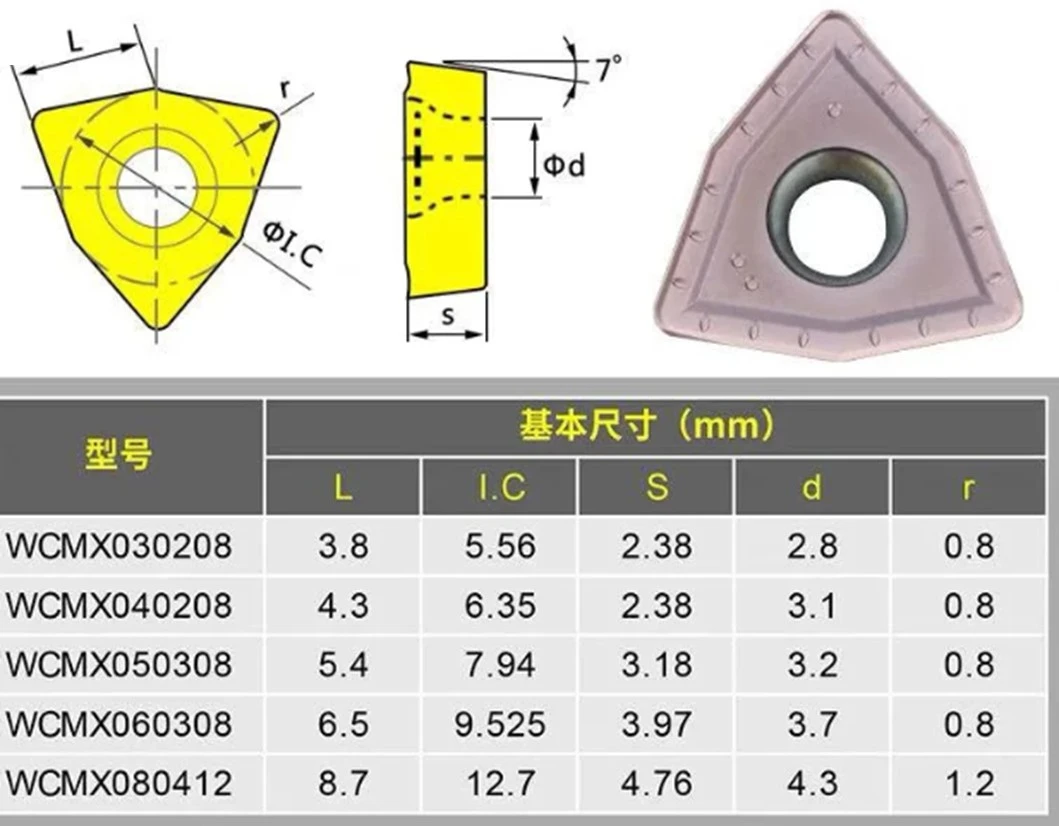

Product Name: Tungsten Carbide Indexable High Speed Inserts WCMX 06T308/ WCMT 030208 Turning U Drill Insert

Model NO.：WCMX 06T308/ WCMT 030208

Material：Stainless Steel

Certification: ISO 9001:2008, ISO 9001:2000, GS, CE

Processing：Finishing, Semi-Finishing and Rough

Features：Low Price/High Quality and Fast Delivery

Transport Package：Carton

Transport Package：Plastic Box/Carton

Specification：Customized

High Speed U Drill Inserts WCMT/WCMX for Cemented Carbide Inserts
Description of Carbide Inserts
Carbide inserts are replaceable and usually indexable bits of cemented carbide used in machining steels, cast iron, high temperature alloys, and nonferrous materials. Carbide inserts allow faster machining and leave better finishes on metal parts. Carbide inserts can withstand higher temperatures than high speed steel tools.

Tungsten Carbide Indexable High-Speed Inserts, such as the WCMX 06T308, are known for their exceptional strength and durability, making them suitable for high-speed machining operations. Here are the key features that contribute to their strength:

1.Hardness: Tungsten carbide inserts are incredibly hard, often reaching a hardness level that is close to that of diamond. This hardness allows them to withstand high cutting temperatures and resist wear even under challenging machining conditions.

2.Wear Resistance: Tungsten carbide inserts, including the WCMX 06T308, have excellent wear resistance. This property ensures that the cutting edges maintain their sharpness over prolonged periods, leading to longer tool life and consistent performance.

3.Toughness: Despite their hardness, tungsten carbide inserts also possess a degree of toughness. This toughness allows them to absorb shock and resist chipping or fracturing during heavy cutting or interrupted machining operations.

4.High Temperature Resistance: Tungsten carbide inserts can withstand high temperatures generated during high-speed machining without losing their hardness or becoming deformed. This high-temperature resistance is crucial for maintaining cutting efficiency and tool life.

5.Chemical Stability: Tungsten carbide is chemically stable and does not react with most materials at high temperatures. This stability ensures that the insert remains intact and does not degrade when exposed to various cutting fluids and workpiece materials.

6.Precision Machining: Tungsten carbide inserts can be precisely manufactured with intricate geometries and sharp cutting edges. This precision allows for high-accuracy machining, making them suitable for applications where tight tolerances are required.

7.Versatility: Tungsten carbide inserts are versatile and can be used for a wide range of materials, including steels, stainless steels, cast irons, and non-ferrous metals. This versatility makes them valuable in various industrial applications.

8.High Compression Strength: Tungsten carbide exhibits high compressive strength, allowing it to withstand the pressure applied during the cutting process. This property contributes to the insert's overall strength and durability.

When using WCMX 06T308 or similar tungsten carbide inserts, it's essential to adhere to recommended cutting parameters, such as cutting speed, feed rate, and depth of cut, to maximize their performance and longevity. Additionally, proper tool and workpiece coolant/lubrication and chip evacuation are crucial for achieving optimal results and prolonging the life of the inserts.
