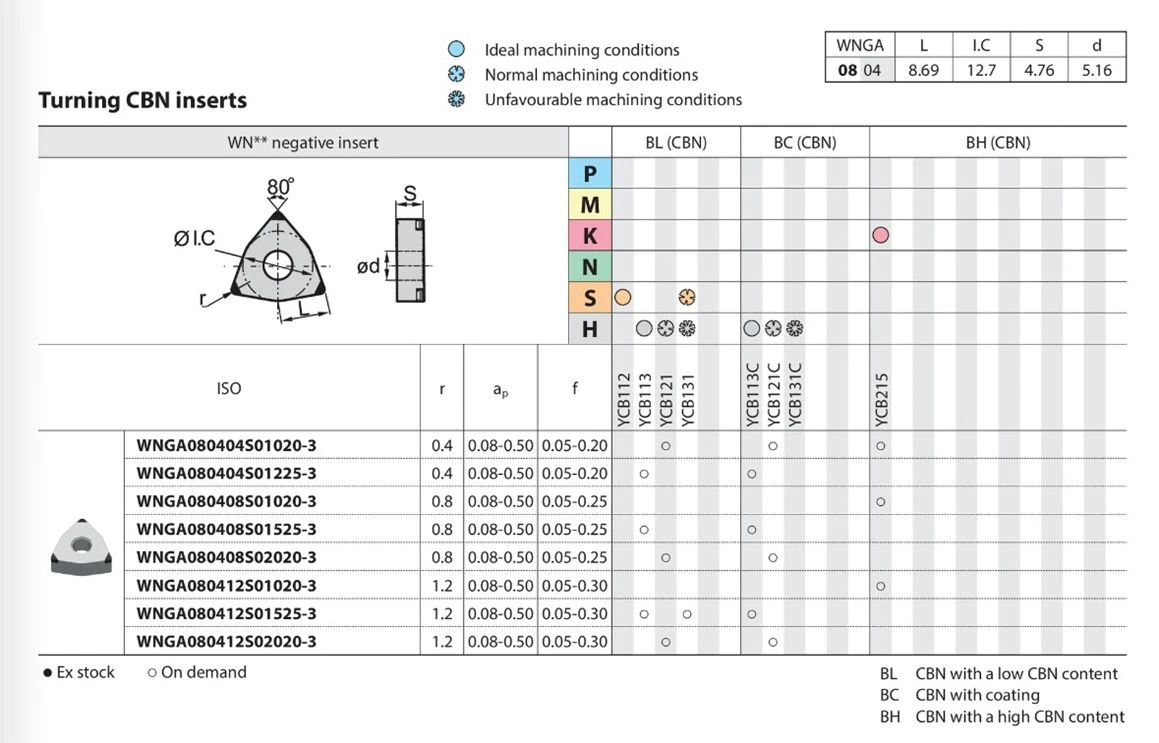

WNGA080404-3 Turning Inserts For PCBN And PCD

Model NO.：WNGA080404-3

Material：CBN PCD Ceramic

Hardness: Below HRC55-65

Type：Solid CBN Cutting Tools

Application: Metal Cutting Machine, Metal Processing Machinery Parts

Machining：Turning, Milling

Production Capacity：20000pie/Week

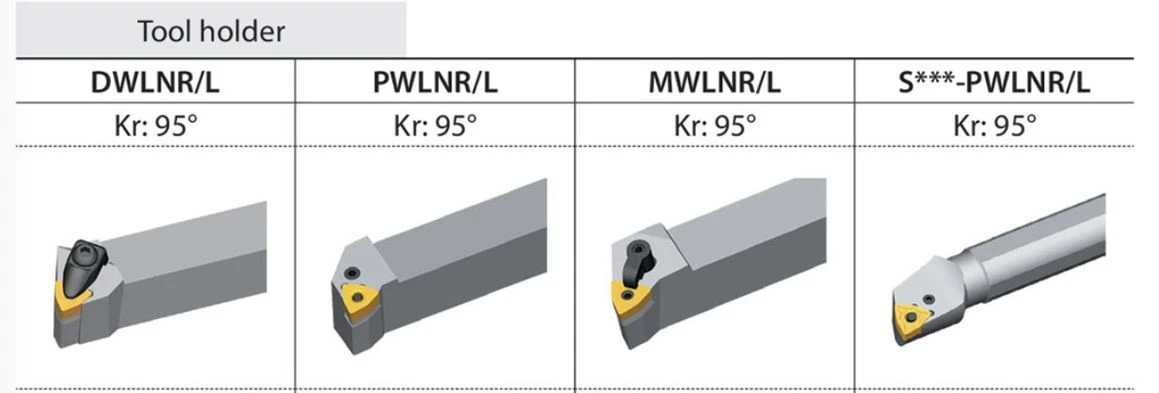

Tool Holders:

WNGA080404-3 turning inserts are designed to deliver maximum productivity in specific applications. SBN and SCB compacts has excellent wear resistance, impact toughness, high chemical stability and heat stability, excel on cast irons, hardened steel, powder metal, hard facing alloys, HSS, and high temperature alloy. They are commonly used in the automotive, aerospace, heavy machining, die and mold, roll industry and medical industries.

Polycrystalline cubic boron nitride (PCBN) is a synthesized mass of randomly orientated cubic boron nitride (CBN) particles, bound by a ceramic binder phase.

PCBN inserts are suitable for the high-speed and super high-speed precision
machining of hardened steel of HRC>45, wear-resistant cast iron,
heat-resistant alloys of HRC>35, pearlite grey cast iron, nodular cast iron,
Fe-based P/M sintered materials and hardened cast iron.

Choosing the right WNGA080404-3 turning inserts for PCBN (polycrystalline cubic boron nitride) and PCD (polycrystalline diamond) involves considering several factors. Here's a guide on how to make an informed decision:

1.Material Compatibility:

● Determine the type of material you will be machining. PCBN is suitable for hard materials like hardened steels, while PCD is better for non-ferrous materials and non-metallic composites.

2. Application:

● Consider the specific machining application (e.g., roughing, finishing, or interrupted cuts). Different insert geometries and grades may be optimized for particular applications.

3.Insert Geometry:

● The alphanumeric code "WNGA080404-3" includes information about the insert geometry. The manufacturer's documentation or catalog will provide details on the specific geometry, such as the shape of the cutting edge, chip control features, and other design characteristics.

4. Chip Control and Cutting Forces:

● Evaluate the insert's design for effective chip control. Proper chip control helps in preventing chip evacuation issues and enhances overall machining performance. Additionally, consider cutting forces to ensure stability during machining.

5. Speeds and Feeds:

● Refer to the manufacturer's recommendations for cutting speeds and feeds. The optimal machining parameters depend on the material being cut and the specific insert grade.

6. Insert Grade:

● PCBN and PCD inserts come in various grades tailored for specific applications. Check the manufacturer's recommendations for the suitable grade based on the workpiece material and the intended application.

8. Toolholder Compatibility:

● Ensure that the chosen inserts are compatible with your existing toolholders and machine setup. Check the insert dimensions and the ANSI (American National Standards Institute) code to match with your toolholder.

9. Surface Finish Requirements:

● Consider the required surface finish for your application. PCBN and PCD inserts can provide excellent surface finishes, but the choice of insert grade and geometry can influence the result.

10. Cost Consideration:

● Evaluate the cost-effectiveness of the inserts. While PCBN and PCD inserts can be more expensive initially, their extended tool life and improved performance may justify the investment over time.

11.Manufacturer Recommendations:

● Always refer to the manufacturer's documentation, catalog, or technical support for specific recommendations on choosing and using the WNGA080404-3 inserts. They can provide detailed information on the intended applications and performance characteristics.

● By carefully considering these factors and consulting with the insert manufacturer, you can make an informed decision on choosing the right WNGA080404-3 turning inserts for your PCBN and PCD machining applications.
