6mm End Mill Cutter
Model NO.：2BEM55-14
Type：Side Milling Cutter
Flute：2 Flute
Basic Info.
Product Name: 2 Flute 6mm Square Carbide Ball End Mills Cutter for Stainless Steel
Model NO.：2BEM55-14
Type：Side Milling Cutter
Flute：2 Flute
Customized Size：Accepted
Application：CNC Machining Center
Transport Package：1PC/Tube
Material：Tungsten Steel
OEM Service：Provide
Hardness：HRC55
Process Precision：0.005
Process Usage：Metal Working, Stainless Steel
Specification：1mm-20mm
Origin：China
Coating: TiSIN coating
Tooth Form: Spiral Tooth
Structure: Integral
|
Material |
Tungsten Cobalt Alloy, Tungsten Carbide |
Machine Type |
Milling Machine |
|
Controlling Mode |
CNC Tooling System |
Precision |
0.005-0.01mm |
|
Shank Diameter |
4-40mm |
Coating |
TiSIN |
|
Flute Diameter |
0.3-40mm |
HRC |
HRC55 |
|
Overall Length |
38-330mm |
Suitable For |
carbon steel, mound steel, stainless steel, titanium alloy, tool steel, and heat-treated steel |
Specifications:
Standard type
|
Model No. |
Flute Diameter (mm) |
Flute length (mm) |
Shank Diameter (mm) |
Overall length (mm) |
|
R0.5*2*D4*50 |
R0.5 |
2 |
4 |
50 |
|
R0.75*3*D4*50 |
R0.75 |
3 |
4 |
50 |
|
R1*4*D4*50 |
R1 |
4 |
4 |
50 |
|
R1.25*5*D4*50 |
R1.25 |
5 |
4 |
50 |
|
R1.5*6*D4*50 |
R1.5 |
6 |
4 |
50 |
|
R1.75*7*D4*50 |
R1.75 |
7 |
4 |
50 |
|
R2*8*D4*50 |
R2 |
8 |
4 |
50 |
|
R2.5*10*D6*50 |
R2.5 |
10 |
6 |
50 |
|
R3*12*D6*50 |
R3 |
12 |
6 |
50 |
|
R4*16*D8*60 |
R4 |
16 |
8 |
60 |
|
R5*20*D10*75 |
R5 |
20 |
10 |
75 |
|
R6*24*D12*75 |
R6 |
24 |
12 |
75 |
|
R7*28*D14*100 |
R7 |
28 |
14 |
100 |
|
R8*32*D16*100 |
R8 |
32 |
16 |
100 |
|
R9*36*D18*100 |
R9 |
36 |
18 |
100 |
|
R10*40*D20*100 |
R10 |
40 |
20 |
100 |
Extra Length Type
|
Model No. |
Flute Diameter (mm) |
Flute length (mm) |
Shank Diameter (mm) |
Overall length (mm) |
|
R2*8*D4*75 |
R2 |
8 |
4 |
75 |
|
R2*8*D4*100 |
R2 |
8 |
4 |
100 |
|
R3*12*D6*75 |
R3 |
12 |
6 |
75 |
|
R3*12*D6*100 |
R3 |
12 |
6 |
100 |
|
R4*16*D8*75 |
R4 |
16 |
8 |
75 |
|
R4*16*D8*100 |
R4 |
16 |
8 |
100 |
|
R5*20*D10*100 |
R5 |
20 |
10 |
100 |
|
R6*24*D12*100 |
R6 |
24 |
12 |
100 |
|
R3*12*D6*150 |
R3 |
12 |
6 |
150 |
|
R4*16*D8*150 |
R4 |
16 |
8 |
150 |
|
R5*20*D10*150 |
R5 |
20 |
10 |
150 |
|
R6*24*D12*150 |
R6 |
24 |
12 |
150 |
|
R7*28*D14*150 |
R7 |
28 |
14 |
150 |
|
R8*32*D16*150 |
R8 |
32 |
16 |
150 |
|
R9*36*D18*150 |
R9 |
36 |
18 |
150 |
|
R10*40*D20*150 |
R10 |
40 |
20 |
150 |

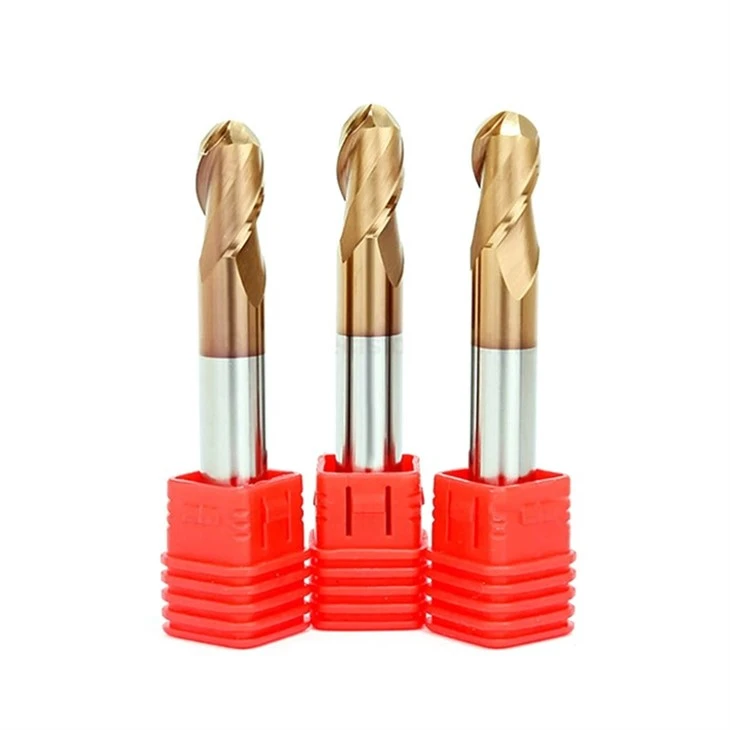

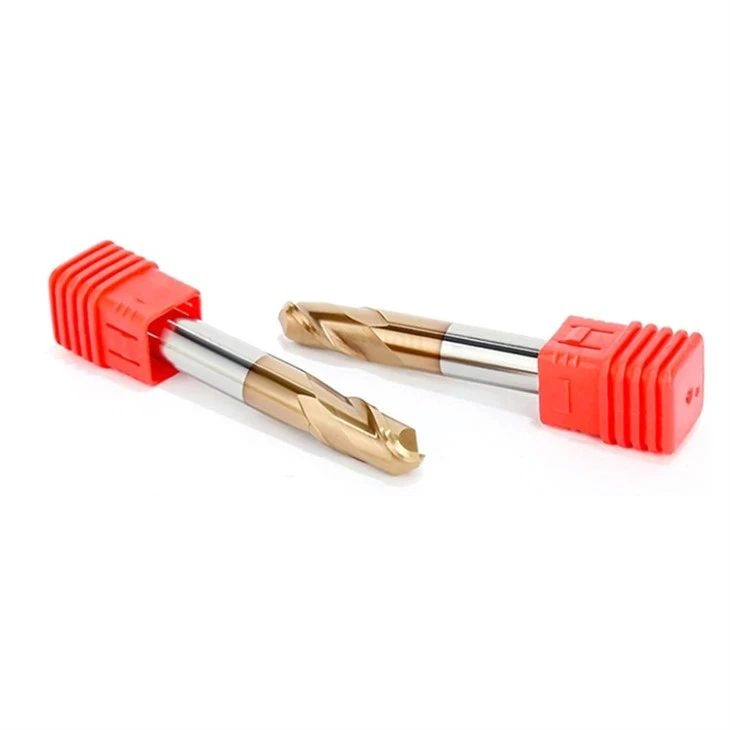

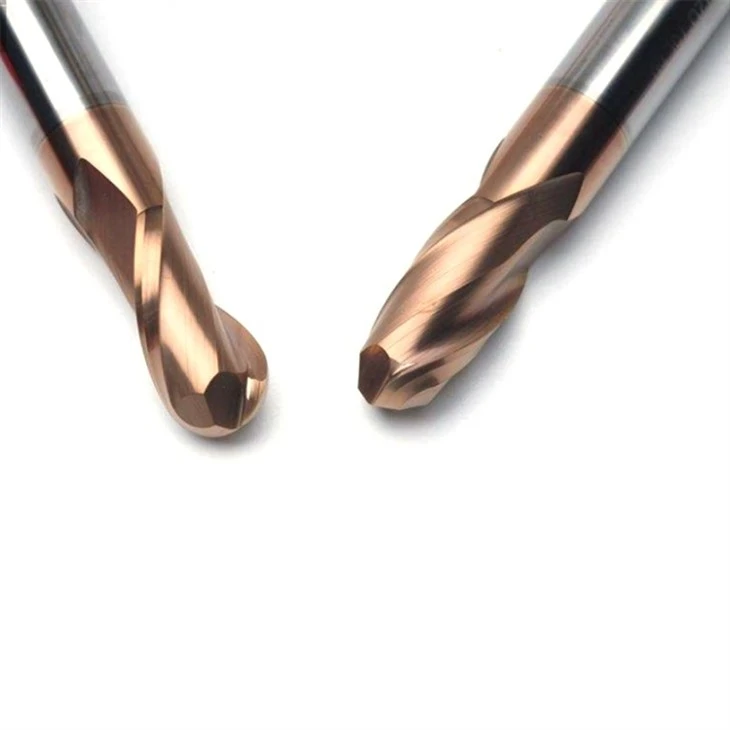

Product Show:

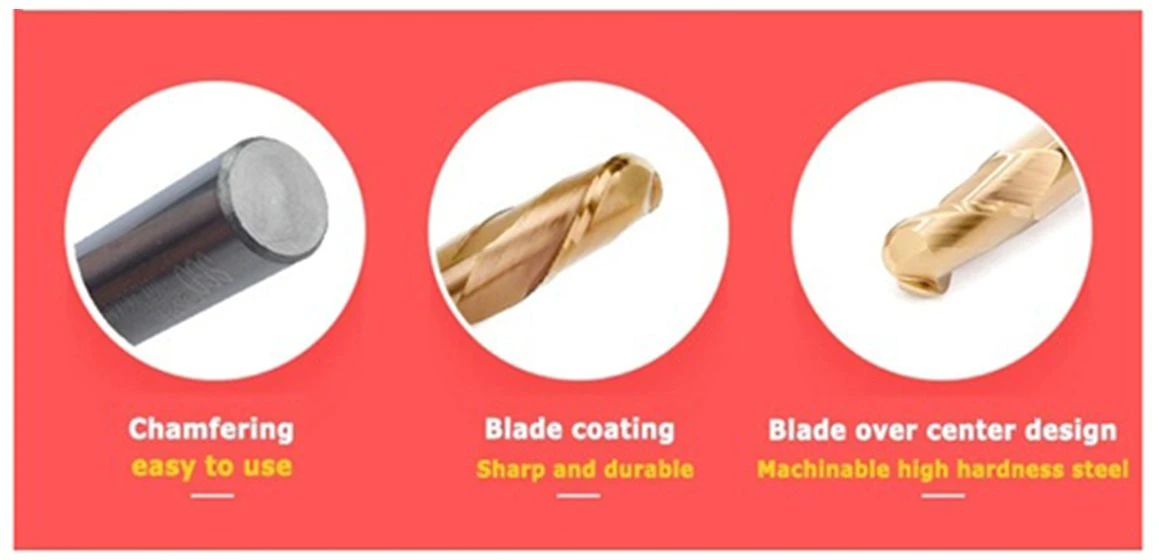

Products Features:
1. Special Cutting Edge: Special cutting edge can increase the cutting ability. The lifetime of tools and machines will be longer
2. Smooth and Wide Flute: Smooth and wide flute will remove the cuttings more easily
3. Heat-resistant Coating: With highly heat-resistant HELICA coating, can be used for high-speed processing
4. TiSIN Coating: Under TiSIN coating, any abrasion is easy to be recognized
5. High Quality Raw Material: The raw material is used of high toughness, grain-sized carbon tungsten
6. Polished Surface Treatment: With high polished surface treatment, reduce the friction coefficient could be reduced, the lathe efficiency could be improved, more production time could be saved
