Single Flute End Mills
Place of Origin: China
Customized support: OEM, ODM
Brand Name: CQ CUTOOL
Basic Info.

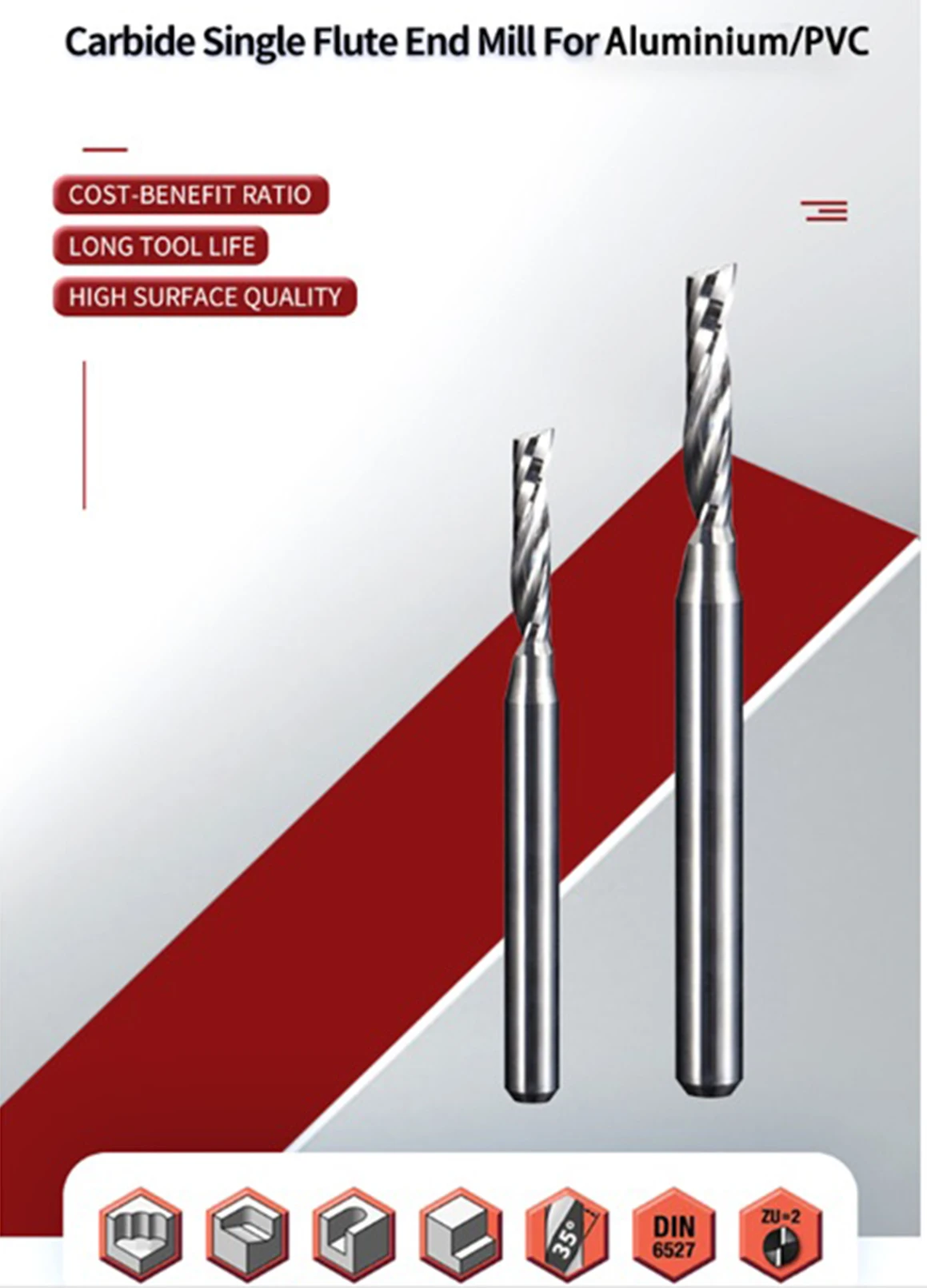

Product Name: Carbide Single Flute End Mill For Aluminum
Material: Carbide
Coating: TiAIN
Place of Origin: China
Customized support: OEM, ODM
Brand Name: CQ CUTOOL
Model Number: Carbide Single Flute End Mill For Aluminum
Suitable for: Cooper. Cast Iron. Carbon Steel.Mould Steel
Grade: Professional Grade
Advantages: Sharp Cutting Edge
Coating: TiAIN
Controlling Mode: CNC Tooling System
Packing: Inner Box + Outer Carton
Shape: Flat
Product Material Introduction:
|
Carbide Grade |
Material Grade |
Grain |
Introduction |
Application |
|
HRC45 |
YL10.2 |
0.8μm |
This Grade consist with 89.7% WC 10% cobalt, Super tough and Excellent wear resistance. |
General Steel, Cast Iron |
|
HRC55 |
ST20F |
0.6μm |
Cobalt 10%, T20F is ultra-fine grain, hardness is 92HRA, high strength and good toughness. Bending Strength >4700 |
Suitable For Semi-finishing, Roughing General Steel, |
|
HRC60 |
ST12F |
0.2μm |
ST12F is 0.2-micron, Cobalt 9%, ultrafine carbide powder, Hardness 93.5 HRA, super tough and excellent wear resistance. |
Finishing processing High Hard Material, |
|
HRC65 |
GU20F |
0.7μm |
0.7-micron powder with 12% cobalt, super tough and Excellent wear resistance, suitable for cutting hard material. |
High-temperature Alloy Steel |
|
Coating For Stainless Steel |
ST15D / THA-U(Kennametal) |
0.6μm |
ST15D is 0.4-micron ultrafine carbide powder and provides very high toughness and wear resistance. |
Stainless Steel |
|
Coating For Titanium/Inconel/Nickel |
ST15-F / THA-U (Kennametal) |
0.6μm |
Hardness 92 Cobalt 10 %, not contain Titanium element, not sticky, no built up-edge. |
Titanium Alloy |
Product Coating Information:
|
Coating Type |
Color |
Coating Name |
Hv |
Friction |
μm |
The Max°C |
|
HRC45 |
Black |
AlTiN |
3200 |
0.7 |
1-4 |
850°C |
|
HRC55 |
Bronzed |
TiSiAlN |
3300 |
0.7 |
1-4 |
900°C |
|
HRC60 |
Black |
AlCrSiN |
4000 |
0.35 |
1-6 |
1100°C |
|
HRC65 |
Blue |
nACo Blue |
4600 |
0.45 |
1-7 |
1200°C |
|
Coating For Stainless Steel |
Black |
nACo Black |
4500 |
0.55 |
1-7 |
1100°C |
|
Coating For Titanium/Inconel/Nickel |
Golden |
nACo Gold |
4500 |
0.55 |
1-7 |
1100°C |

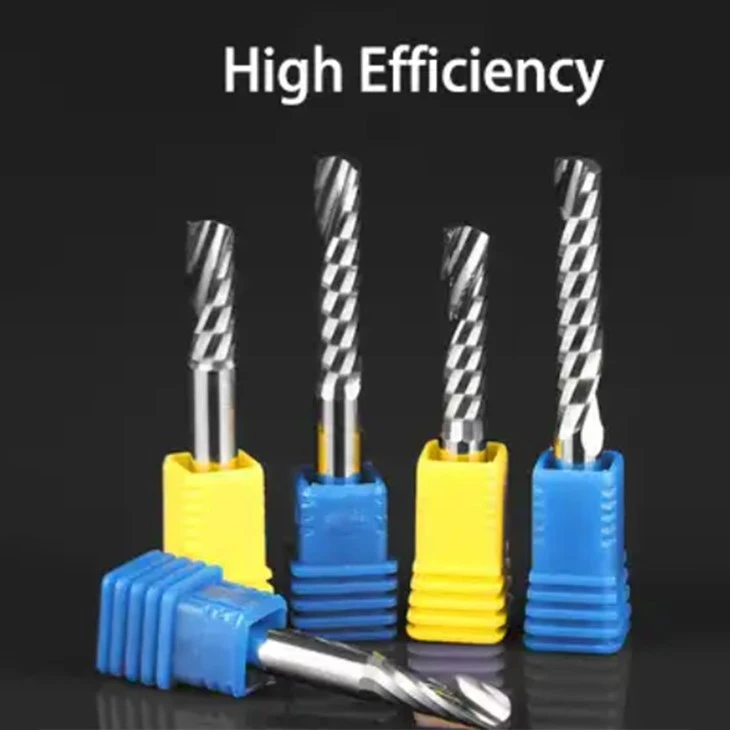

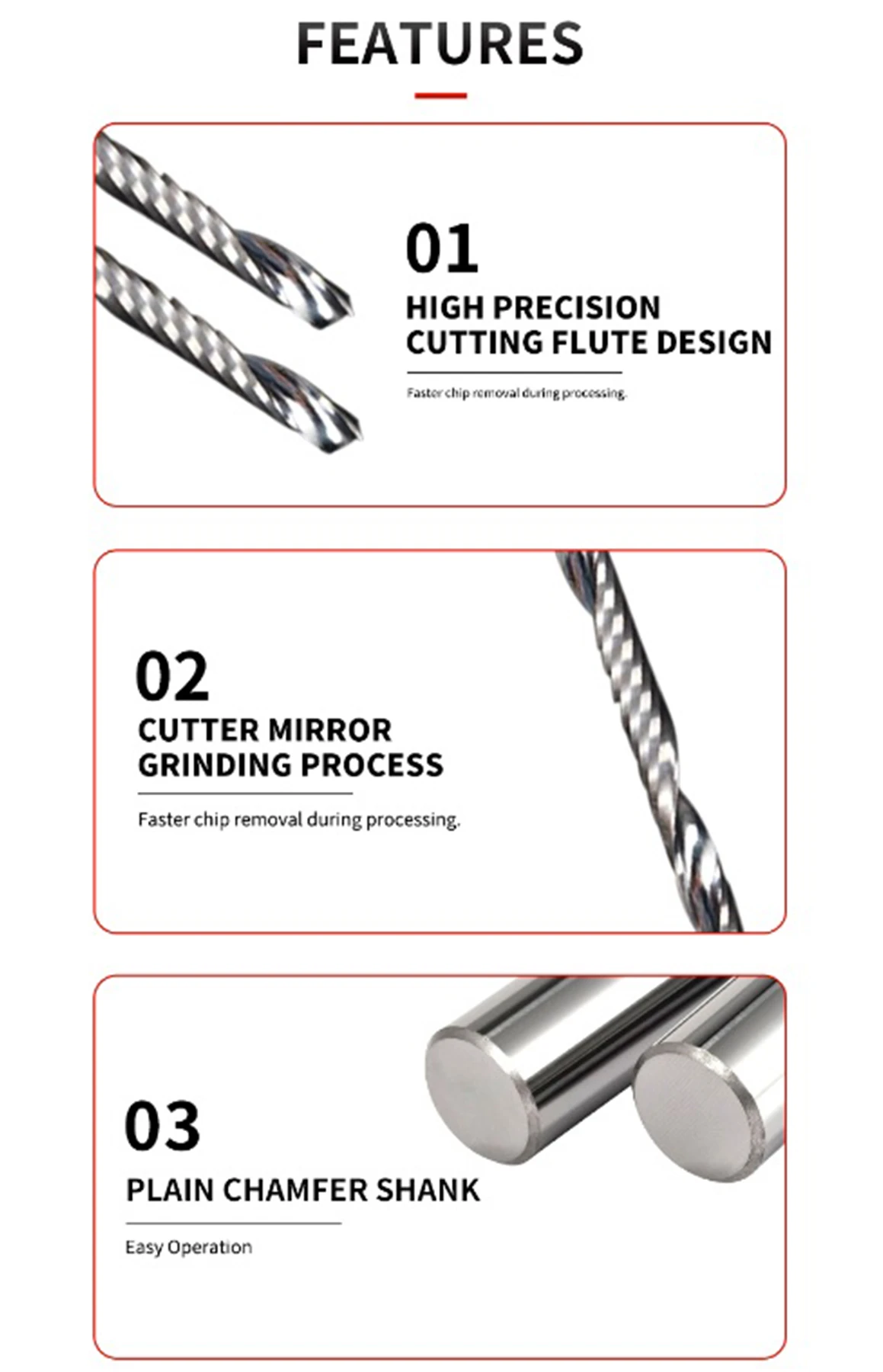

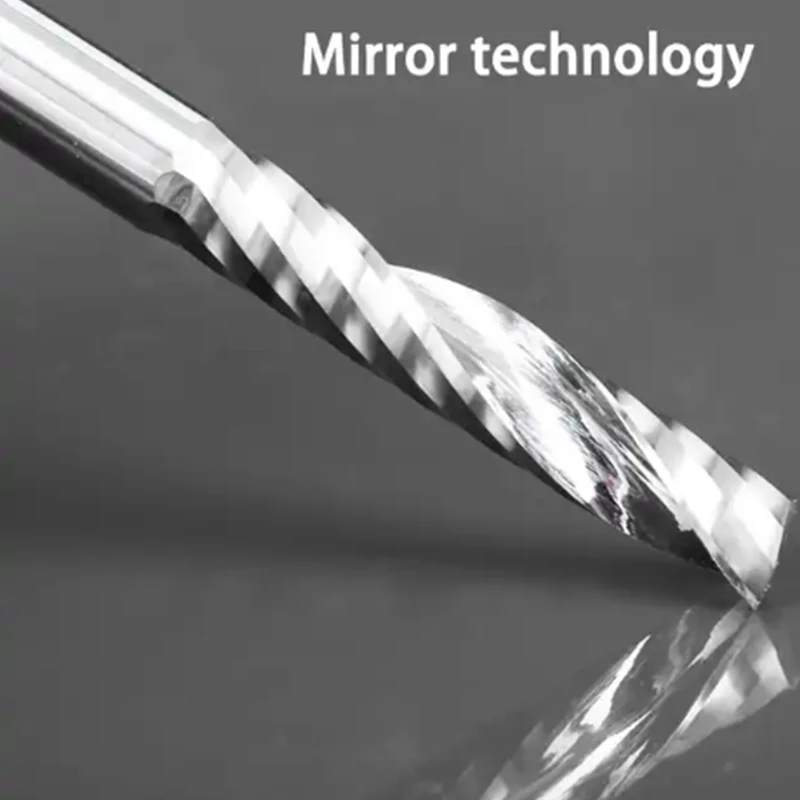

Product Details Display:
How to choose the Single Flute End Mills:
Some tips as follows:
1. Material to be Machined:
● Different materials require different types of end mills. Single flute end mills are often used for soft materials like plastics and soft metals such as aluminum. The single flute design allows for efficient chip evacuation in softer materials.
2. Carbide Grade:
● Carbide end mills are durable and can withstand high cutting temperatures. Choose the appropriate carbide grade based on the hardness of the material you are machining.
3. Coating:
● Coatings like TiN (Titanium Nitride) or TiAlN (Titanium Aluminum Nitride) can enhance tool life and improve performance by reducing friction and wear. Consider coatings especially when working with abrasive materials or high-temperature applications.
4. Tool Diameter and Length:
● Choose the right diameter for your specific application. Smaller diameters are suitable for fine detail work, while larger diameters are more robust and can handle heavier cuts. Additionally, consider the length of the end mill; longer end mills provide better reach but might be more prone to deflection.
5. Flute Length and Helix Angle:
● The flute length and helix angle affect chip evacuation and the ability to handle different cutting forces. Consider the flute length based on the depth of your cuts, and the helix angle based on the material and cutting conditions.
6. Speeds and Feeds:
● Follow the manufacturer's recommendations for cutting speeds and feeds. Proper speeds and feeds are crucial for achieving efficient material removal and preventing premature tool wear.
7. Coolant/Lubrication:
● Depending on the material and cutting conditions, using a suitable coolant or lubrication can significantly enhance tool life and surface finish.
8. Budget and Quality:
● Balance your budget constraints with the need for quality tools. Cheaper end mills might save money initially but might wear out faster or provide subpar performance.
9. Manufacturer Reputation:
● Choose reputable manufacturers known for producing high-quality end mills. Read reviews and gather feedback from machining professionals to make an informed decision.
FAQ:
Q: How about the quality control?
A: All tools are 100% strictly inspected by advanced machines such as Zoller G3, we will make final inspection before shipment. All tools are 100% strictly inspected by advanced machines such as Zoller G3, we will make final inspection before shipment.
Q: How long is your delivery time?
A: If the goods are in stock, it's 5-10 days, but it's 15-25 days if the goods need customization.
Q: How about samples charges?
A: We can send free samples for testing.
Q: Can you offer OEM?
A: Yes, we can, we can produce the products per drawing and samples, also we can make your logo on products and package.
Q: Are you manufacturer or trading company?
A: We are professional manufacturer with more than 7 years experience in this field.
