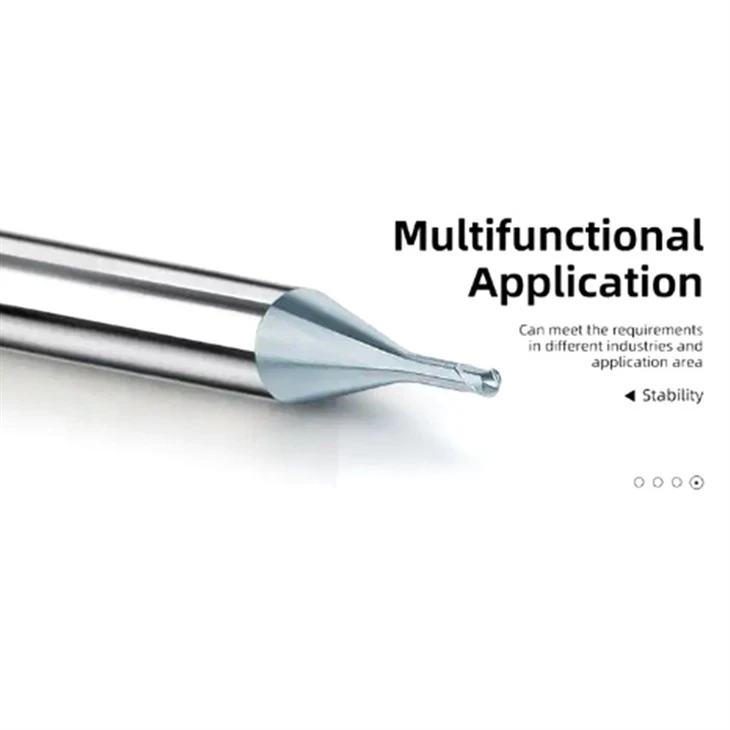

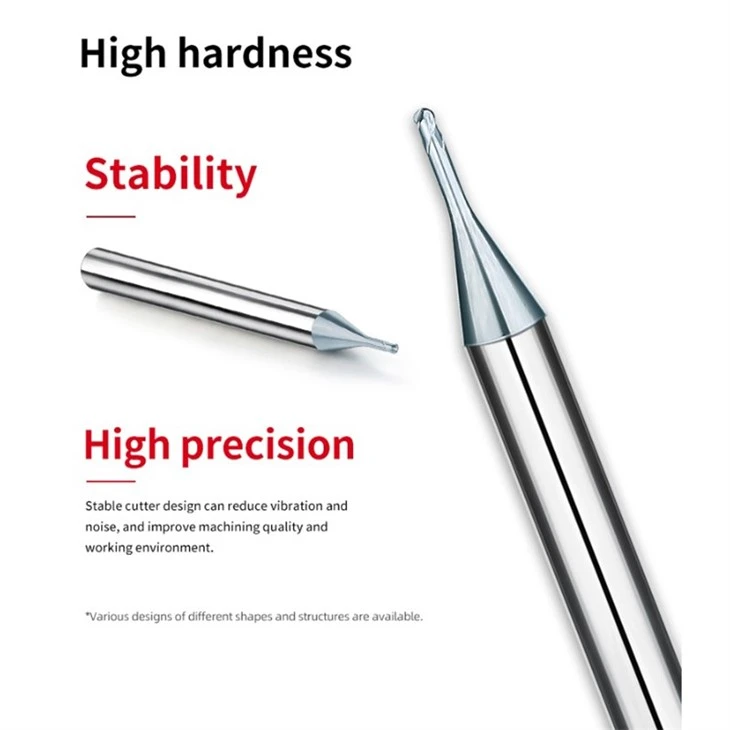

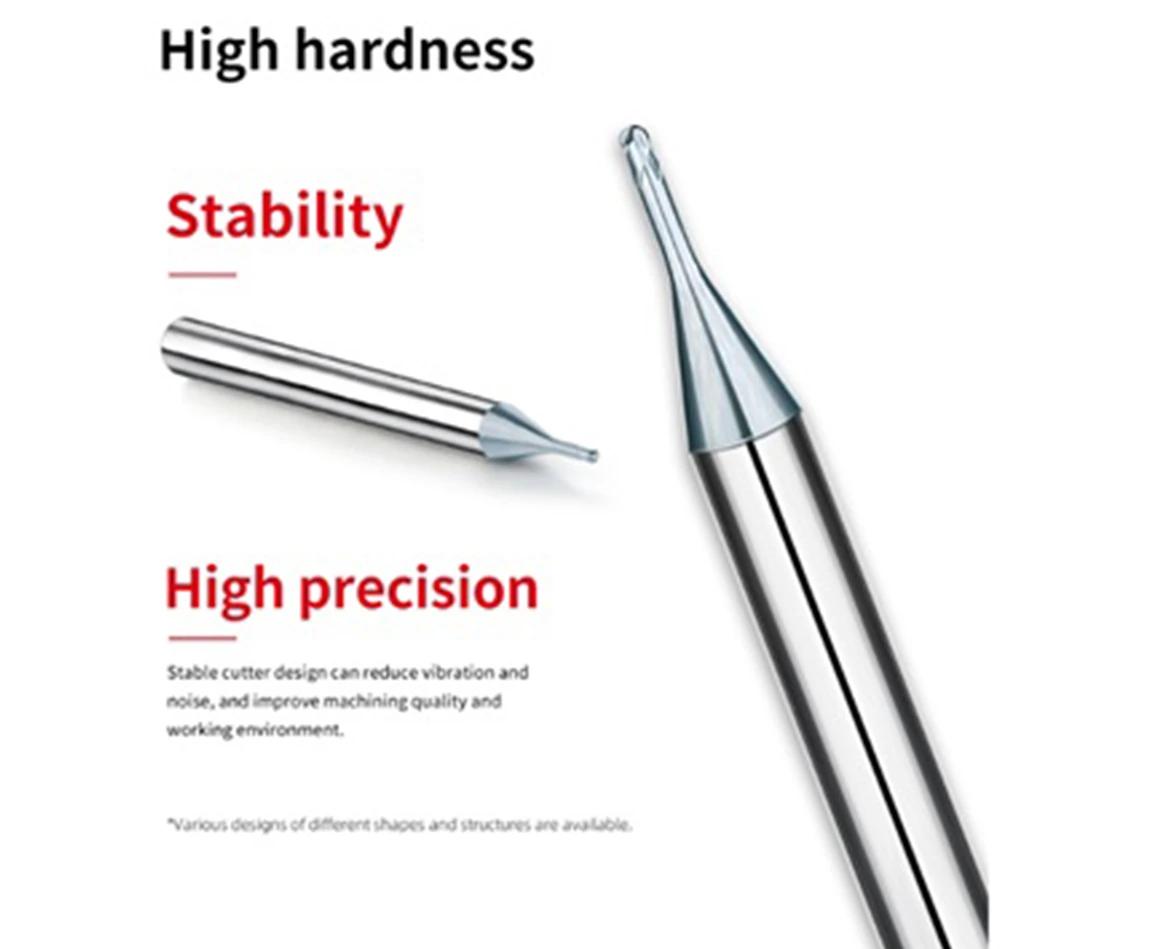

Long Neck End Mill
Raw material: Tungsten Steel
HRC:45/55/60/65 Degrees
Usage: CNC Machine Center
Basic Info.
Product Name: Long Neck End Mill for Processing Carbon Steel
Place of Origin: China
Customized support: OEM, ODM
Model Number: Milling Cutter

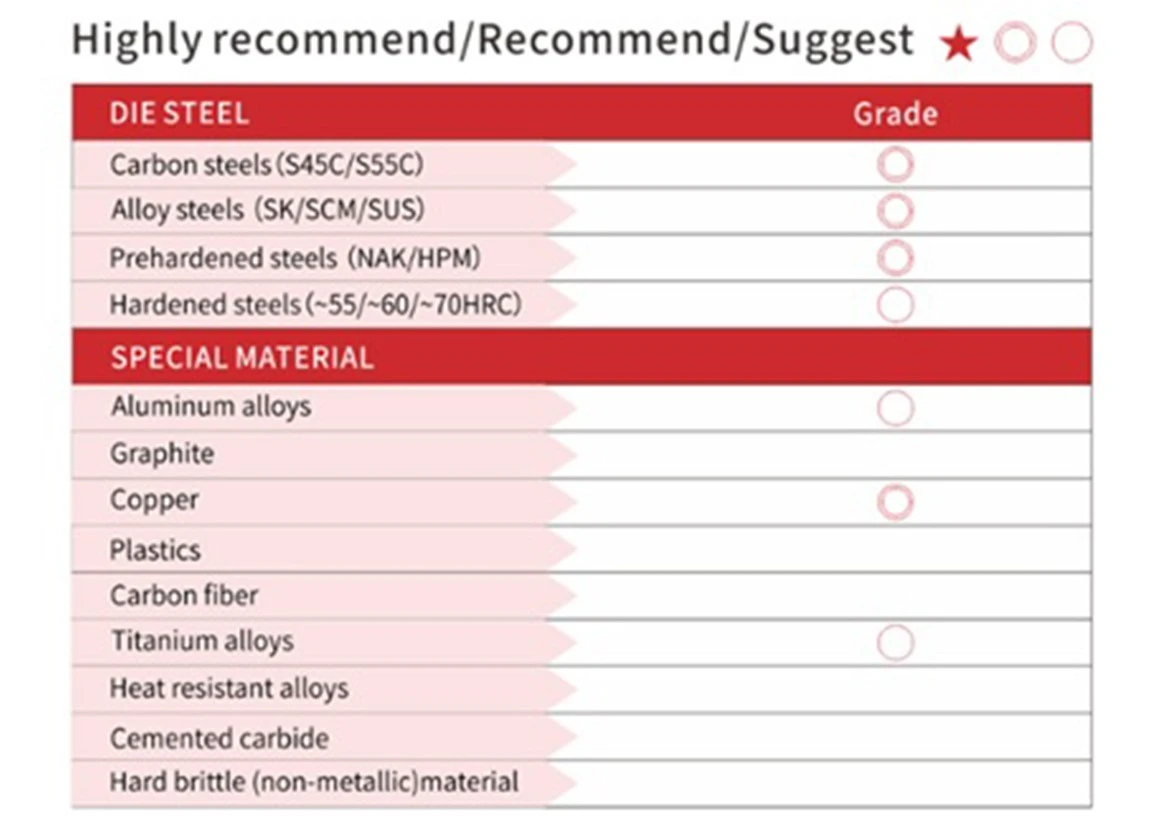

Suitable for 1: Alloy Steels, Rehardened Steels, Hardened Steels
Suitable for 2: Carbon Steels, Copper, Titanium Alloys, Aluminum Alloys
Raw material: Tungsten Steel
HRC:45/55/60/65 Degrees
Usage: CNC Machine Center
Flute: 2 Flutes
Shipment: DHL.TNT.UPS.FEDEX.EMS
Coating Characteristics
|
Coating Name |
HG |
HT |
HB |
HD |
|
Ingredient |
ALTiSi+N |
ALTiSi+N |
ALTiCR+N |
NanoDiamond |
|
Colour |
Bronze |
Bronze |
Darkgrey |
Darkgrey |
|
Characteristics |
Ultra-high hardness, |
Ultra-high hardness, |
Ultra-low oxidation |
Ultra-high |
|
super oxidation resistance, |
super oxidation resistance, |
low friction |
wear resistance |
|
|
high density. |
high density. |
|
|
|
|
Hardness |
3700(HV) |
3500(HV) |
3500(HV) |
10000(HV) |
|
Coefficient of Friction |
0.4 |
0.36 |
0.3 |
<0.1 |
|
Oxidation Onset Temperature |
1300 |
1200 |
1100 |
600 |
|
Coating Thickness |
2-4um |
2-4um |
2-4um |
6-10um |
Products Description
Applications:
1. Deep Pocket Milling:
● Long neck end mills are ideal for machining deep pockets or cavities in workpieces. Their extended reach enables them to access and remove material from deep within the workpiece without the need for multiple tool changes or setups.
2. Machining Thin-Walled Components:
● When working with thin-walled or delicate components, using a long neck end mill reduces the risk of damaging the workpiece. The extended flute length allows for more stable and precise machining without applying excessive pressure on the workpiece.
3. Contouring and Profiling:
● Long neck end mills are suitable for contouring and profiling applications, especially when dealing with complex shapes that require deep cutting. They can access intricate details and produce smooth surfaces in deep-reach contouring operations.
4. Die and Mold Machining:
● Long neck end mills are commonly used in die and mold machining, where intricate cavities and detailed features are required. Their extended reach is valuable for machining molds with deep pockets and complex geometries.
5. 3D Machining:
● Long neck end mills are essential for 3D machining tasks where sculpted surfaces and intricate details are necessary. They can reach deep areas of the workpiece, allowing for efficient and precise material removal in 3D contouring operations.
6. Engraving and Surface Etching:
● Long neck end mills with sharp tips are utilized for engraving and surface etching applications. They can create fine details and intricate patterns on various materials.
7. Hard Materials Machining:
● Long neck end mills made from high-performance materials like carbide are capable of machining hard materials such as hardened steel, titanium, and exotic alloys. Their extended reach allows for deep cutting in these tough materials.
8. Aerospace Components:
● In aerospace manufacturing, where intricate components with deep recesses are common, long neck end mills are used for tasks like machining turbine blades, engine components, and other complex aerospace parts.
