Left Hand End Mill
Helix Angle:35deg
Machine Type: Milling Machine
End Cut Type: Flat End
Basic Info.
Product Name: Left Hand End Mill Suppliers 60 Degree Milling Cutter Altin Tiain Coating HRC58 4 Flutes Square End Mill
Model NO.: HRC58 End Mills
HRC:55deg
Features2: Wear Resistance
Performance Classification: High-End CNC Machine Tools
Helix Angle:35deg
Machine Type: Milling Machine
End Cut Type: Flat End
Flute:4 Flutes
Measurement System: Metric
Certification: GS, CE, RoHS, ISO 9001
CNC or Not:CNC
Controlling Mode: CNC Tooling System, CNC
Materials: Solid Carbide (Tungsten Steel)
Product Name: HRC58 4 Flutes Corner Radius End Mill
Origin: Chongqing, China
Specifications:
|
Specification |
Diameter D1 |
Blade length L1 |
Shank diameter D2 |
Overall length L2 |
|
D3*9*50L |
3 |
9 |
/ |
50 |
|
D3*12*75L |
3 |
12 |
/ |
75 |
|
D3*15*100L |
3 |
15 |
/ |
100 |
|
Dl*3*D4*50L |
1 |
3 |
4 |
50 |
|
D1.5*4.5*D4*50L |
1.5 |
4.5 |
4 |
50 |
|
D2*6*D4*50L |
2 |
6 |
4 |
50 |
|
D2.5*7.5*D4*50L |
2.5 |
7.5 |
4 |
50 |
|
D3*9*D4*50L |
3 |
9 |
4 |
50 |
|
D3.5*10*D4*50L |
3.5 |
10 |
4 |
50 |
|
D4*10*50L |
4 |
10 |
/ |
50 |
|
D4*16*75L |
4 |
16 |
/ |
75 |
|
D4*20*100L |
4 |
20 |
/ |
100 |
|
D5*13*50L |
5 |
13 |
/ |
50 |
|
D5*20*75L |
5 |
20 |
/ |
75 |
|
D5*25*100L |
5 |
20 |
/ |
100 |
|
D5*13*D6*50L |
5 |
13 |
6 |
50 |
|
D6*15*50L |
6 |
15 |
/ |
50 |
|
D6*24*75L |
6 |
24 |
/ |
75 |
|
D6*30*100L |
6 |
30 |
/ |
100 |
|
D8*20*60L |
8 |
20 |
/ |
60 |
|
D8*30*75L |
8 |
30 |
/ |
75 |
|
D8*35*100L |
8 |
35 |
/ |
100 |
|
D10*25*75L |
10 |
35 |
/ |
75 |
|
D10*40*100L |
10 |
10 |
/ |
100 |
|
D12*30*75L |
12 |
30 |
/ |
75 |
|
D12*45*100L |
12 |
45 |
/ |
100 |
|
D14*45*100L |
14 |
45 |
/ |
100 |
|
D16*45*100L |
16 |
45 |
/ |
100 |
|
D18*45*100L |
18 |
45 |
/ |
100 |
|
D20*45*100L |
20 |
45 |
/ |
100 |
|
D6*45*150L |
6 |
45 |
/ |
150 |
|
D8*50*150L |
8 |
50 |
/ |
150 |
|
D10*60*150L |
10 |
60 |
/ |
150 |
|
D10*60*151L |
10 |
60 |
/ |
151 |
|
D14*70*150L |
14 |
70 |
/ |
150 |
|
D16*75*150L |
16 |
75 |
/ |
150 |
|
D18*75*150L |
18 |
75 |
/ |
150 |
|
D20*75*150L |
20 |
75 |
/ |
150 |
More Types of Milling Cutter:

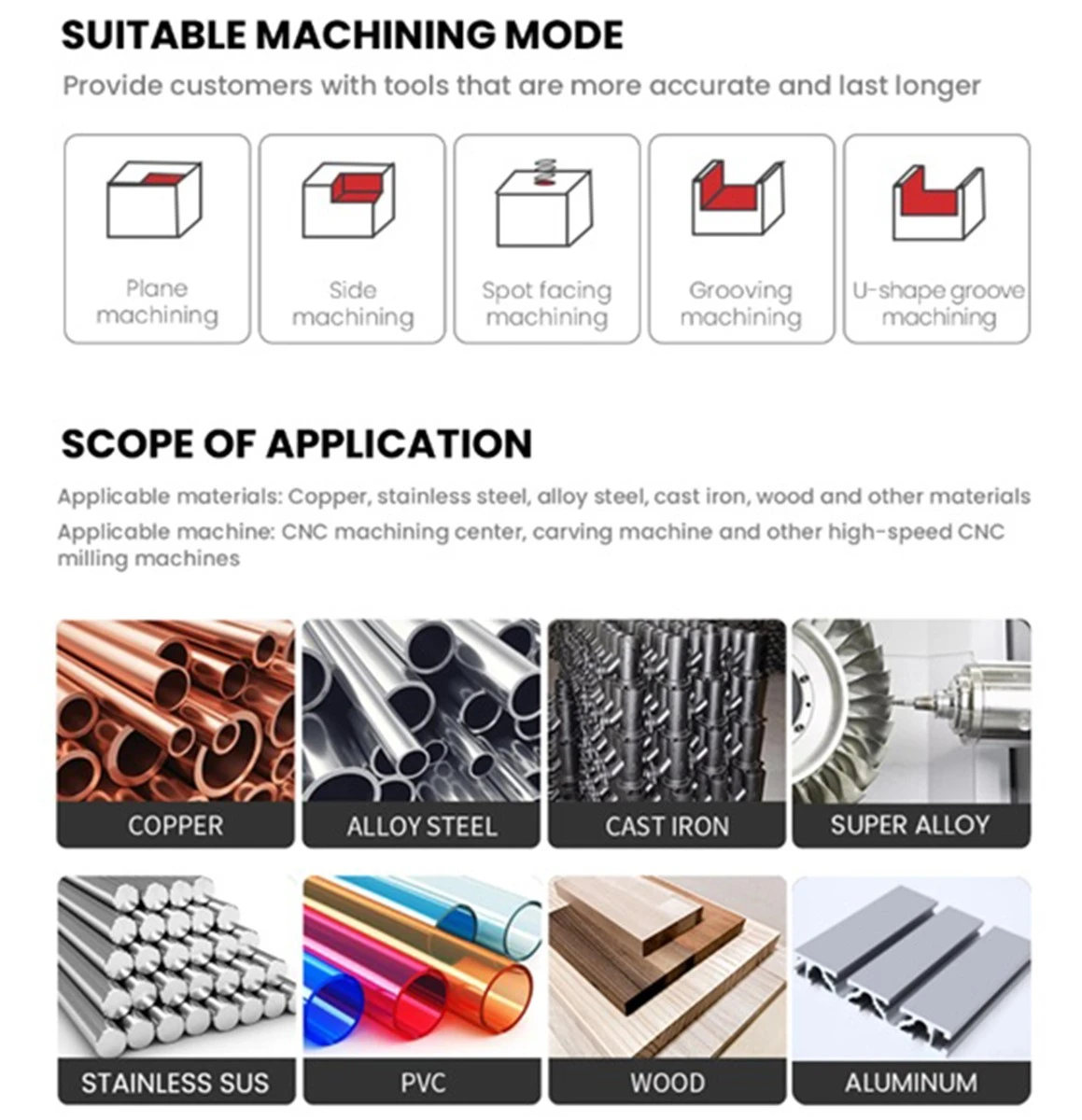

The Application of Left-hand End Mill:
1.Milling in Opposite Direction: Left-hand end mills are used when the milling machine spindle rotates in the opposite direction or when a reverse cut is required. This can be beneficial for certain types of materials or when you need to avoid burring on the bottom edge of the cut.
2.Specialized Cutting Operations: In some cases, specialized cutting operations require a left-hand rotation. For instance, in climb milling, the cutter rotates in the same direction as the feed, producing a smoother cut. Left-hand end mills can be used for climb milling in certain situations.
3.Contouring and Profile Milling: Left-hand end mills are commonly used in contouring and profile milling applications where intricate shapes and profiles need to be cut into the workpiece. These tools are versatile and can handle various shapes and angles.
4.Slotting Operations: Left-hand end mills can be used for slotting operations where a vertical cut is made into the material. These tools are available in various widths to produce slots of different sizes.
5.Facing Operations: Left-hand end mills can also be used for facing operations, where the mill is used to create a flat surface on the workpiece. Facing is often done at the beginning of the milling process to provide a clean and flat surface for subsequent machining operations.
6.Machining Non-Ferrous Materials: Left-hand end mills are sometimes preferred when machining non-ferrous materials like aluminum or brass. The left-hand rotation can help prevent the material from sticking to the cutter, resulting in a cleaner cut.
7.High-Speed Machining: In high-speed machining applications, left-hand end mills can be used to achieve efficient material removal while maintaining dimensional accuracy and surface finish.
