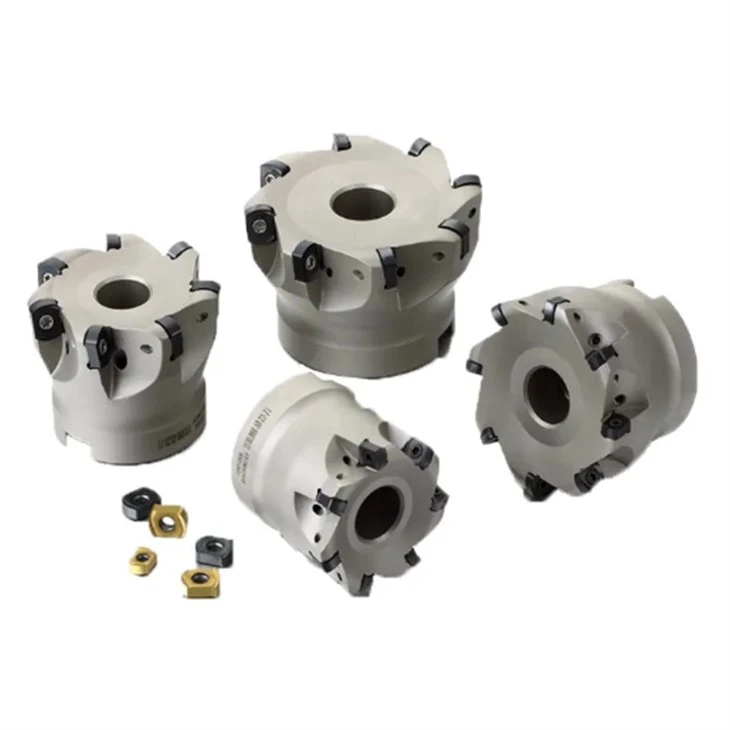

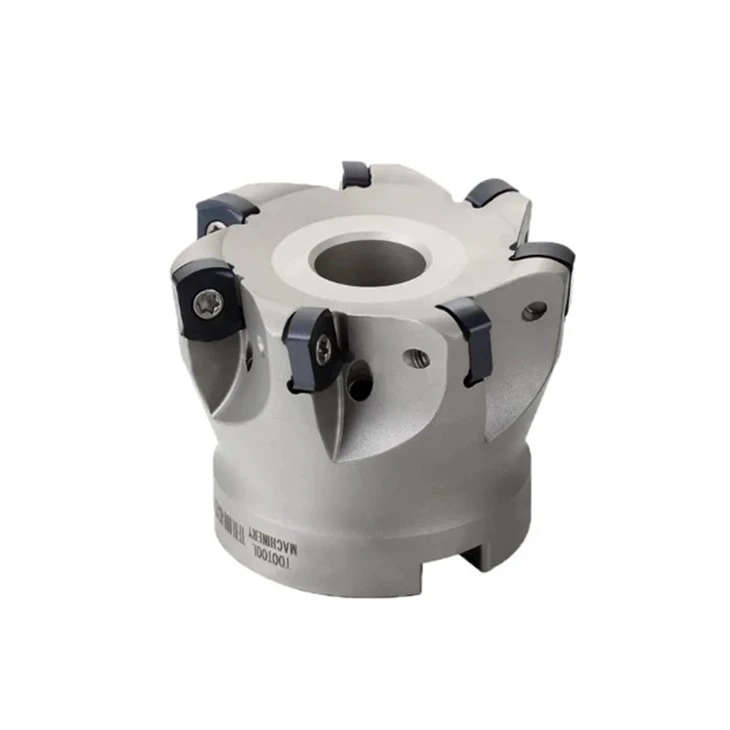

Face Milling Cutter Holder
Over Length (mm):40mm, 50mm, 60mm
Tolerance grade of holding handle:G6
Thickness of feeler gauge for testing:0.01mm
Basic Info.
|
Product Name |
High Feed Face Milling Cutter TFBL Type |
|
Material |
Hard Alloy |
|
Model Number |
TFBL06R, TFBL09R, TFBL13R |
|
Holder Diameter (mm) |
40mm, 50mm, 63mm, 80mm, 100mm, 125mm, 160mm, 200mm |
|
Over Length (mm) |
40mm, 50mm, 60mm |
|
Tolerance grade of holding handle |
G6 |
|
Thickness of feeler gauge for testing |
0.01mm |
|
Precision of insert's pocket |
0.02mm |
|
Application area |
Copying, Facing, shouldering, Slotting, helical & ramping |
|
Features |
corrosion resistance, longer life, higher cost performance |

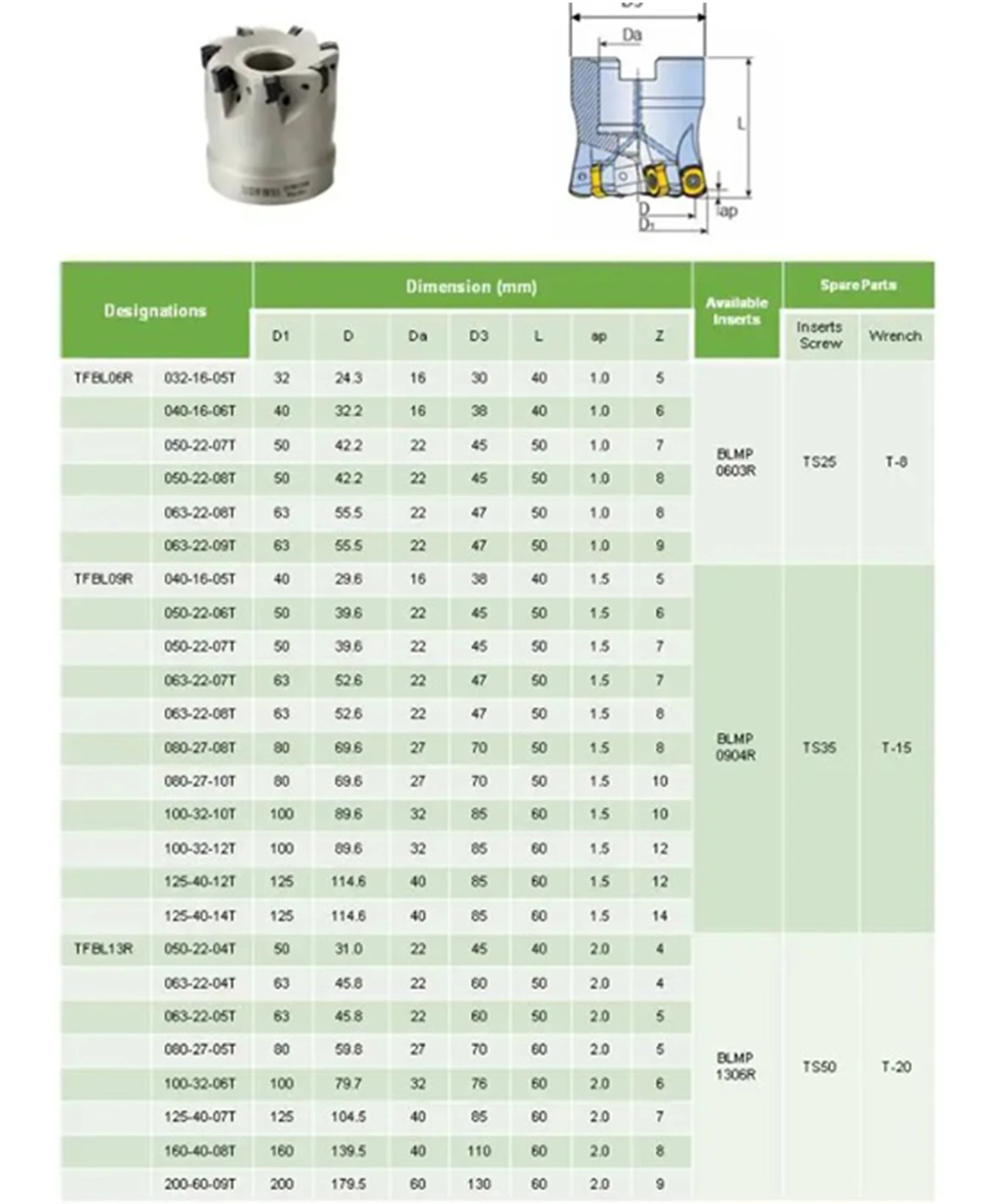

Product Specification:

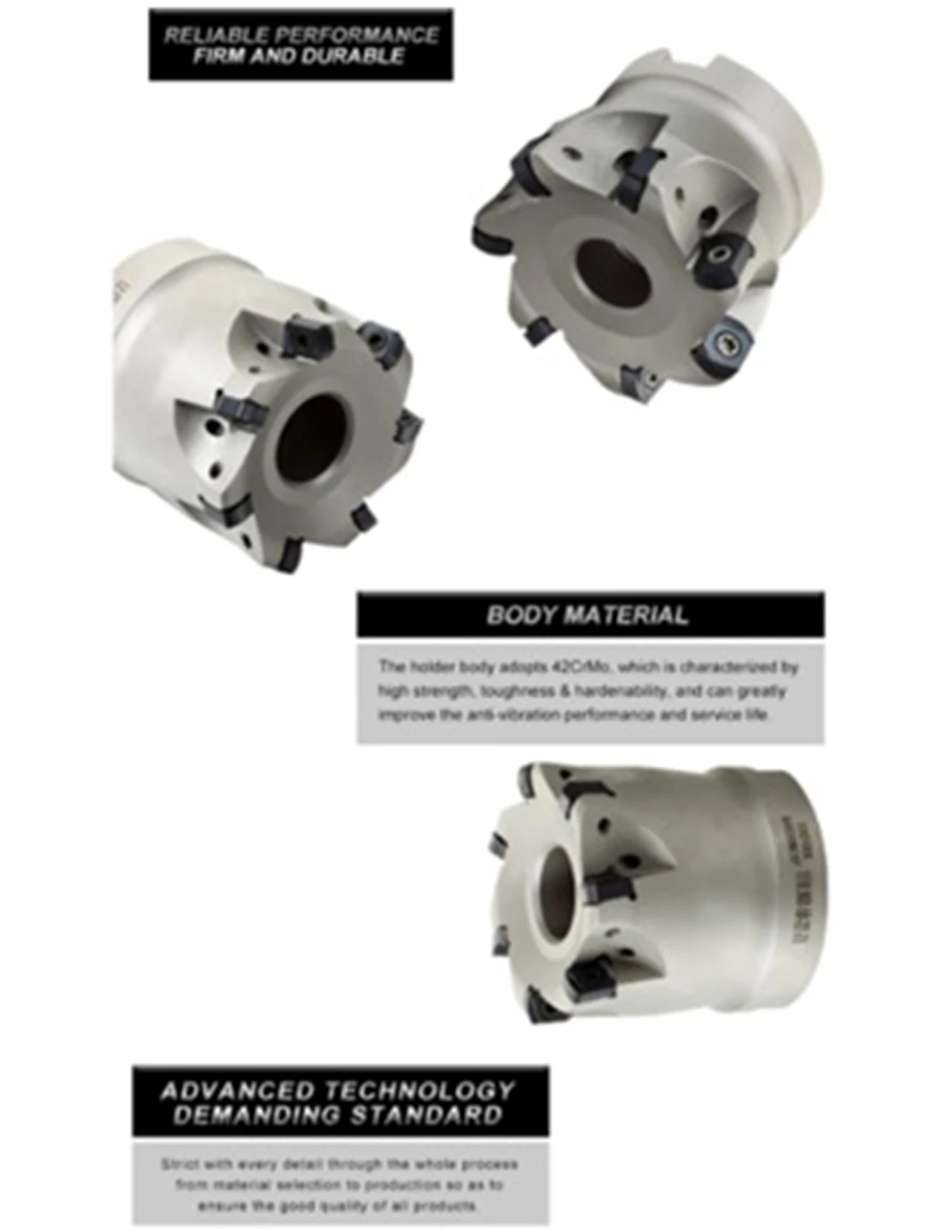

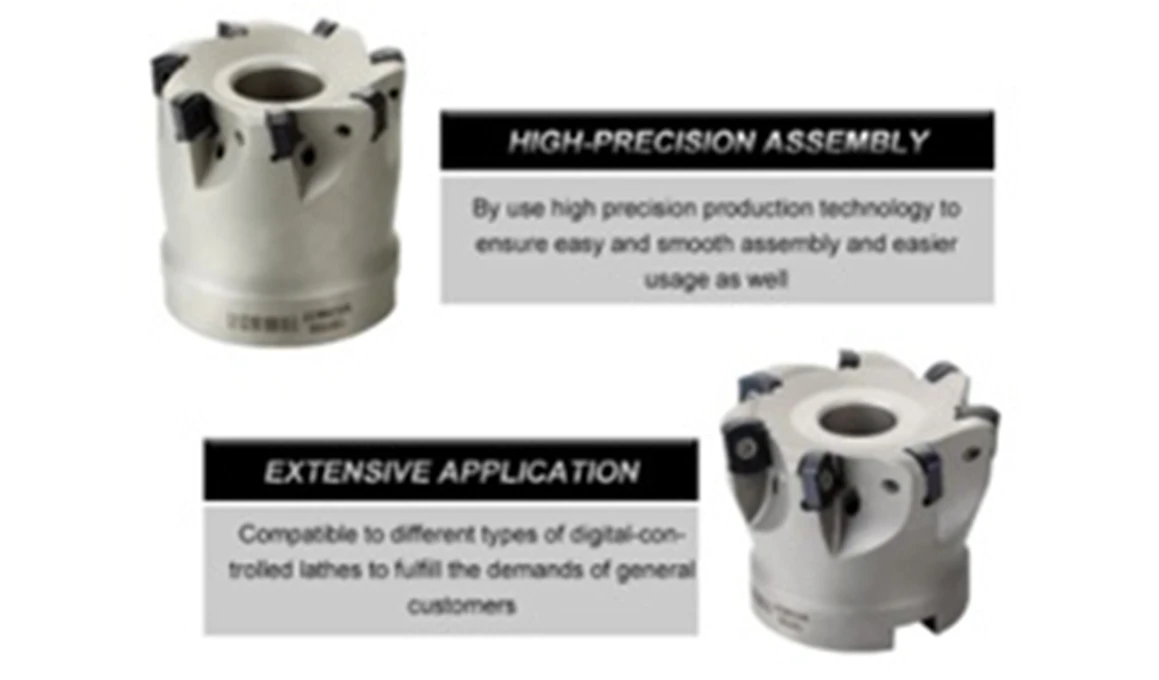

Product Display:
