Spiral Milling Cutter Holder
This Spiral Milling Cutter is mainly used for machining plane, step, groove, forming surface and cutting workpiece on milling machine.
This Spiral Milling Cutter is mainly used for machining plane, step, groove, forming surface and cutting workpiece on milling machine.
Product Introduction
This Spiral Milling Cutter is mainly used for machining plane, step, groove, forming surface and cutting workpiece on milling machine. The product has few teeth, high tooth strength, large chip space, suitable for rough machining. Our Spiral Milling Cutter has high hardness and wear resistance, can be used for a long time. This product can be supplied in different specification to meet different requirements. Please check the details carefully and let us know your requirements before purchasing!
Advantages
The Spiral Milling Cutter is created for milling of steel, alloy steel, and cast iron at high cutting depth. Coarse and differential pitch minimize the vibration. And the holistic structure with good rigidity and interchangeable heads achieves high economic efficiency. The application of this product is economic, can achieve high productive efficiency. We can provide you with this product in a large quantity at wholesale price. And if you buy our products, we will give you our best after-sales service!

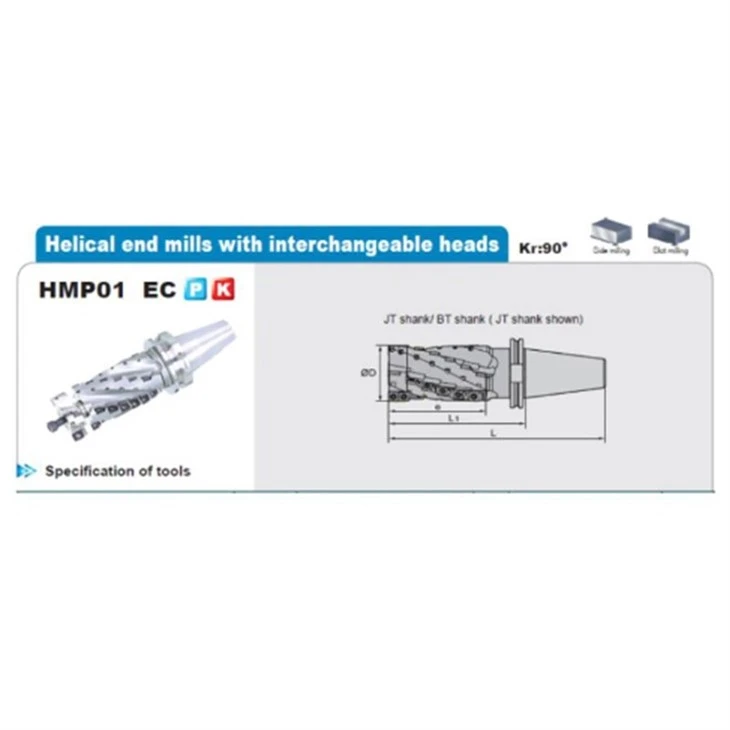

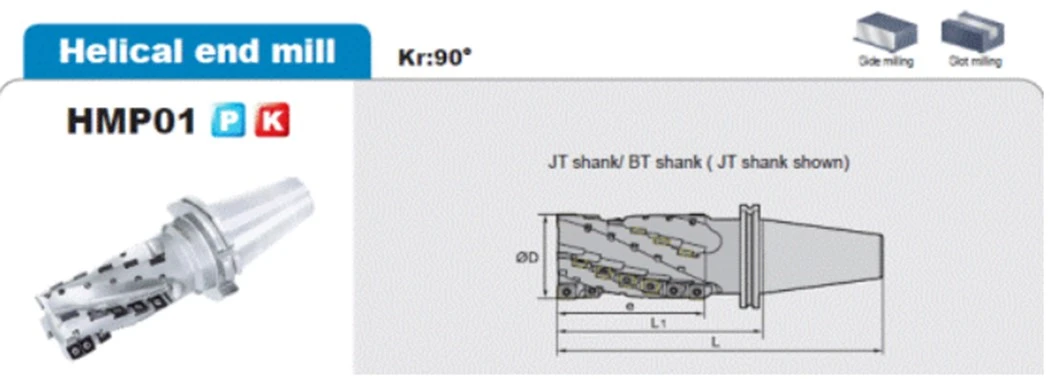

Specification:
|
Type |
ØD |
E |
L1 |
L |
Flute |
APKT |
SPMT |
|
HMP01-050×84-JT50-SP12-04 |
50 |
84 |
145 |
246.75 |
4 |
2 |
16 |
|
HMP01-063×74-JT50-SP12-04 |
63 |
74 |
135 |
236.75 |
4 |
2 |
14 |
|
HMP01-063×104-JT50-SP12-04 |
63 |
104 |
165 |
266.75 |
4 |
2 |
20 |
|
HMP01-063×134-JT50-SP12-04 |
63 |
134 |
195 |
296.75 |
4 |
2 |
26 |
|
HMP01-080×104-JT50-SP12-04 |
80 |
104 |
165 |
266.75 |
4 |
2 |
20 |
|
HMP01-080×144-JT50-SP12-04 |
80 |
144 |
205 |
306.75 |
4 |
2 |
28 |
|
HMP01-050×84-BT50-SP12-04 |
50 |
84 |
145 |
246.8 |
4 |
2 |
16 |
|
HMP01-063×74-BT50-SP12-04 |
63 |
74 |
135 |
236.8 |
4 |
2 |
14 |
|
HMP01-063×104-BT50-SP12-04 |
63 |
104 |
165 |
266.8 |
4 |
2 |
20 |
|
HMP01-063×134-BT50-SP12-04 |
63 |
134 |
195 |
296.8 |
4 |
2 |
26 |
|
HMP01-080×104-BT50-SP12-04 |
80 |
104 |
165 |
266.8 |
4 |
2 |
20 |
|
HMP01-080×144-BT50-SP12-04 |
80 |
144 |
205 |
306.8 |
4 |
2 |
28 |
Parameters:
|
Material |
HB |
Grade |
Cutting Speed |
Feed Speed |
Operation |
|
Low-Carbon Steel、 |
≤180 |
YBM253 YBG302 |
80(60-90) |
0.25(0.1-0.35) |
Slot Milling |
|
90(70-120) |
0.3(0.15-0.4) |
Square Shoulder Milling |
|||
|
90(70-120) |
0.3(0.15-0.4) |
Narrow Shoulder Milling |
|||
|
High-Carbon Steel、 |
180-280 |
YBM253 YBG302 |
70(60-100) |
0.2(0.1-0.35) |
Slot Milling |
|
80(60-120) |
0.25(0.15-0.35) |
Square Shoulder Milling |
|||
|
90(70-120) |
0.25(0.15-0.35) |
Narrow Shoulder Milling |
|||
|
Alloy Tool Steel |
280-350 |
YBM253 YBG302 |
50(40-80) |
0.15(0.08-0.25) |
Slot Milling |
|
60(50-100) |
0.2(0.1-0.35) |
Square Shoulder Milling |
|||
|
70(50-100) |
0.2(0.1-0.35) |
Narrow Shoulder Milling |
|||
|
Cast Iron |
180-250 |
YBM253 YBG302 |
70(50-100) |
0.2(0.1-0.35) |
Slot Milling |
|
80(60-120) |
0.25(0.15-0.35) |
Square Shoulder Milling |
|||
|
90(80-120) |
0.25(0.15-0.35) |
Narrow Shoulder Milling |
Applications:
1.Face Milling: Spiral milling cutter holders are widely used for face milling operations. Face milling is a machining process in which a milling cutter with multiple inserts (usually made of carbide) removes material from the workpiece surface. Spiral milling cutters provide excellent surface finish and are suitable for facing large flat surfaces on workpieces.
2.Shoulder Milling: Spiral milling cutters can be used for shoulder milling, where the cutter removes material from the shoulder of a workpiece. This operation is common in the production of components with precise width and depth requirements, such as automotive parts and aerospace components.
3.Contour Milling: Spiral milling cutter holders can be used for contour milling applications, where complex shapes and contours need to be machined on the workpiece. The versatility of indexable inserts allows for efficient machining of intricate profiles and shapes.
4.Slotting: Spiral milling cutters are capable of slotting operations, where they create narrow and deep cuts in the workpiece. This is commonly used in the production of keyways, splines, and other internal features in components.
5.Roughing Operations: Spiral milling cutter holders are suitable for roughing operations, where material needs to be removed quickly and efficiently. The indexable inserts on the cutter can withstand heavy cutting forces, making them ideal for roughing applications in various industries.
6.High-Speed Machining (HSM): Spiral milling cutters, especially those designed for high-speed machining, are capable of operating at significantly higher speeds and feeds. High-speed machining techniques are used to increase productivity, reduce cycle times, and improve surface finish.
7.Hard Material Machining: Spiral milling cutter holders equipped with specialized inserts (such as those with PCD or CBN coatings) can be used for machining hard and abrasive materials like hardened steels, cast iron, and superalloys. These inserts offer excellent wear resistance and extend tool life in challenging machining applications.
8.Multi-Axis Machining: Spiral milling cutters are suitable for multi-axis machining operations, where the tool needs to approach the workpiece from various angles. They are often used in CNC machining centers with multi-axis capabilities to create complex geometries.
