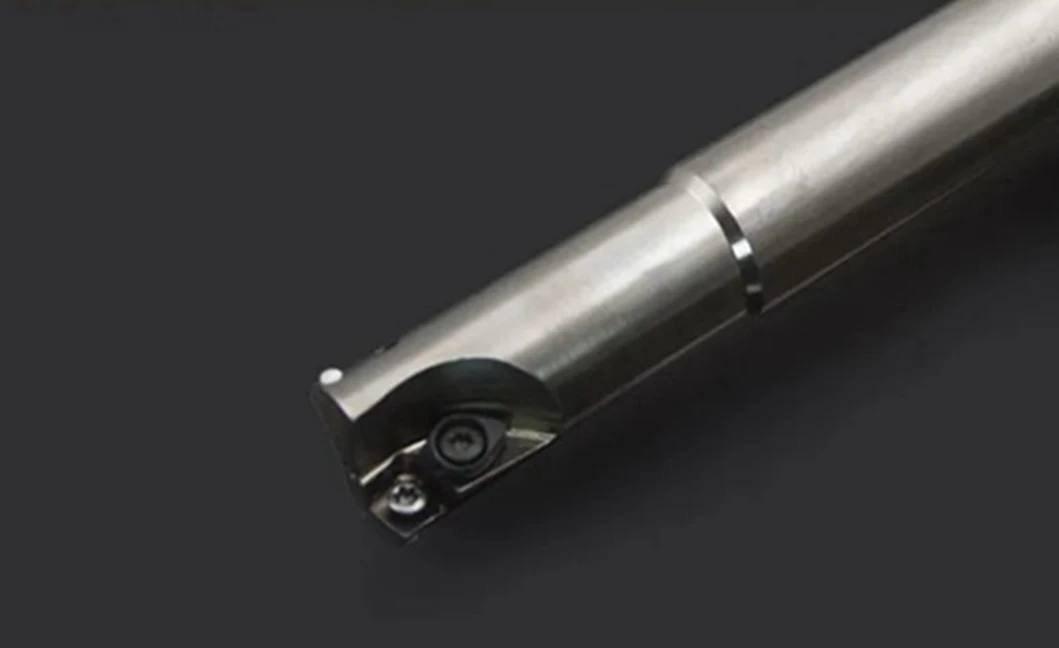

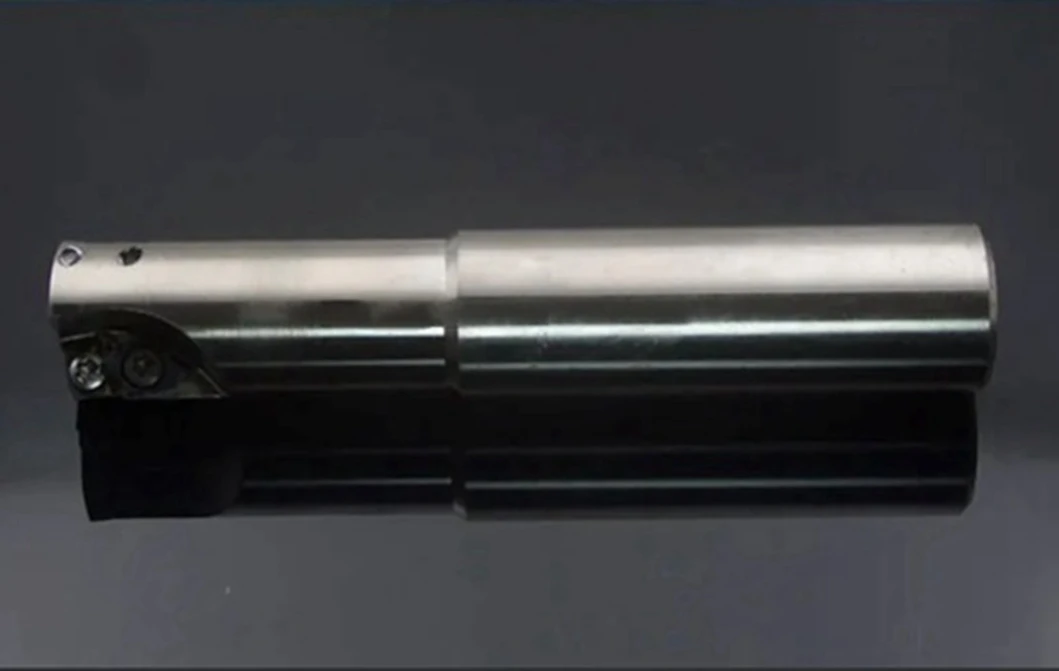

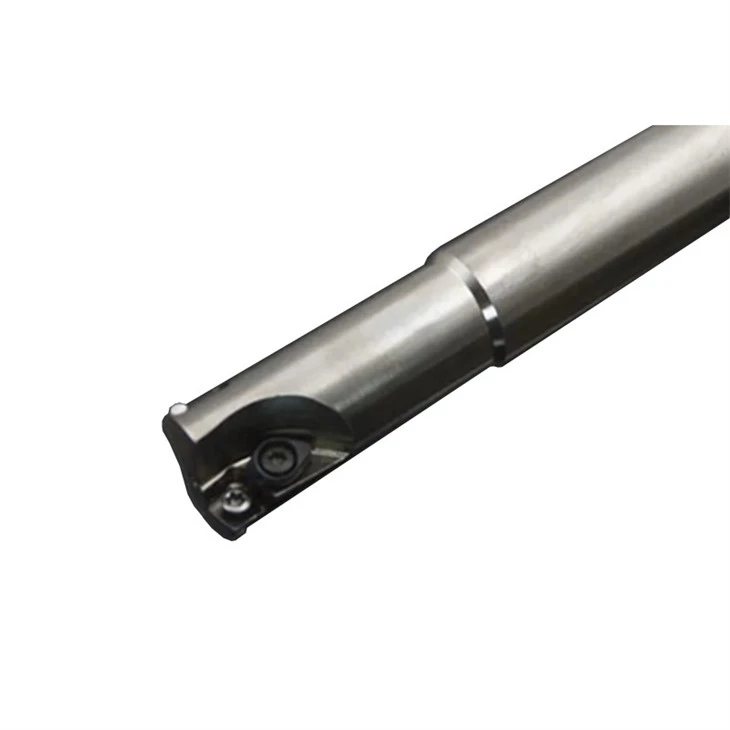

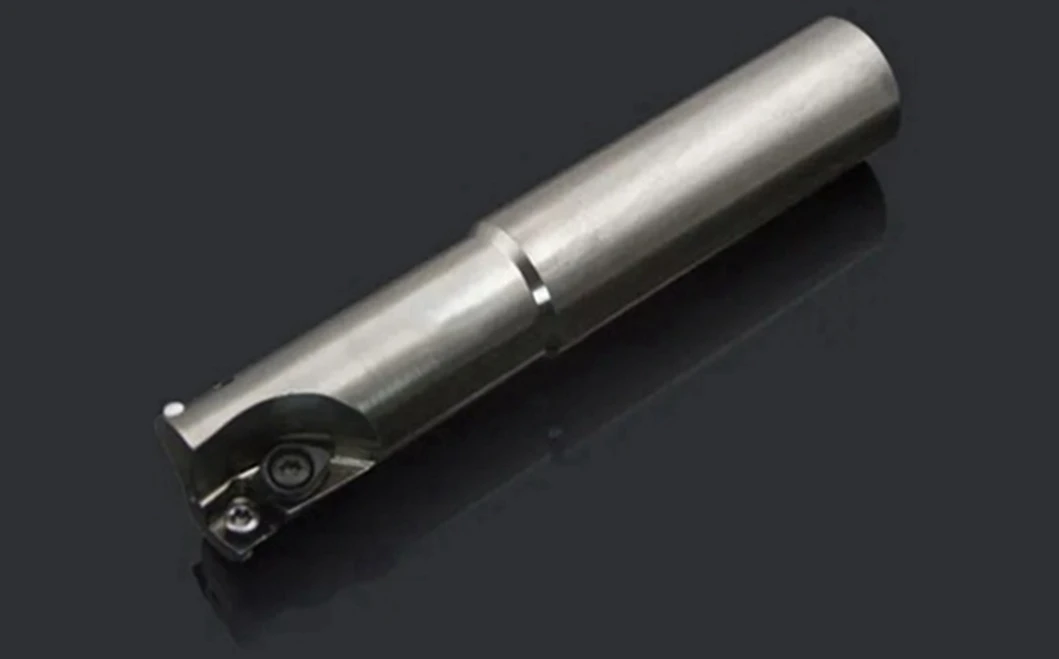

High Speed Milling Cutter Holder

Product name: high speed milling cutter tool holder

Diameter:50mm

Overall Length:140mm

Material:42CrMo

Coating: Nickel or black

Hardness: HRC40-45

Tooth:2

Adapter: Z

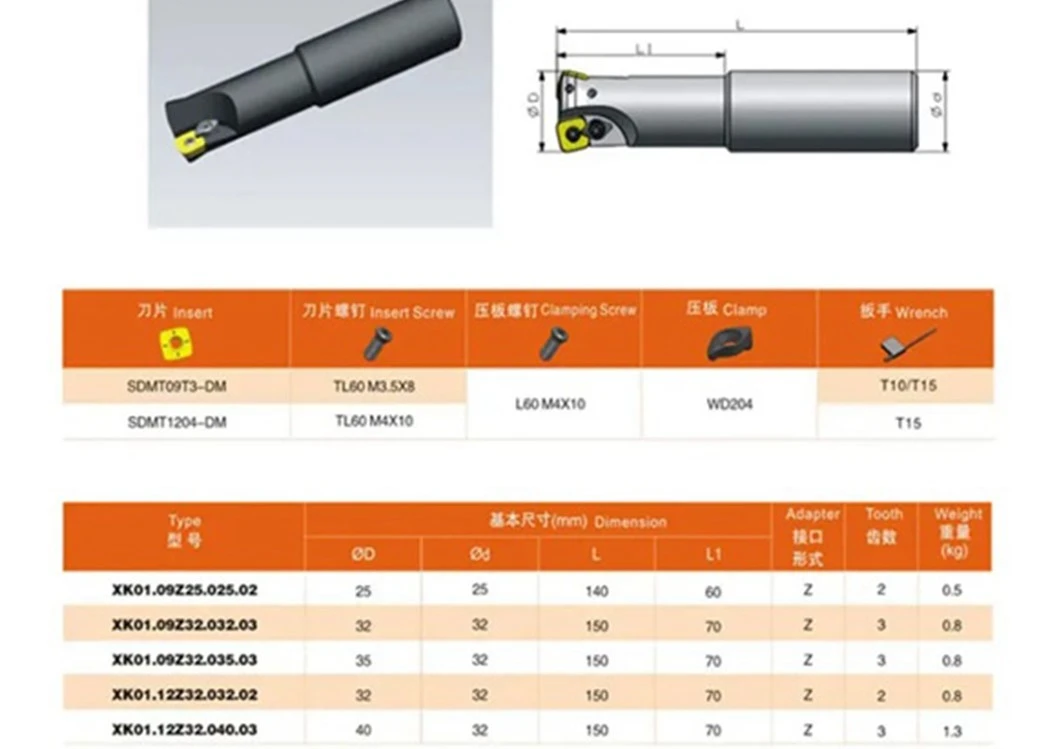

Applicable insert: SDMT09T3-DM, SDMT1204-DM

Clamp: WD204

High-speed milling cutter tool holders are specifically designed to withstand the high rotational speeds and cutting forces encountered during high-speed machining operations. These holders offer various features to ensure precision, stability, and efficiency in high-speed milling. Here are some key features of high-speed milling cutter tool holders:

1.High-Quality Materials: High-speed milling tool holders are typically made from high-quality materials such as hardened steel, carbide, or high-speed steel (HSS) to provide excellent durability and resistance to wear.

2.Balancing: High-speed tool holders are precisely balanced to minimize vibrations and ensure smooth operation at high speeds. Proper balancing is crucial to prevent chatter and maintain cutting accuracy.

3.Runout Accuracy: These holders offer exceptional runout accuracy, minimizing eccentricity or wobbling of the tool. Low runout ensures precise and consistent cutting performance.

4.Coolant Delivery: Some high-speed milling tool holders are designed with internal channels for efficient coolant delivery directly to the cutting edge. Proper cooling is essential to dissipate heat and extend tool life during high-speed machining.

5.Taper Design: High-speed tool holders often feature advanced taper designs, such as HSK (Hohl-Schaft-Kegel or Hallow Shank Taper), which provide enhanced rigidity and accuracy compared to traditional tapers like CAT or BT.

6.Clamping Mechanism: These holders employ advanced clamping mechanisms, such as hydraulic or shrink-fit systems, to securely hold the tool in place. Hydraulic systems provide high clamping forces with uniform pressure distribution, ensuring excellent stability during high-speed cutting.

7.Thermal Stability: High-speed milling tool holders are engineered to withstand thermal expansion and maintain dimensional stability even at elevated temperatures. Thermal stability is crucial for maintaining precision during prolonged machining operations.

8.Anti-Vibration Features: Some holders incorporate anti-vibration features, such as dampening materials or tuned mass dampers, to absorb vibrations generated during high-speed cutting. These features enhance surface finish and tool life.

9.Modular Systems: Modular high-speed milling tool holders allow for quick and easy tool changes. Modular systems enable users to switch between different cutting tools without changing the entire holder, improving operational efficiency.

10.Coating: Some holders come with special coatings, such as titanium nitride (TiN) or diamond-like carbon (DLC), to reduce friction, increase wear resistance, and enhance tool life.

When selecting a high-speed milling cutter tool holder, consider these features to ensure optimal performance and longevity, especially when dealing with demanding high-speed machining applications. It's essential to follow the manufacturer's recommendations and guidelines for proper usage and maintenance to maximize the tool holder's effectiveness.
