Deep Slot Milling Cutter
Type: Flat End Mills
End Cut Type: Square End
Hardness:50/60/65
Label/Laser Tag: Customized
Basic Info.

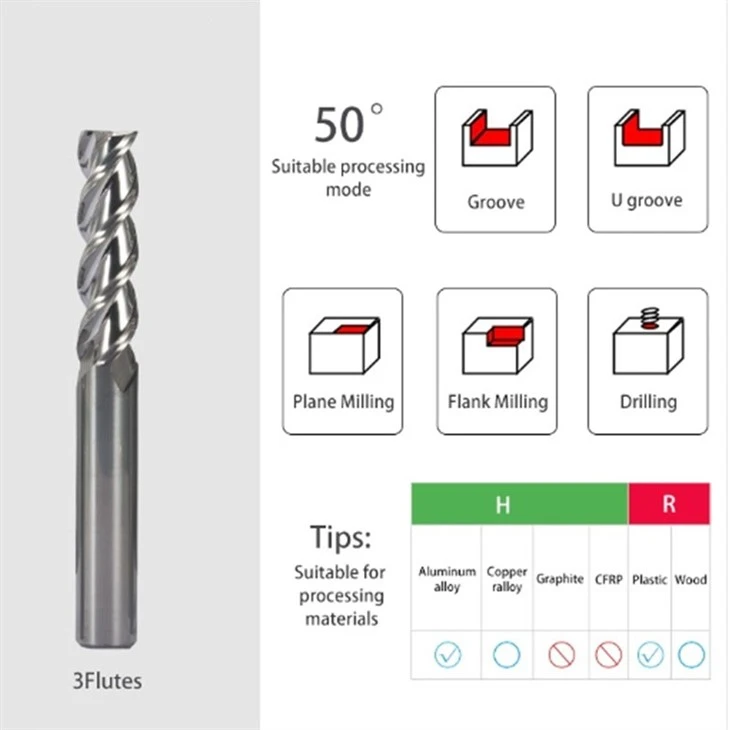

Product Name: HRC50/60/65 Tungsten Steel Tool CNC Machines Tools for Lathe 2/3/4 Flutes Carbide Mill
Model NO.2F/3F/4F End Mill
F End Mill
Material: Carbide
Type: Flat End Mills
End Cut Type: Square End
Hardness:50/60/65
Label/Laser Tag: Customized
Other Size: Customized
Flutes:2/3/4
Standard Size: 0.2-20mm
Diameter:1mm-20mm
Overall Length:50mm-150mm
Transport Package: Hard Carton Box
Specification: 2F/3F/4F End Mill
Trademark: CQ CUTOOL
Origin: China
Tooth Form: Spiral Tooth
Structure: Indexable Type
Specifications:
Material: Tungsten Carbide
End Cut Type: Square End
Hardness: HRC50/60/65
Number of Flutes: 2/3/4
Measurement System: Metric(Inch sizes need customization)
Overall Length: 50-150mm
Cutting Diameter: 1-20mm
|
|
Square |
Square(ALU) |
Ball Nose |
Corner Radius |
|
Flutes |
February 4th | February 3rd | February 4th |
4 |
|
Helix Angle |
35/35 |
45/55 |
35/35 |
35 |
|
HRC45 |
HRC55 |
HRC60 |
HRC65 |
|
|
Raw material |
YG10X |
ZK30UF |
ZK40SF |
GU25UF |
|
Coating color |
Black |
Copper |
Black-Nano |
Blue-Nano |
|
Coating composition |
AlTiN |
TiSiN |
AlTiSiN |
AlTiSiN |
|
Coating advantage |
High aluminum content provides excellent hot hardness and oxidation resistance |
Containing silica, very high surface hardness and high thermal resistance |
Use nano-tech, the hardness and thermal stability are up to 4000HV and 1200°C , respectively |
Use nano-tech, the hardness and thermal stability are up to 4000HV and 1200°C , respectively |
|
Suitable for |
Carbon Steel |
Carbon Steel |
Carbon Steel |
Carbon Steel |
|
Alloy Steel |
Alloy Steel |
Alloy Steel |
Alloy Steel |
|
|
Cast Iron |
Cast Iron |
Cast Iron |
Cast Iron |
|
|
Aluminum Alloy |
Dead-Hard Steel |
Dead-Hard Steel |
Dead-Hard Steel |
|
|
Copper Alloy |
Aluminum Alloy |
Stainless Steel |
Stainless Steel |
|
|
Copper Alloy |
Aluminum Alloy |
Aluminum Alloy |
||
|
Copper Alloy |
Copper Alloy |
Speed Date
Note: the above table is the standard value of milling cutter side milling. When the cutter is used to process keyway, the feed speed is 50% ~ 60% of the above table, and the rotation speed is 50% ~ 70% of the above table. when the rigidity of the machine tool and the workpiece is relatively poor, vibration and abnormal sound will be produced. At this time, the speed and feed should be reduced in the same proportion, AP.Ae When the value is small, it can be increased in the same proportion. D is the diameter of milling cutter.
Pay Attention
In order to get good cutting performance and service life, it is necessary to use high precision and high rigidity tool holder.
1. Before using the tool, please measure the tool deflection. When the tool deflection accuracy exceeds 0.01mm, the feed speed or cutting amount will be increased.
2. The shorter the tool extends out of the chuck, the better. When the tool extends out for a long time, please reduce the speed, feed speed or cutting amount.
3. In case of abnormal movement or sound during cutting, please reduce the spindle speed and cutting amount until the situation are improved.
4. Steel cooling is a good way of spraying or air injection to make high titanium aluminum perform very well, and no water-soluble cutting fluid is recommended for stainless steel, titanium alloy or heat-resistant alloy.
5. The cutting mode depends on the influence of workpiece, machine and software.
The above data are for reference only. When the cutting condition is stable, increase the feed speed by 30% - 50%.
