Finishing End Mills

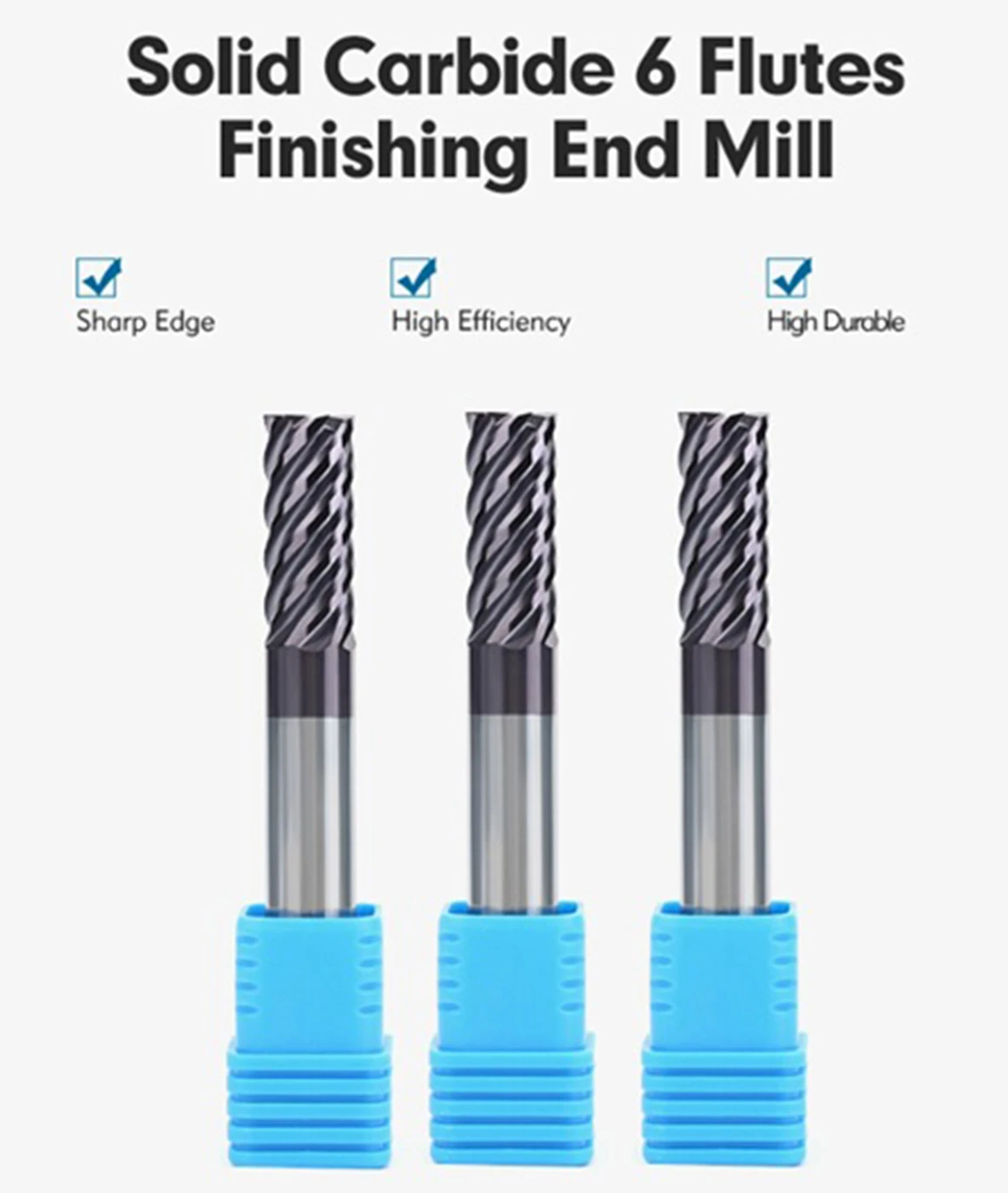

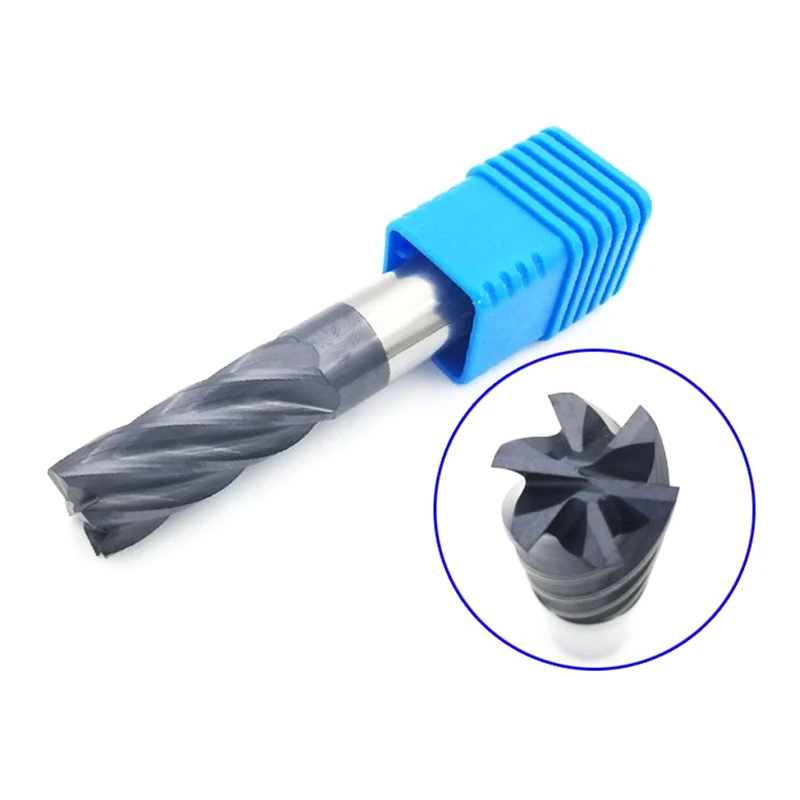

Product Name: 6 Flute Solid Carbide Finishing End Mills
Model Number: FM-450/550
6 Flute, for finish processing, AlTiN or TiAlN coated

Product Name: 6 Flute Solid Carbide Finishing End Mills

Model Number: FM-450/550

Product Parameters:

1. Brand name: WAT, OEM

2. Place of origin: Guangdong of China

3. Raw material: 10X from ZCCT Carbide and WF25 from Taiwan CB carbide

4. Grain Size: Micro grain 0.6μ

5. Type: Square, Flat, Finishing end mills

6. Flute: 6 Flute

7. Helix angle: 35°

8. Diameter: 4mm-20mm

9. Overall Length: 50-100mm

10. Coating/Coverage: AlTiN coating

11. Cobalt: 10%

12. HRC: for 45HRC to 55HRC work material

13. Controlling mode: Milling Machines

14. Work material: Copper, Alloy steel, Tool steel, Carbon steel, Cast Iron, Mold steel, Stainless steel

Made of high hardness raw carbide material, high durable and strength. 6 flutes are special for metal finish milling, surface will be very smooth after processing, also it can reduce the times of tool changes and shaking in the processing, save production time and improve efficiency.

1.Smooth Surface Finish: Finishing end mills are specifically engineered to provide a smooth surface finish on the workpiece. This is crucial in applications where the appearance and texture of the final product are important, such as in the aerospace, automotive, and mold-making industries.

2.High Precision: These end mills are designed for precision machining. They can remove material with high accuracy, ensuring that the dimensions of the workpiece meet the required specifications. This is particularly important in industries where tight tolerances are critical.

3.Reduced Tool Marks: Finishing end mills minimize the presence of tool marks on the workpiece. Tool marks can weaken the material and create stress points. By reducing these marks, the overall integrity and strength of the workpiece are preserved.

4.Extended Tool Life: Finishing end mills often come with specialized coatings, such as TiAlN (Titanium Aluminum Nitride) or TiN (Titanium Nitride), which increase the tool's hardness and heat resistance. These coatings reduce friction and wear, leading to a longer tool life. This is especially valuable in high-volume production environments.

5.Increased Productivity: Due to their ability to provide an excellent surface finish in a single pass, finishing end mills can increase productivity by reducing the need for secondary finishing operations. This saves time and labor costs, making the overall manufacturing process more efficient.

6.Versatility: Finishing end mills can be used for a wide range of materials, including metals, plastics, and composites. This versatility makes them valuable in various industries where different materials need to be machined.

7.Optimized Chip Evacuation: The flute geometry of finishing end mills is designed to optimize chip evacuation. Efficient chip removal prevents chip buildup, which can cause poor surface finishes and tool damage.

8.Improved Stability: Finishing end mills are often available in various designs, including square end, ball end, and corner radius. The choice of design depends on the specific application. For instance, ball end mills are suitable for 3D contouring, while square end mills are ideal for creating flat surfaces. This variety allows manufacturers to select the most suitable tool for their specific machining needs, improving stability and overall machining performance.
