End Mills for Stainless Steel

Product Name: Nano Coated End Mills for Stainless Steel

Model NO.：4MUA-H

Overall Length：50~150

Certification:ISO9001

Precision:0.01mm

Suitable for: Machining Stainless Stee

Transport Package: Carton Box

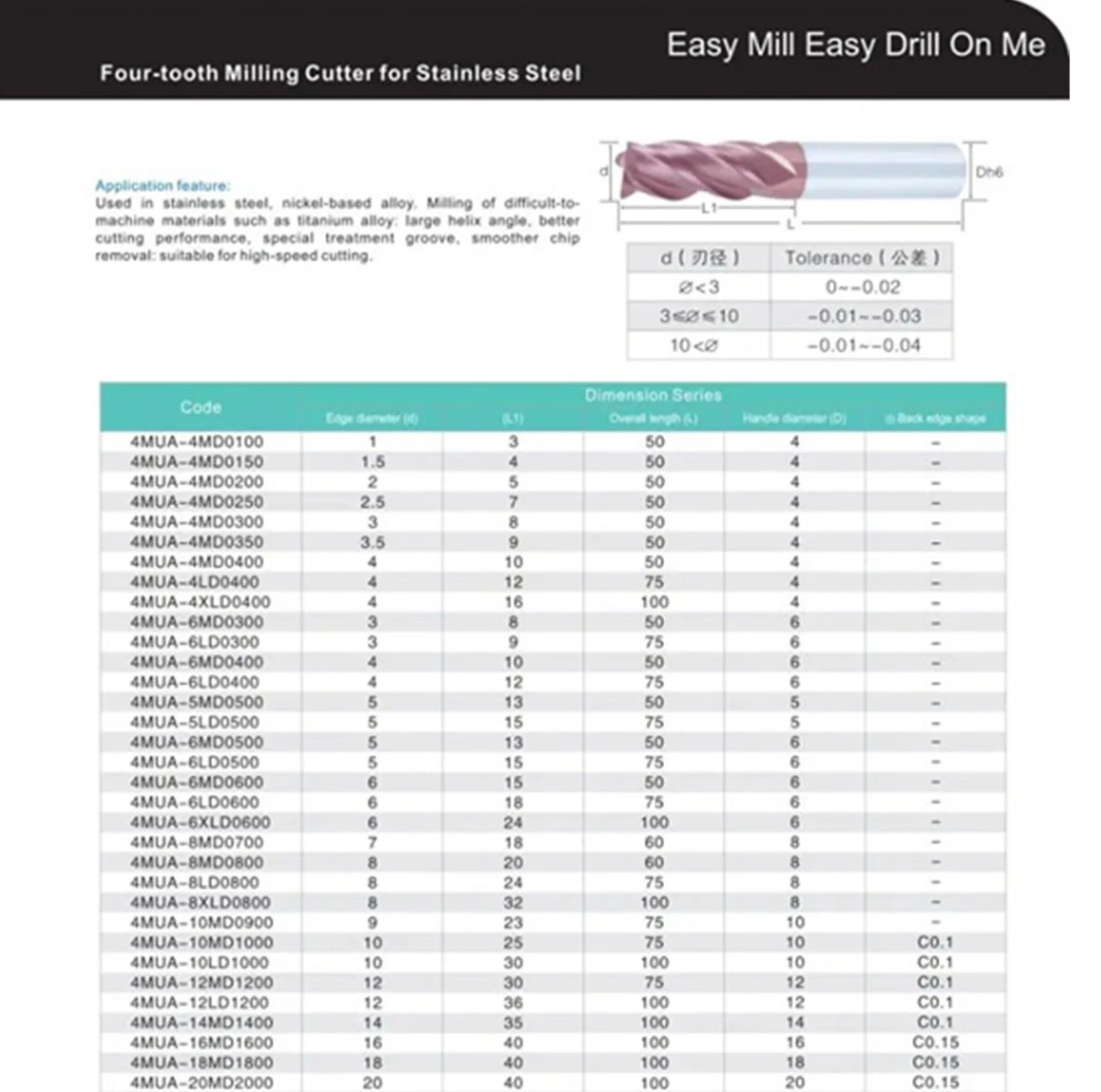

Specification: d1~d32

Trademark: CQ CUTOOL

Origin: China

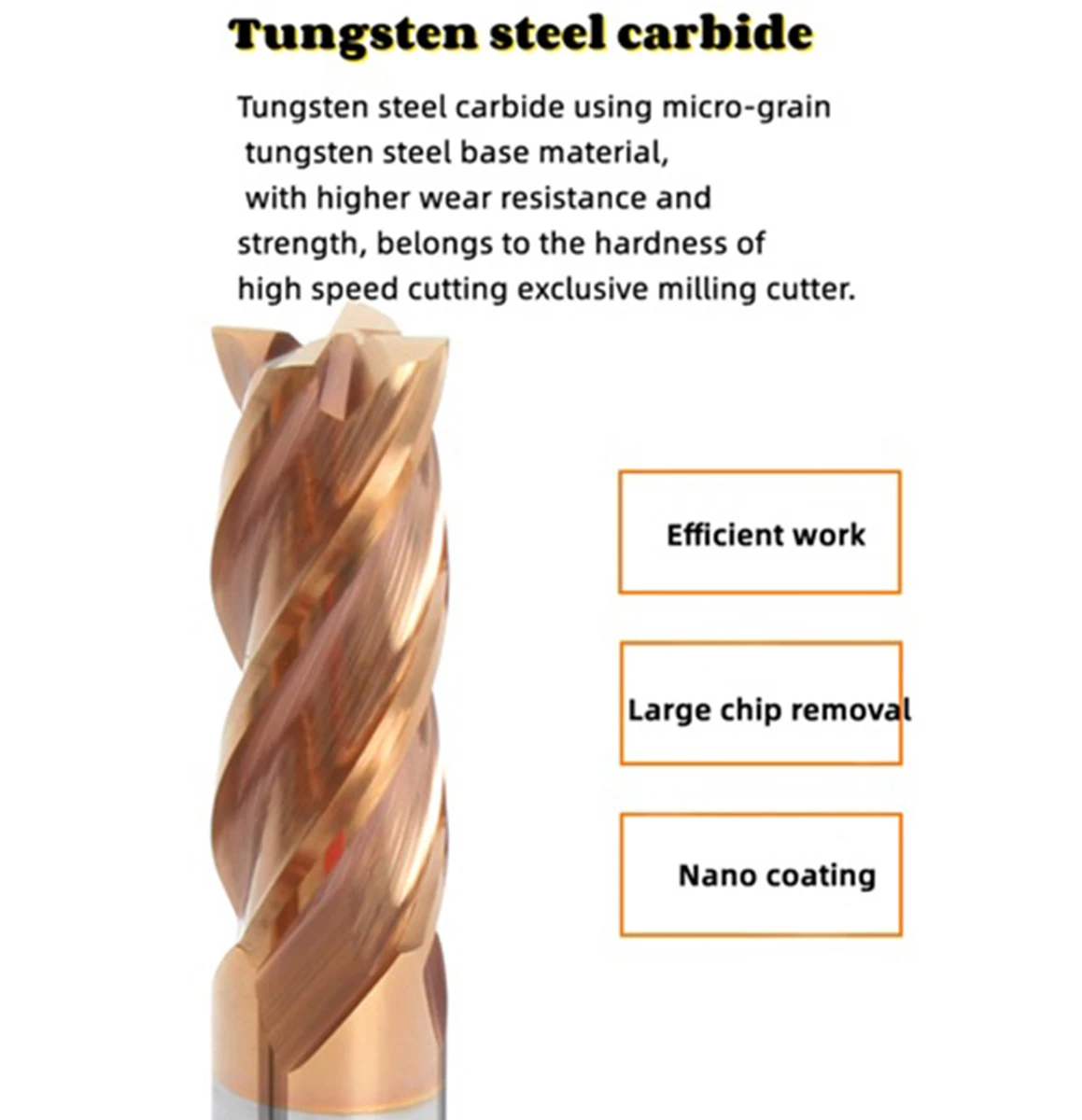

1.Material Composition: End mills for stainless steel should be made from high-speed steel (HSS) or solid carbide. Solid carbide end mills are generally preferred for their durability and heat resistance.

2.Coating: A high-performance coating such as TiAlN (Titanium Aluminum Nitride) or TiCN (Titanium Carbo-Nitride) is essential. These coatings provide heat resistance, reduce friction, and enhance wear resistance, prolonging the tool life.

3.Helix Angle: A higher helix angle (usually 45-60 degrees) helps in efficient chip evacuation and reduces the chances of work hardening. It also aids in enhancing tool rigidity.

4.Flute Design: End mills for stainless steel often have variable flute spacing and variable helix angles. This design helps in breaking up the harmonics, which can cause chatter, and improves overall tool stability.

5.Number of Flutes: Generally, 4-flute end mills are preferred for stainless steel. More flutes provide more cutting edges and can increase the tool life and improve surface finish.

6.Corner Radius or Chamfer: A corner radius or chamfer on the cutting edge reduces the impact load and improves tool life. It also helps in preventing chipping of the cutting edges, especially during heavy cuts.

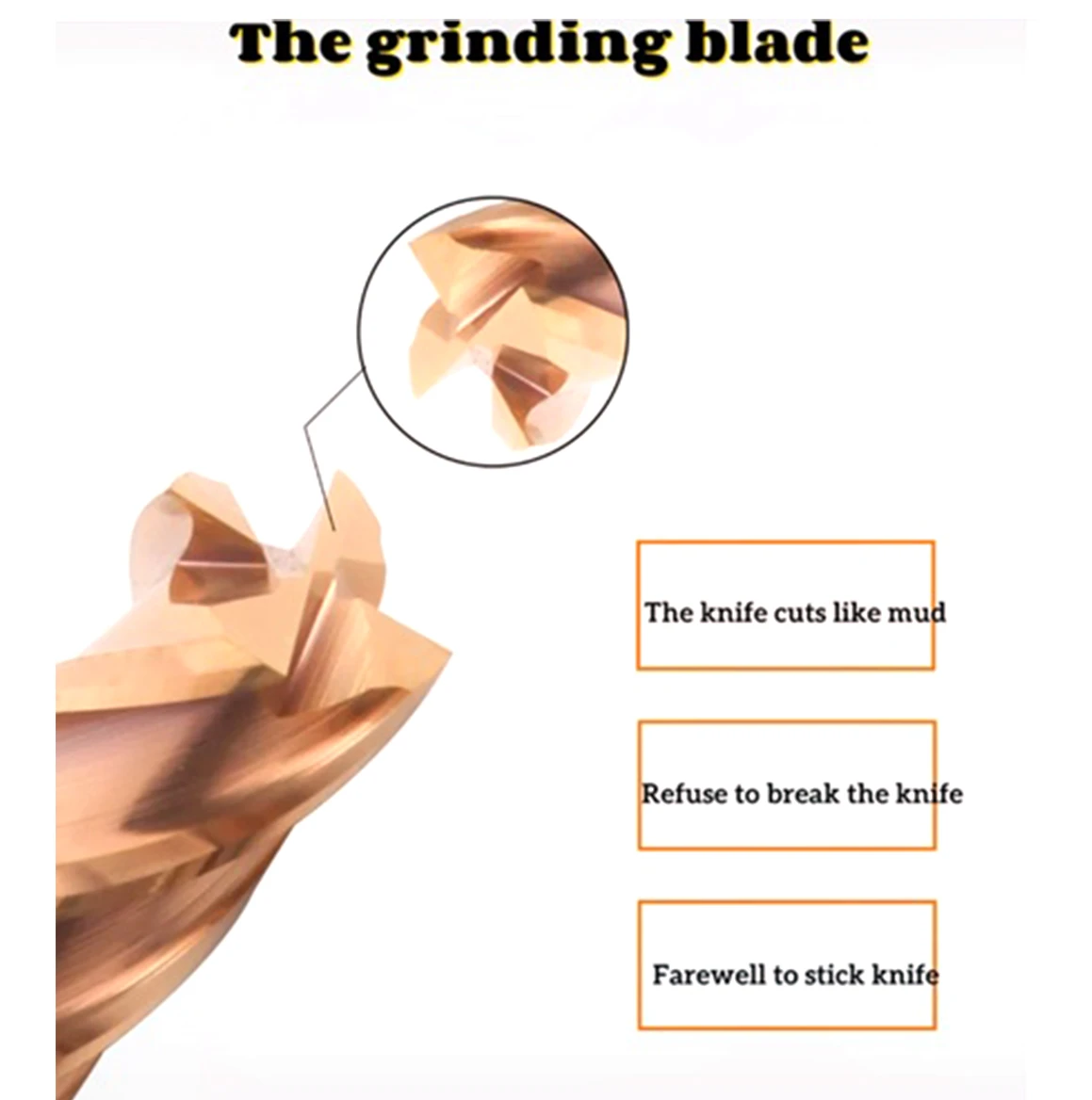

7.Cutting Edge Geometry: Sharp cutting edges are crucial for effective cutting, but they should also be strong enough to withstand the cutting forces. A combination of sharpness and strength is essential for the cutting-edge geometry.

8.Coolant Holes: For high-speed machining of stainless steel, end mills with internal coolant channels can be beneficial. Proper cooling helps in reducing heat buildup and prolongs tool life.

9.Rake Angle and Clearance Angle: The rake angle affects the sharpness of the cutting edge, and the clearance angle prevents rubbing against the workpiece. These angles should be optimized for stainless steel cutting.

10.Stability and Rigidity: The end mill should be stable and rigid to minimize vibrations and chatter during the cutting process. This stability is crucial for achieving accurate and smooth cuts in stainless steel.
