Surface Milling Cutter
Teeth Shape: coarse teeth
Application: CNC Process
Usage: Cutting Machine
Product Details:
Product Name: High surface hardness the carbide roughing end mill cutters 4 flutes MTS HRC45/55/65 TiSiN coating
Material：Carbide
Coating：AlTiN, TiSiN, AlTiN, TiN, TiAlN, etc.
Place of Origin：Chongqing, China
Brand Name: CQ CUTOOL
Flute:3/4 Flute
HRC:45/55/65 Degree
Machine Type: Milling Machine
Suitable for: Carbon Steel, Cast Iron, Tool Steel, Alloy Steel, etc
Precision: High precision
Teeth Shape: coarse teeth
Application: CNC Process
Usage: Cutting Machine
Controlling Mode: CNC Tooling System
Package Type: one plastic pipe pack one piece, ten per group and carton outside
|
Flute |
3/4 Flute |
|
HRC |
45/55/65 Degree |
|
Machine Type |
Milling Maching |
|
Suitable for |
Carbon Steel, Cast Iron, Tool Steel, Alloy Steel, etc |
|
Precision |
High precision |
|
Teeth Shape |
coarse teeth |
|
Product Keywords |
4flute carbide roughing end mill cutters |
Product Description:
Surface end mill is a type of milling cutter used in industrial milling applications. It has cutting teeth on the end face and along the periphery of the tool, allowing it to remove material from a workpiece by feeding the cutter into the workpiece material. Surface end mills are commonly used in milling operations to produce flat surfaces, contours, and slots.
Product Specifications:
|
HRC |
Grade |
Density |
Hardness |
Co Content |
Grain Size |
Bending Strength |
|
g/cm3 |
HRA |
% |
um |
N/mm2 |
||
|
45 HRC |
YG10X |
14.5 |
91.5 |
10 |
0.8 |
2800 |
|
55 HRC |
ZK30UF |
14.5 |
92 |
10 |
0.6 |
3000 |
|
65 HRC |
GU25UF |
14.5 |
93 |
12 |
0.4 |
4000 |
Excellent Coating
|
Coatings |
Hardness HV |
Thickness um |
Friction Coefficient |
Oxidation Temp |
Color |
|
AlTiN |
3500 |
2.5-3 |
0.3 |
900 |
Black |
|
TiAlN |
2800 |
2.5-3 |
0.3 |
900 |
Violet |
|
TiSiN |
3600 |
3 |
0.45 |
1000 |
Copper |
|
AlTiSiN |
400 |
3 |
0.4 |
1200 |
Blue |
|
TiN |
2500 |
2-3 |
0.5 |
600 |
Gold |

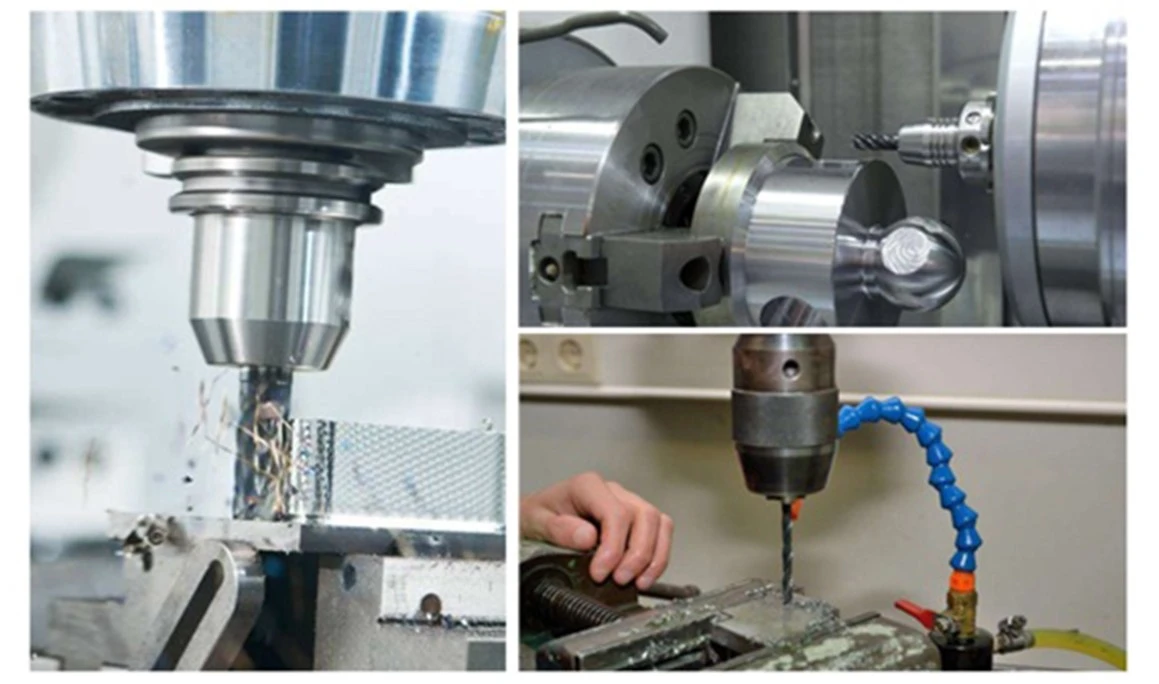

Applications:
1.Flat Surface Machining: Surface end mills are commonly used to create flat surfaces on a workpiece.
2.Contouring: They are effective for machining complex shapes and contours.
3.Slotting: Surface end mills can cut slots of various widths and depths.
4.Roughing and Finishing: Depending on the design and coating, these end mills can be used for roughing or finishing operations.
5.Die and Mold Making: Surface end mills are crucial tools in the production of dies and molds for various industries.
Tips for Using Surface End Mills:
1.Proper Feeds and Speeds: Using the right cutting speeds and feeds is crucial for maximizing tool life and achieving optimal surface finishes.
2.Coolant/Lubrication: Depending on the material being machined, using coolant or lubrication can prevent overheating and extend tool life.
3.Tool Holding: Securely holding the end mill in the machine tool's spindle is vital to prevent vibrations and ensure accuracy in machining.
4.Tool Inspection: Regularly inspect the end mill for wear and damage. Worn-out tools should be replaced to maintain machining quality.
